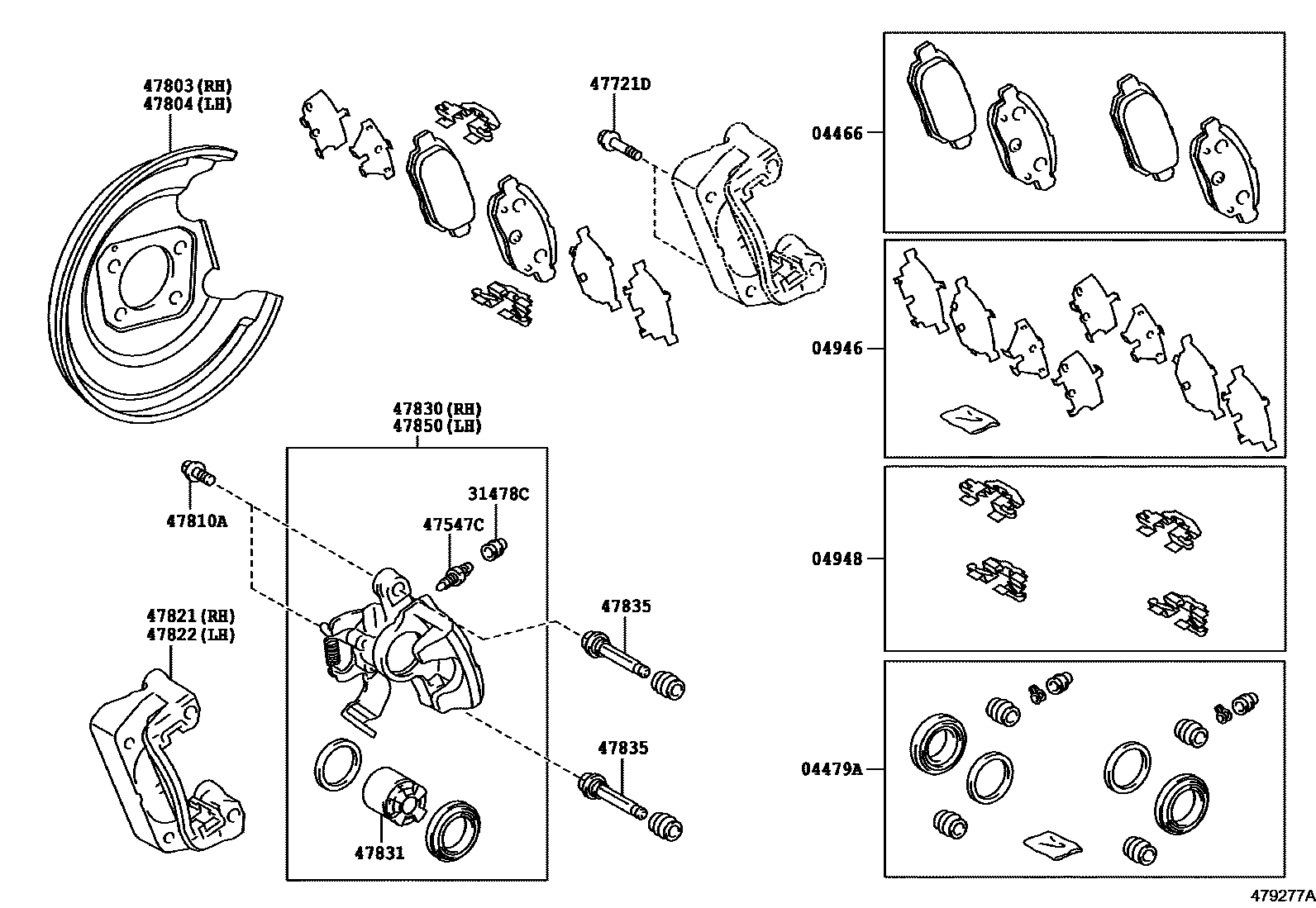

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02310iZRE18#201406-201411

MARK AK NS254

main04466-02320iZRE18#201411-201510

MARK AK NS254

sub04466-02330

main04466-02330iNRE181,ZRE18#,ZWE182201510-201802

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02330iNRE181,ZRE18#,ZWE182201406-201802

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02050iZRE18#201406-201510

main04946-02100iNRE181,ZRE18#,ZWE182201510-201802

04948FITTING KIT, DISC BRAKE, REAR

main04948-02101iNRE181,ZRE18#,ZWE182201406-201802

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-02160iNRE181,ZRE18#,ZWE182201406-201802

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-02160iNRE181,ZRE18#,ZWE182201406-201802

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-C0047iNRE181,ZRE18#,ZWE182201406-201802

*10-1.25PX24-21.5

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-02060iNRE181,ZRE18#,ZWE182201406-201802

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-02060iNRE181,ZRE18#,ZWE182201406-201802

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90016-AA104iNRE181,ZRE18#,ZWE182201406-201802

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-02160iNRE181,ZRE18#,ZWE182201406-201802

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-02160iNRE181,ZRE18#,ZWE182201406-201802

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02160iNRE181,ZRE18#,ZWE182201406-201802

47831PISTON, REAR DISC BRAKE

main47831-02180iNRE181,ZRE18#,ZWE182201406-201802

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-02160iNRE181,ZRE18#,ZWE182201406-201802

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02160iNRE181,ZRE18#,ZWE182201406-201802

16 parts on this diagram · 1 diagram in section
