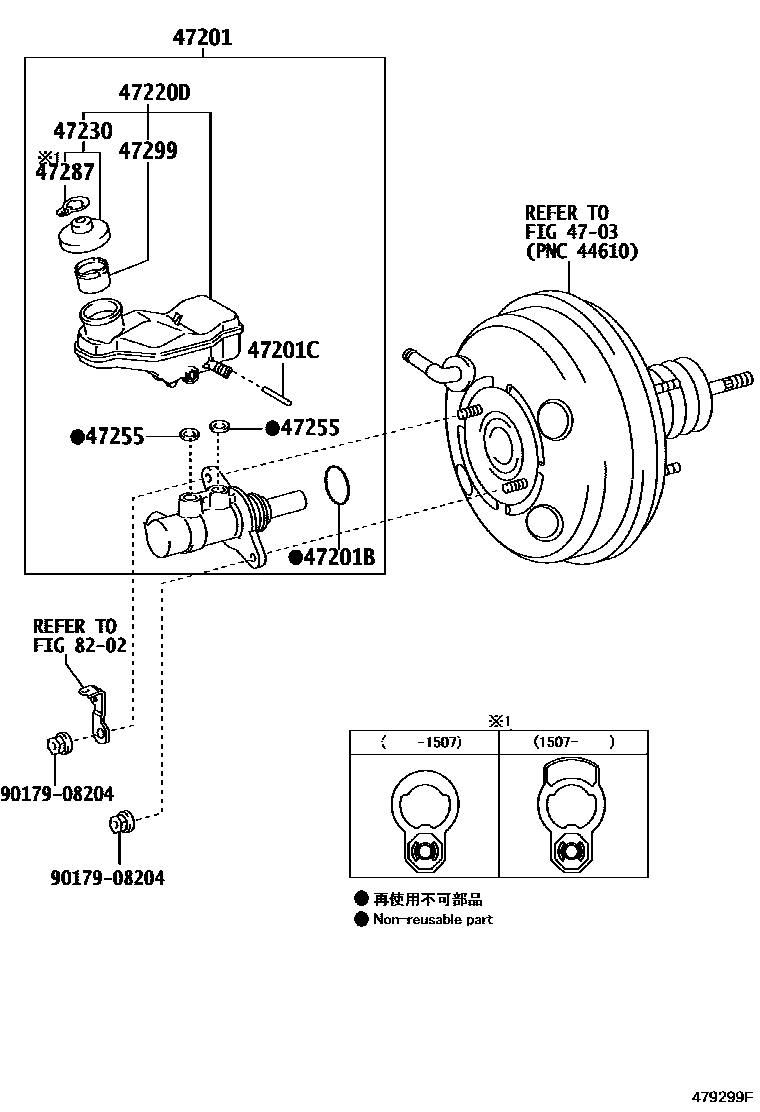

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02820iZRE181..CVT201406

main47201-02830iZRE181..5F201406

main47201-02840iNRE181,ZRE182..CVT201406-201802

main47201-02850iNRE181,ZRE182..6F201406-201703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iNRE181,ZRE18#201406-201802

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNRE181,ZRE18#201406-201802

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-02290iZWE182201512-201703

main47220-02400iNRE181,ZRE18#..CVT201406-201802

main47220-02410iNRE181..6F201406

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02260iZRE18#201406-201507

sub47230-0R030

main47230-0R030iNRE181201507-201802

main47230-47090iZWE182201612-201703

main47230-58010iZWE182201512-201612

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iNRE181,ZRE18#201406-201802

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNRE181201507-201802

main47287-20010iZRE18#201406-201507

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNRE181,ZRE18#201406-201802

8202

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
