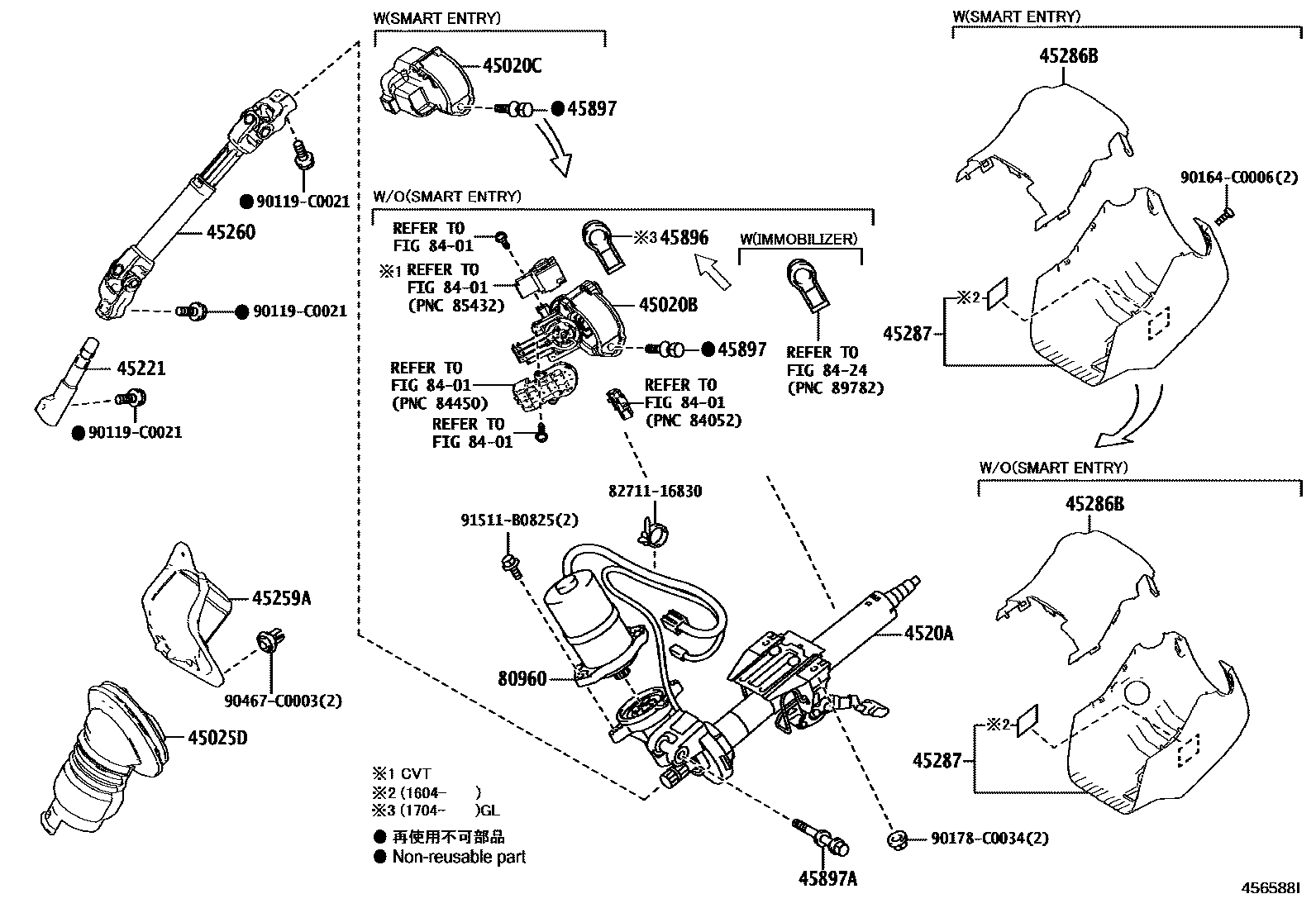

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-02490iNRE181,ZRE181..MTM..(GL,GLI)201406-201907

main45280-02500iNRE181,ZRE181..CVT..(GL,GLI)201406-201907

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-02680iNRE181,ZRE18#..GLXI,PREM201406-201907

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02100iNRE181,ZRE18#,ZWE182201406-201802

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-02320iNRE181..GL,GLI201406

main4520A-02330iNRE181,ZRE181..GLXI201406-201703

main4520A-02350iZRE182201406-201802

main4520A-02360iZWE182201512-201703

45221SHAFT, STEERING INTERMEDIATE

main45221-02170iZRE182201406-201802

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02090iZWE182201406-201802

main45259-02280iZWE182201701-201703

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02260iNRE181,ZRE18#,ZWE182201406-201802

45286BCOVER, STEERING COLUMN, UPR

main45286-02550-C0iNRE181..GL,GLI201406

BLACK,TRIM0#,2#

main45286-02560-C0iZRE182201406-201802

BLACK,TRIM0#,2#

45287COVER, STEERING COLUMN, LWR

main45024-02060-C0iNRE181,ZRE181..GL,GLI201604

BLACK,TRIM0#,2#

main45024-02070-C0iZWE182;NRE181..GLXI201604-201802

BLACK,TRIM0#,2#

main45287-02550-C0iZRE181..GL,GLI201406-201604

BLACK,TRIM0#,2#

main45287-02560-C0iZWE182;ZRE18#..GLXI,PREM201406-201604

BLACK,TRIM0#,2#

45896PLATE, IGNITION SWITCH ATTACHMENT

main81871-0D030iNRE181..GL201704-201907

VFM PACKAGE(*CRC & *SES)

45897BOLT, STEERING LOCK SET

main45897-12020iNRE181,ZRE18#201406-201802

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iNRE181,ZRE18#,ZWE182201511-201802

(J)

main90119-10981iZRE18#201406-201511

main90119-C0427iZRE182201511-201802

(L)

80960MOTOR ASSY, POWER STEERING

main80960-02110iNRE181,ZRE181201406

main80960-02170iNRE181201704

8401

8424

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

90119C0021

main90119-C0021

90164C0006

main90164-C0006

90178C0034

main90178-C0034

90467C0003

main90467-C0003

91511B0825

main91511-B0825

21 parts on this diagram · 3 diagrams in section
