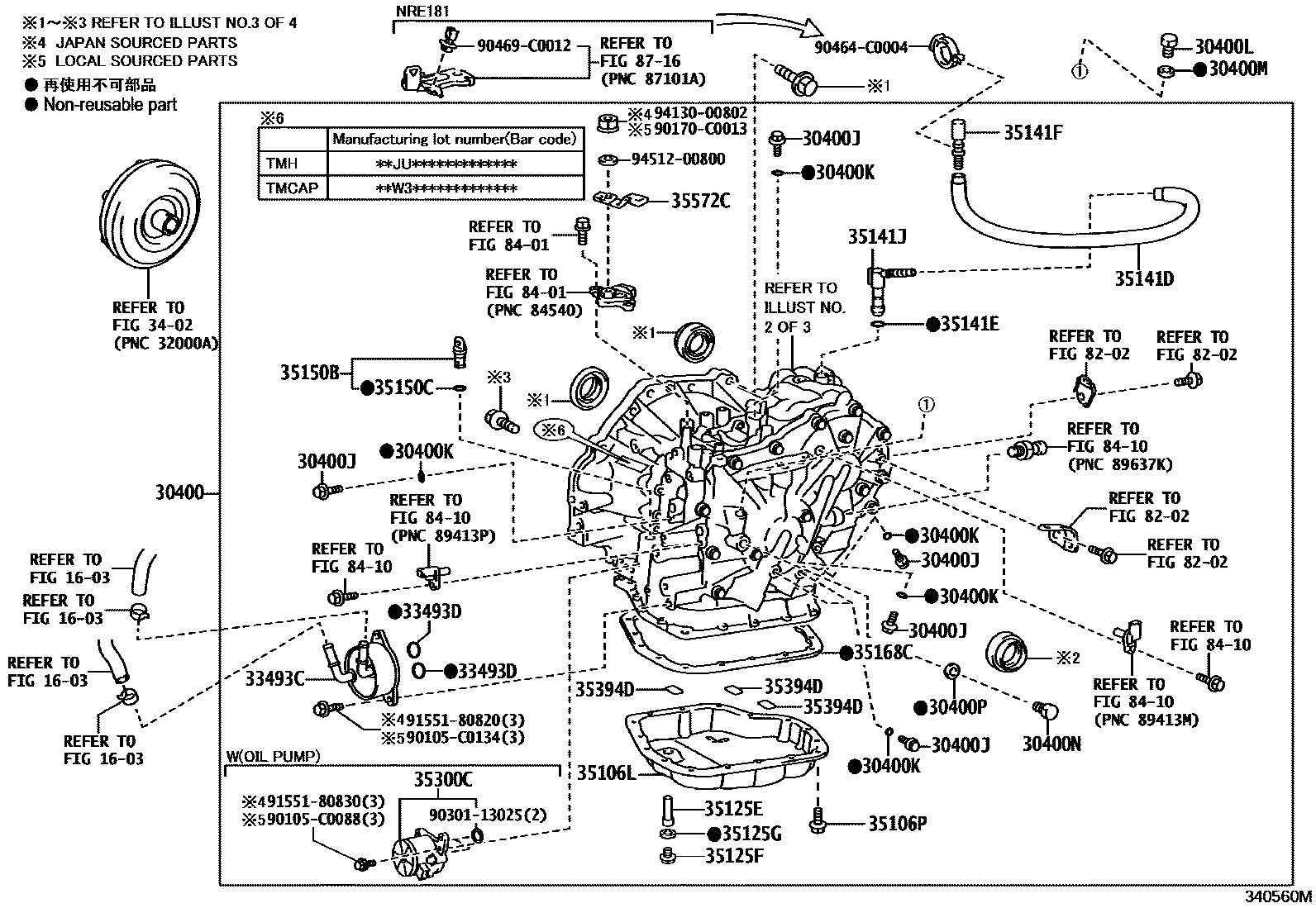

TRANSAXLE ASSY(CVT)

0001 1K313 0002 1K313 0003 1K313 0004 1K313

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-02010iZRE18#..CVT201407-201610

K313,TMCAP:REFER ILLUST.

sub30400-02040

main30400-02030iNRE181..CVT201610-201703

K313,TMCAP:REFER ILLUST.

sub30400-02050

sub82715-02L90

main30400-02040iZRE18#..CVT201610-201802

K313,TMCAP:REFER ILLUST.

sub30400-12520

main30400-12260iZRE182..CVT201406-201610

K313,TMH:REFER TO ILLUST.

main30400-12500iNRE181..CVT201610-201703

K313,TMH:REFER TO ILLUST.

30400JPLUG, TRANSAXLE HOLE

main90341-08001iNRE181..CVT¥120201704

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

main90341-08001iZRE182..CVT¥120201406-201610

TMH:REFER TO ILLUST.

main90341-08001iNRE181,ZRE18#..CVT¥120201511-201802

TMCAP:REFER ILLUST.

main90341-C0008iZRE18#..CVT201407-201510

TMCAP:REFER ILLUST.

sub90341-08001¥120

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iNRE181..CVT¥170201406-201610

TMH:REFER TO ILLUST.

main90301-C0061iZRE182201407-201802

TMCAP:REFER ILLUST.

30400LPLUG , FILLER(CVT)

main90341-12025iNRE181,ZRE18#..CVT¥190201608-201802

(J),TMCAP:REFER ILL.

main90341-12025iZRE182..CVT¥190201406-201703

TMH:REFER TO ILLUST.

main90341-12025iZRE181..CVT¥190201703

(J),TMH:REFER ILL.

main90341-12025iNRE181..CVT¥190201704

(J),TMH:REFER ILL.,(J),TMCAP:REFER ILL.

main90341-C0007iZRE182201608-201802

(L),TMCAP:REFER ILL.

main90341-C0007iZRE181..CVT201703

(L),TMH:REFER ILL.

main90341-C0007iNRE181..CVT201704

(L),TMH:REFER ILL.,(L),TMCAP:REFER ILL.

main90341-C0007iNRE181..CVT201407-201703

TMCAP:REFER ILLUST.

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iZRE182..CVT¥200201406-201610

TMH:REFER TO ILLUST.

main90430-12221iNRE181,ZRE18#..CVT¥200201407

TMCAP:REFER ILLUST.

main90430-12221iZRE182¥200201704-201802

30400NPLUG, REFILL(CVT)

main90341-18077iNRE181,ZRE181..CVT¥190201406-201610

TMH:REFER TO ILLUST.

main90341-C0011iNRE181..CVT201407-201802

TMCAP:REFER ILLUST.

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iZRE182..CVT¥110201406-201610

TMH:REFER TO ILLUST.

main90430-18008iNRE181,ZRE18#..CVT¥110201407-201802

TMCAP:REFER ILLUST.

main90430-18008iNRE181..CVT¥110201704

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

33493CCOOLER, TRANSMISSION OIL

main33493-02010iZRE182..CVT201406-201610

(L)

main33493-02010iZRE182201610-201802

main33493-12080iNRE181,ZRE181..CVT201406-201610

(J)

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012iZRE182..CVT¥170201406-201610

(J)

main90301-C0028iZRE182..CVT201406-201610

(L)

main90301-C0028iZRE182201610-201802

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-02020iNRE181,ZRE18#..CVT201407-201802

TMCAP:REFER ILLUST.

main35106-12200iZRE182..CVT¥3,590201406-201610

TMH:REFER TO ILLUST.

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iZRE182..CVT¥80201406-201610

TMH:REFER TO ILLUST.

main90119-06173iZRE182¥80201511-201802

TMCAP:REFER ILLUST.

main90119-06173iNRE181..CVT¥80201704

TMCAP:REFER ILLUST.,NO.1,TMH:SEE ILLUST

main90119-C0435iZRE18#..CVT201407-201510

TMCAP:REFER ILLUST.

sub90119-06173¥80

35125ETUBE, OVERFLOW(CVT)

main35125-02160iZRE182201407-201802

TMCAP:REFER ILLUST.

main35125-12440iNRE181,ZRE181..CVT¥130201406-201610

TMH:REFER TO ILLUST.

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZRE182..CVT¥190201406-201610

TMH:REFER TO ILLUST.

main90341-12034iNRE181,ZRE18#..CVT¥190201407-201802

TMCAP:REFER ILLUST.

main90341-12034iNRE181..CVT¥190201704

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZRE182..CVT¥90201406-201610

TMH:REFER TO ILLUST.

main90430-12008iNRE181,ZRE18#..CVT¥90201407-201802

TMCAP:REFER ILLUST.

main90430-12008iNRE181..CVT¥90201704

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

35141DHOSE(FOR BREATHER PLUG)

main35121-02010iZRE18#..CVT201407-201802

TMCAP:REFER ILLUST.

main35121-0D020iNRE181..CVT201610-201703

TMCAP:REFER ILLUST.

main35121-12090iZRE181..CVT¥940201406-201610

TMH:REFER TO ILLUST.

main35121-52020iNRE181..CVT¥590201610-201703

TMH:REFER TO ILLUST.

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iZRE18#..CVT¥170201406-201604

TMH:REFER TO ILLUST.

main90301-06021iZRE182..CVT¥140201605-201610

TMH:REFER TO ILLUST.

main90301-C0060iZRE182201407-201802

TMCAP:REFER ILLUST.

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03216iZRE182..CVT¥260201406-201610

TMH:REFER TO ILLUST.

main90930-C3022iNRE181,ZRE18#..CVT201407-201802

TMCAP:REFER ILLUST.

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03191iNRE181,ZRE181..CVT¥260201406-201610

TMH:REFER TO ILLUST.

main90930-C3019iNRE181..CVT201407-201802

TMCAP:REFER ILLUST.

35150BPLUG ASSY, TRANSMISSION CASE

main35150-02010iNRE181,ZRE18#..CVT201407-201802

TMCAP:REFER ILLUST.

main35150-48010iNRE181,ZRE181..CVT¥280201406-201610

TMH:REFER TO ILLUST.

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iZRE182..CVT¥140201406-201610

TMH:REFER TO ILLUST.

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-02020iNRE181,ZRE18#..CVT201407-201802

TMCAP:REFER ILLUST.

main35168-12091iZRE182..CVT¥370201406-201610

TMH:REFER TO ILLUST.

35300CPUMP ASSY, OIL W/MOTOR

main35300-12011iNRE181..CVT¥42,500201610-201703

TMH:REFER TO ILLUST.

main35300-12011iNRE181..CVT¥42,500201610-201802

TMCAP:REFER ILLUST.

main35300-12011iNRE181..CVT¥42,500201704

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

35394DMAGNET, OIL CLEANER(CVT)

main35394-02010iZRE182201507-201802

TMCAP:REFER ILLUST.

main35394-30011iNRE181..CVT¥360201406-201703

TMH:REFER TO ILLUST.

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iNRE181,ZRE18#..CVT¥390201407-201802

TMCAP:REFER ILLUST.

main35572-12160iZRE182..CVT¥390201406-201610

TMH:REFER TO ILLUST.

main35572-12160iNRE181..CVT¥390201704

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

8202

8401

8410

8716

90105C0088

main90105-C0088

90105C0134

main90105-C0134

90170C0013

main90170-C0013

9030113025

main90301-13025¥170

90464C0004

main90464-C0004

90469C0012

main90469-C0012

9155180820

main91551-80820¥80

9155180830

main91551-80830¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

40 parts on this diagram · 4 diagrams in section
