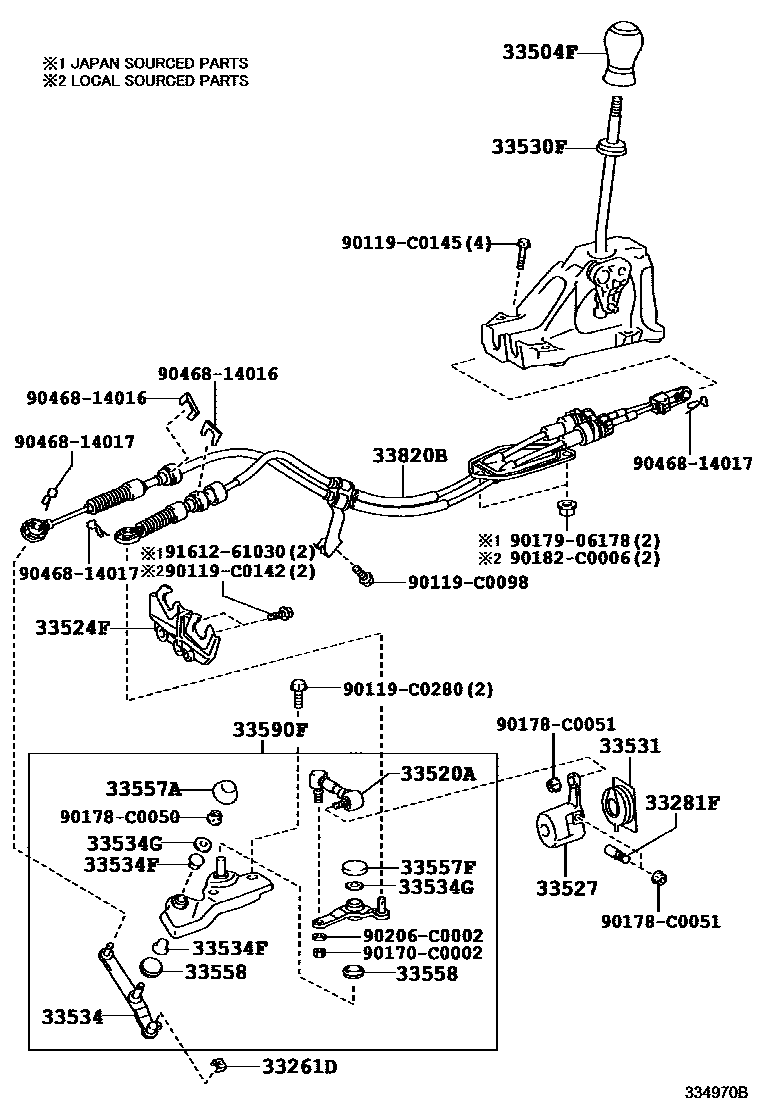

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-0D040iZRE181..5F201406-201511

sub33557-0D041

main33557-0D041iZRE181..5F201512

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iZRE181..5F¥160201406

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02510-C1iNRE181..6F201704

BLACK,TRIM0#,2#

main33504-02520-C0iNRE181..CVT..(GL,GLI)201704

BLACK,TRIM0#,2#

main33504-02530-C0iNRE181..CVT..GLI201704

LEATHER PACKAGE(*LES),BLACK,TRIM0#,2#

main33504-02530-C0iNRE181..CVT..GLI201704-201802

BLACK,TRIM0#,2#

main33504-02560-C0iNRE181,ZRE181..CVT..(GL,GLI)201406-201704

BLACK & MD.SILVER,TRIM0#,2#

main33504-02570-C0iNRE181,ZRE181..CVT..GLI201406-201703

LEATHER PACKAGE,BLACK & MD.SILVER,TRIM0#,2#

main33504-02570-C0iNRE181,ZRE18#..CVT..(GLXI,PREM)201406-201703

BLACK & MD.SILVER,TRIM0#,2#

main33504-12620-C1iZRE181..5F..(GL,GLI)201406-201707

BLACK & METALLIC BLACK,TRIM0#,2#

sub33504-12620

main33504-12620-C2iZRE181..5F201707

BLACK,TRIM0#,2#

sub33504-12620

main33504-12630-C1iNRE181,ZRE182..6F..GLXI201406-201703

BLACK/BLACK ME.,TRIM0#,2#

sub33504-12630

main33504-12640-C1iZRE181..5F..GLI201406-201609

LEATHER PACKAGE,BLACK & METALLIC BLACK,TRIM0#,2#

main33504-12640-C1iZRE181..5F..GLXI201406-201609

BLACK & METALLIC BLACK,TRIM0#,2#

main33504-19025-B0iZWE182201512-201703

ORNAMENT SILVER,TRIM0#,2#

main33504-19035iZWE182201704

main33504-52290-C3iNRE181..6F..(GL,GLI)201610-201703

BLACK/BLACK ME.,TRIM0#,2#

sub33504-52290

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iZRE181..5F¥1,490201406

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-02030iZRE181..5F201406

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-0D010iZRE181..5F201406

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02320iZRE181..5F201406

main33530-12C40iNRE181..6F201406-201703

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-0D030iZRE181..5F201406

33534BELLCRANK, SELECTING

main33534-02010iZRE181..5F201406

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-C0002iZRE181..5F201406

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iZRE181..5F¥100201406

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-0D030iZRE181..5F201406-201512

sub33557-0D031

main33557-0D031iZRE181..5F201512

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-0D020iZRE181..5F201406

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-0D010iZRE181..5F201406-201512

sub33558-0D011

main33558-0D011iZRE181..5F201512

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-02040iZRE181..5F201406-201512

sub33590-02041

main33590-02041iZRE181..5F201512

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02500iZRE181..5F201406

main33820-02710iZRE182201406-201802

main33820-02870iNRE181,ZRE182..6F201406-201703

90119C0098

main90119-C0098

90119C0142

main90119-C0142

90119C0145

main90119-C0145

90119C0280

main90119-C0280

90170C0002

main90170-C0002

90178C0050

main90178-C0050

90178C0051

main90178-C0051

9017906178

main90179-06178¥100

90182C0006

main90182-C0006

90206C0002

main90206-C0002

9046814016

main90468-14016¥160

9046814017

main90468-14017¥90

9161261030

main91612-61030¥110

29 parts on this diagram · 4 diagrams in section
