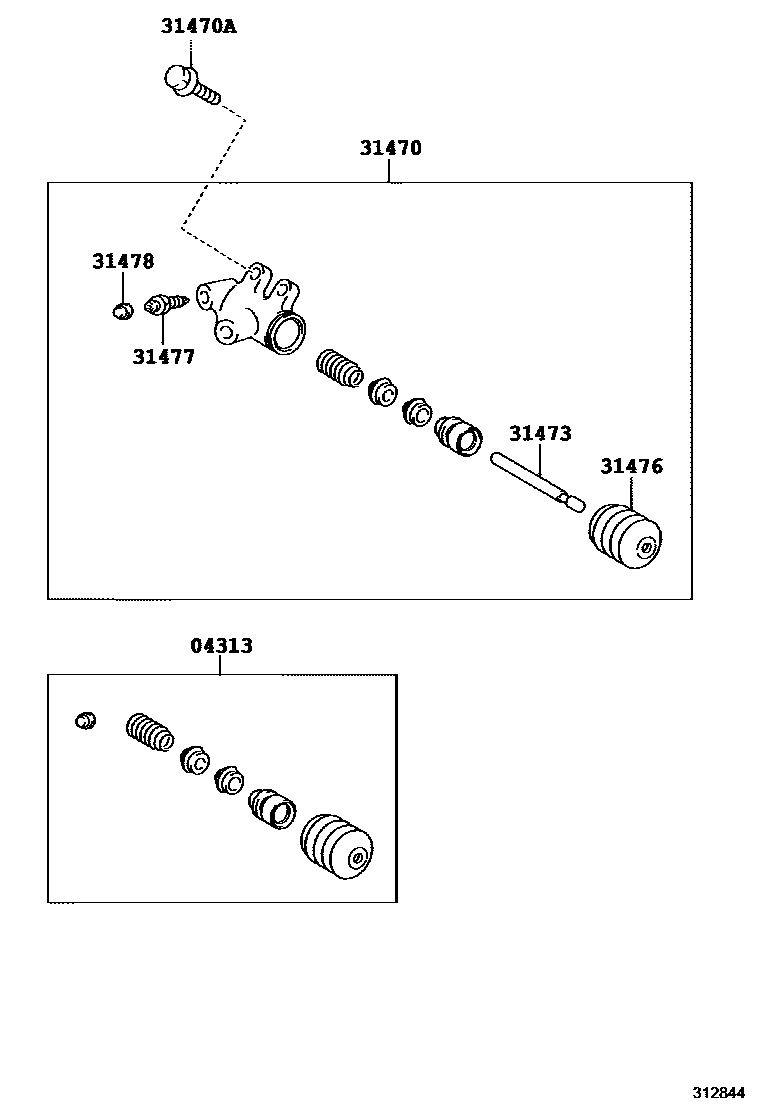

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-02011iZRE181..5F201406

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-02021iZRE181..5F201406

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iZRE181..5F201406

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iZRE181..5F201406

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-02010iZRE181..5F201406

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iZRE181..5F201406

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-0N010iZRE181..5F201406

main31478-30010iNRE181,ZRE182..6F201406-201703

7 parts on this diagram · 2 diagrams in section
