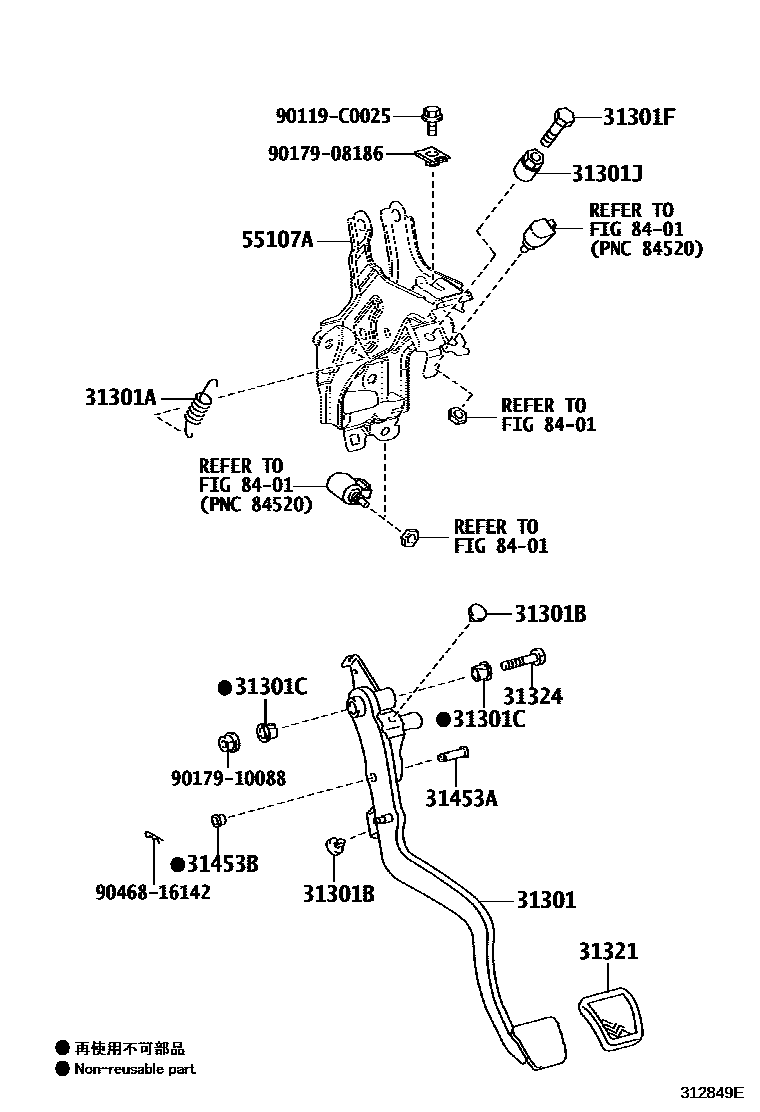

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02231iNRE181..6F201406-201703

main31301-02241iZRE181..5F201406

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZRE181..5F¥100201406

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNRE181..6F¥110201406-201711

main90541-C0007iNRE181..6F201712

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNRE181,ZRE18#..MTM¥120201406

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iNRE181,ZRE18#..MTM¥110201406

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iNRE181..6F201406

31321PAD, CLUTCH PEDAL

main31321-0R030iZRE181..5F201702

main31321-42010iNRE181,ZRE182..6F;ZRE181..5F..(GLI,GLXI)¥230201406-201703

31324SHAFT, CLUTCH PEDAL

main90109-10167iNRE181,ZRE18#..MTM¥190201406

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iNRE181,ZRE18#..MTM¥130201406

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iNRE181,ZRE18#..MTM¥110201406

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02181iNRE181,ZRE182..6F201406-201703

main55107-02191iZRE181..5F201406

8401

90119C0025

main90119-C0025

9017908186

main90179-08186¥210

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

16 parts on this diagram · 4 diagrams in section
