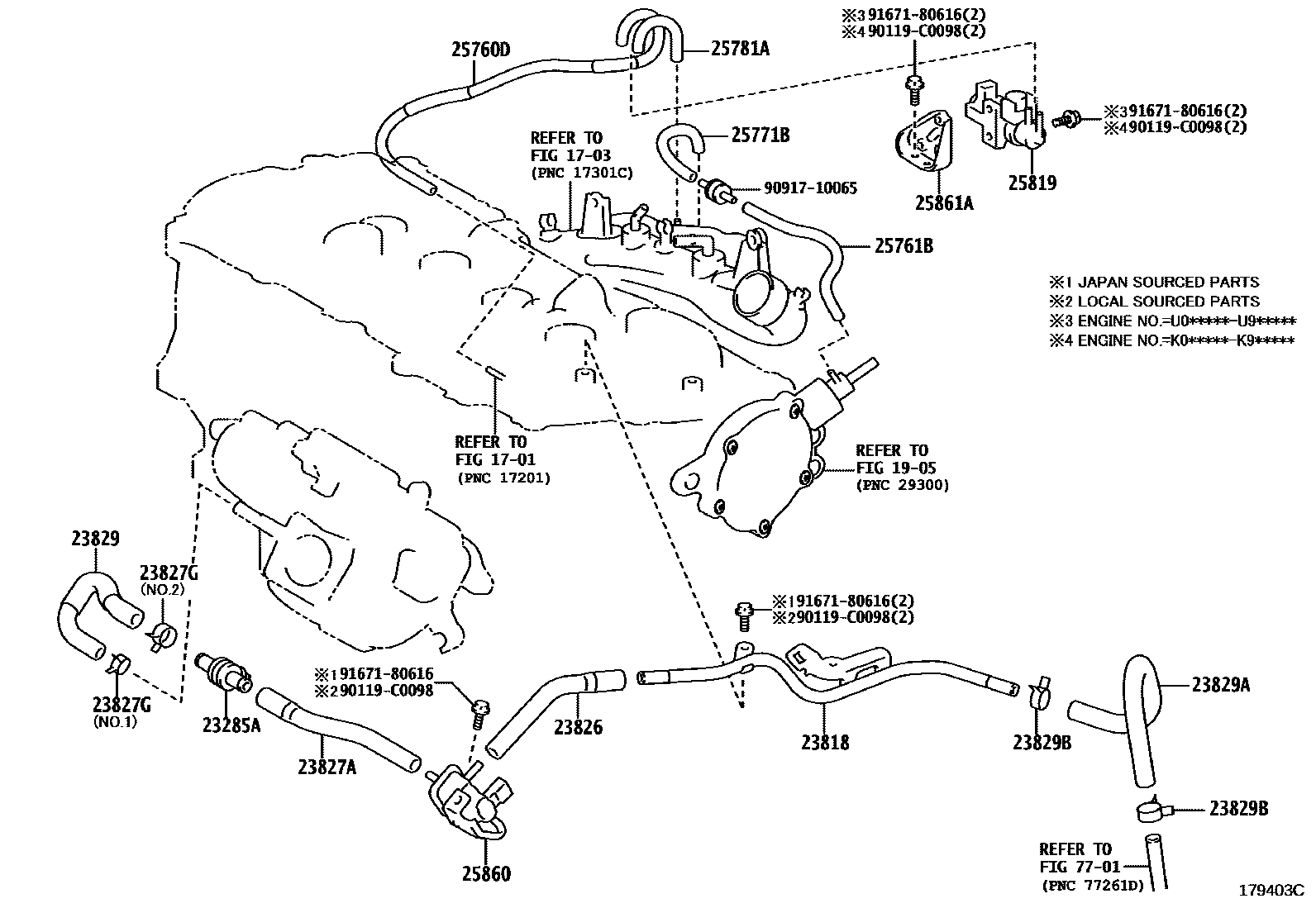

VACUUM PIPING
1701
1703
1905
23285AVALVE, CHECK, NO.1
sub25748-0Y020
23818PIPE, FUEL VAPOR FEED
*474
EXHAUST EMISSION CONTROL-CHINA 6B
23826HOSE, FUEL VAPOR FEED, NO.1
*474
EXHAUST EMISSION CONTROL-CHINA 6B
23827AHOSE, FUEL VAPOR FEED, NO.2
*475
*474
EXHAUST EMISSION CONTROL-CHINA 6B
EXHAUST EMISSION CONTROL-CHINA 6B
23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
NO.2:REFER ILLUST.
*475,NO.1:SEE ILLUST
*474,NO.1:SEE ILLUST
*474,NO.2:SEE ILLUST
23829HOSE, FUEL VAPOR FEED, NO.3
*474
23829AHOSE, FUEL VAPOR FEED
EXHAUST EMISSION CONTROL-CHINA 6B
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
(L)
(L),NO.1
(L)
(J),NO.1,NO.2
(J)
(J)
25760DHOSE ASSY, VACUUM TRANSMITTING, NO.4
*474
*474
*474
*474
*475
*475
25761BHOSE, VACCUM TRANSMITTING, NO.1
*475
*474
25771BHOSE, VACCUM TRANSMITTING, NO.2
*475
*474
25781AHOSE, VACUUM TRANSMITTING, NO.3
*475
*474
*474
25819VALVE ASSY, VACUUM REGULATING
*474,*475
25860VALVE ASSY, VACUUM SWITCHING, NO.1
*474
EXHAUST EMISSION CONTROL-CHINA 6B
EXHAUST EMISSION CONTROL-CHINA 6B
25861BRACKET, VACUUM SWITCHING VALVE
25861ABRACKET, VACUUM SWITCHING VALVE, NO.2
*474
7701
90119C0098
main90119-C0098
9091710065
main90917-10065
9167180616
main91671-80616
23 parts on this diagram · 4 diagrams in section
