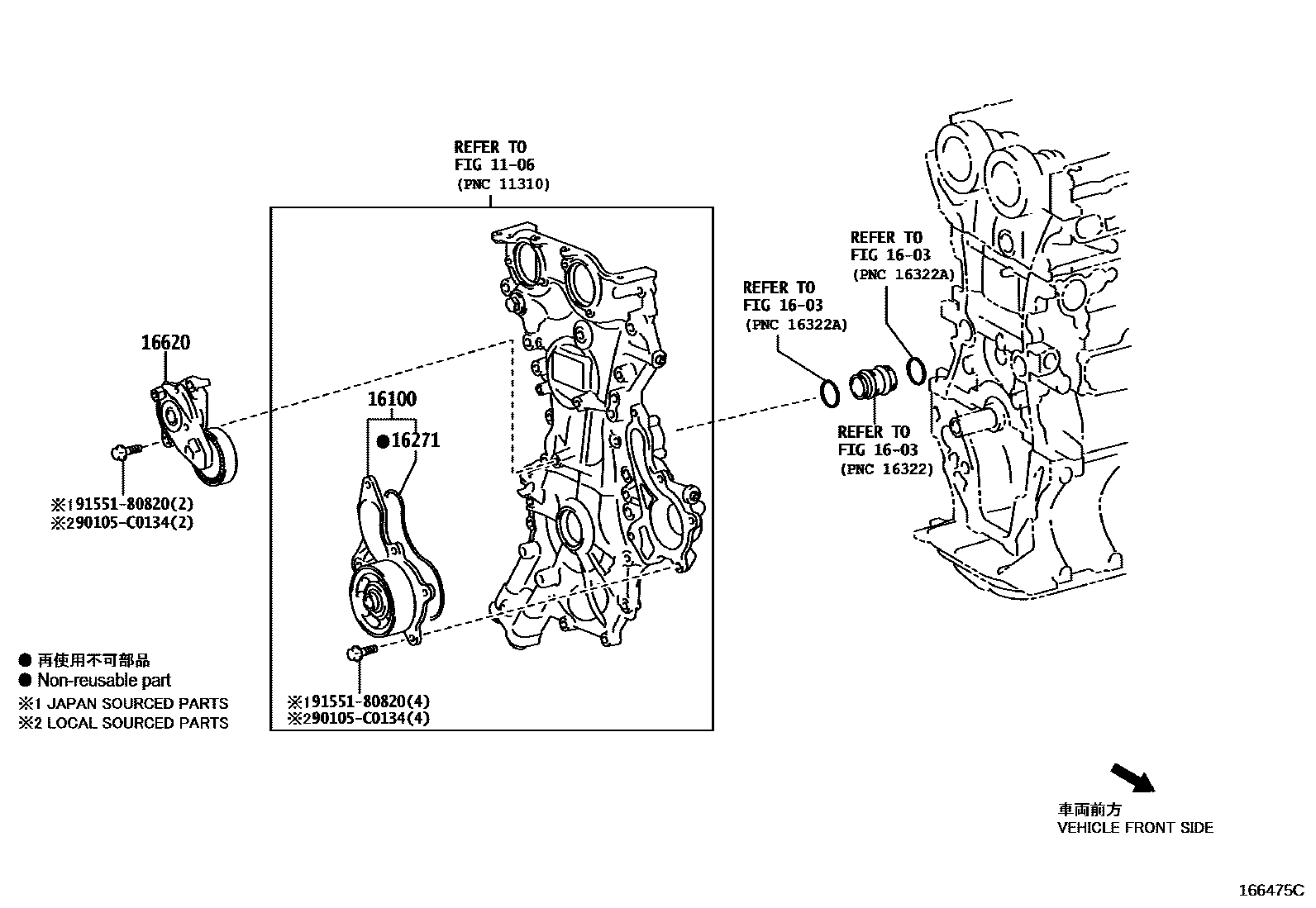

WATER PUMP

0001 1 0002 1 0003 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-09650i1ZRFE,2ZRFE..ZRE18#201406-201802

MADE IN CHINA

main16100-09760i9NRFTS..NRE181201810

(L),*475

main16100-09760i9NRFTS..NRE181201704-201810

*475

main16100-09760i9NRFTS..NRE181201610-201703

main16100-39565i1ZRFE,2ZRFE..ZRE18#¥10,500201406-201802

MADE IN JAPAN

main16100-80014i9NRFTS..NRE181¥9,000201810

(J),*475

main16100-80014i9NRFTS..NRE181¥9,000201704

*474

main161A0-29015i8ZRFXE..ZWE182¥15,000201512-201703

16271GASKET, WATER PUMP

main16271-0Y050i9NRFTS..NRE181201610-201703

main16271-0Y050i9NRFTS..NRE181201704

*475

main16271-37020i8ZRFXE..ZWE182¥470201512-201703

main16271-37030i1ZRFE,2ZRFE..ZRE18#¥520201406-201802

main16271-47060i9NRFTS..NRE181¥410201704

*474

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0T020i1ZRFE,2ZRFE..ZRE18#201406-201802

main16620-0Y030i9NRFTS..NRE181201610-201703

main16620-0Y030i9NRFTS..NRE181201704

*475

main16620-47061i9NRFTS..NRE181¥11,200201704

*474

90105C0134

main90105-C0134

9155180820

main91551-80820¥80

7 parts on this diagram · 3 diagrams in section
