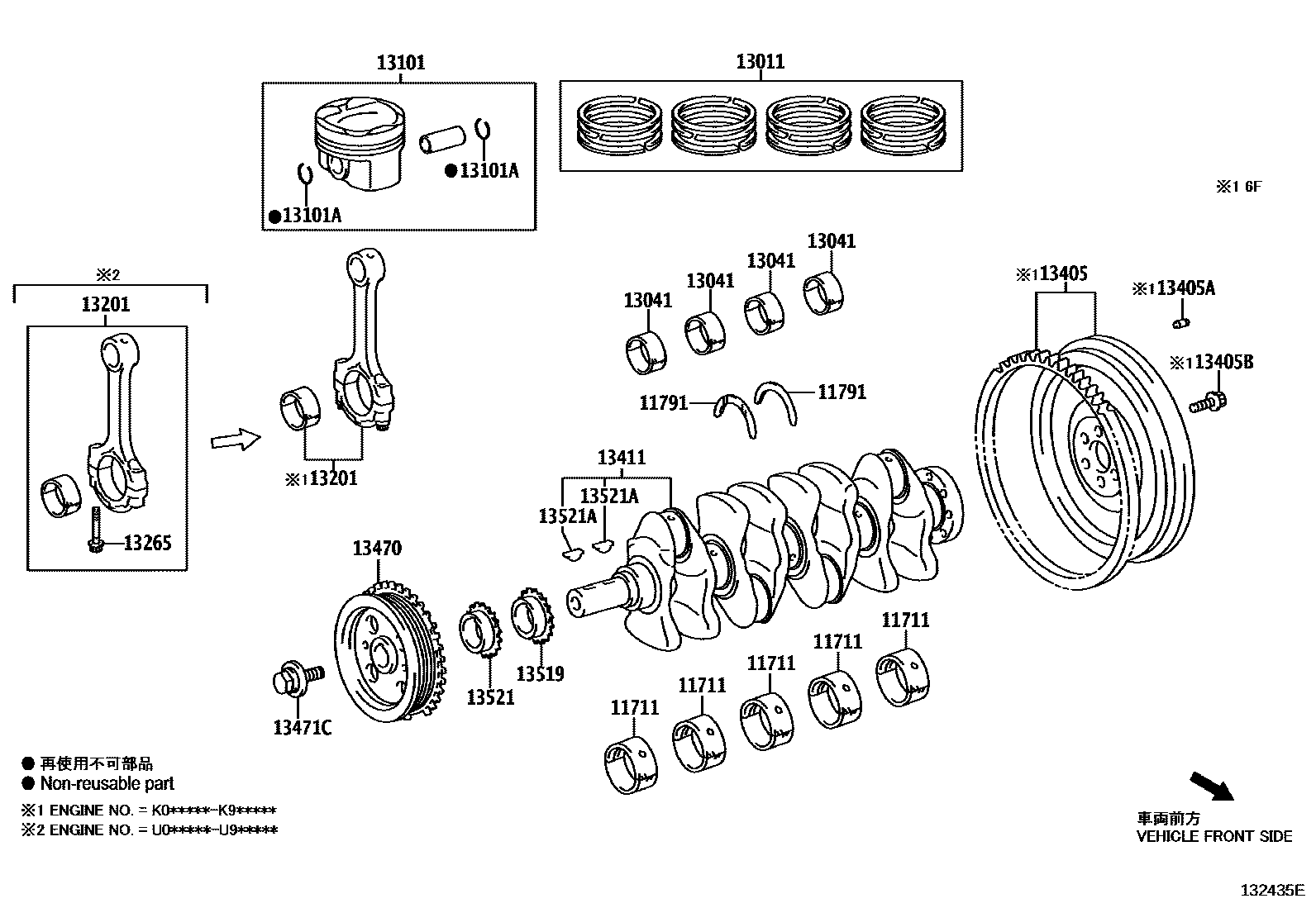

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 1,*475,*RRM
MARK 2,*475,*RRM
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 3,*475,*RRM
MARK 4,*475,*RRM
MARK 4,REFER REPAIR MANUAL
MARK 2,*475,*RRM
MARK 3,*475,*RRM
MARK 4,*475,*RRM
MARK 5,*475,*RRM
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK1,*474,*RRM
MARK2,*474,*RRM
MARK3,*474,*RRM
MARK4,*474,*RRM
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
STD,*475
STD,*474
13011RING SET, PISTON
STD
STD
STD
STD,*475
STD,*475
STD,*474
13041BEARING, CONNECTING ROD
MARK1,REFER R/M
MARK2,REFER R/M
MARK3,REFER R/M
MARK 1,*475,*RRM
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 2,*475,*RRM
MARK 3,REFER REPAIR MANUAL
MARK 3,*475,*RRM
MARK1,*474,*RRM
MARK2,*474,*RRM
MARK3,*474,*RRM
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD
STD
STD
STD,*475
STD,EXHAUST EMISSION CONTROL-CHINA 6B,*475
STD,*474
13101ARING, HOLE SNAP(FOR PISTON PIN)
*474,*475
13405FLYWHEEL SUB-ASSY
*475
*474
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8,*474
L=18,OD=8,*475
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
*474
*475
13411CRANKSHAFT
*475
*474
13470PULLEY ASSY, CRANKSHAFT
*475
13471PULLEY, CRANKSHAFT
*265
13519GEAR, OIL PUMP DRIVE
*475
*474
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
*475
*474
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
*474,*475
18 parts on this diagram · 3 diagrams in section
