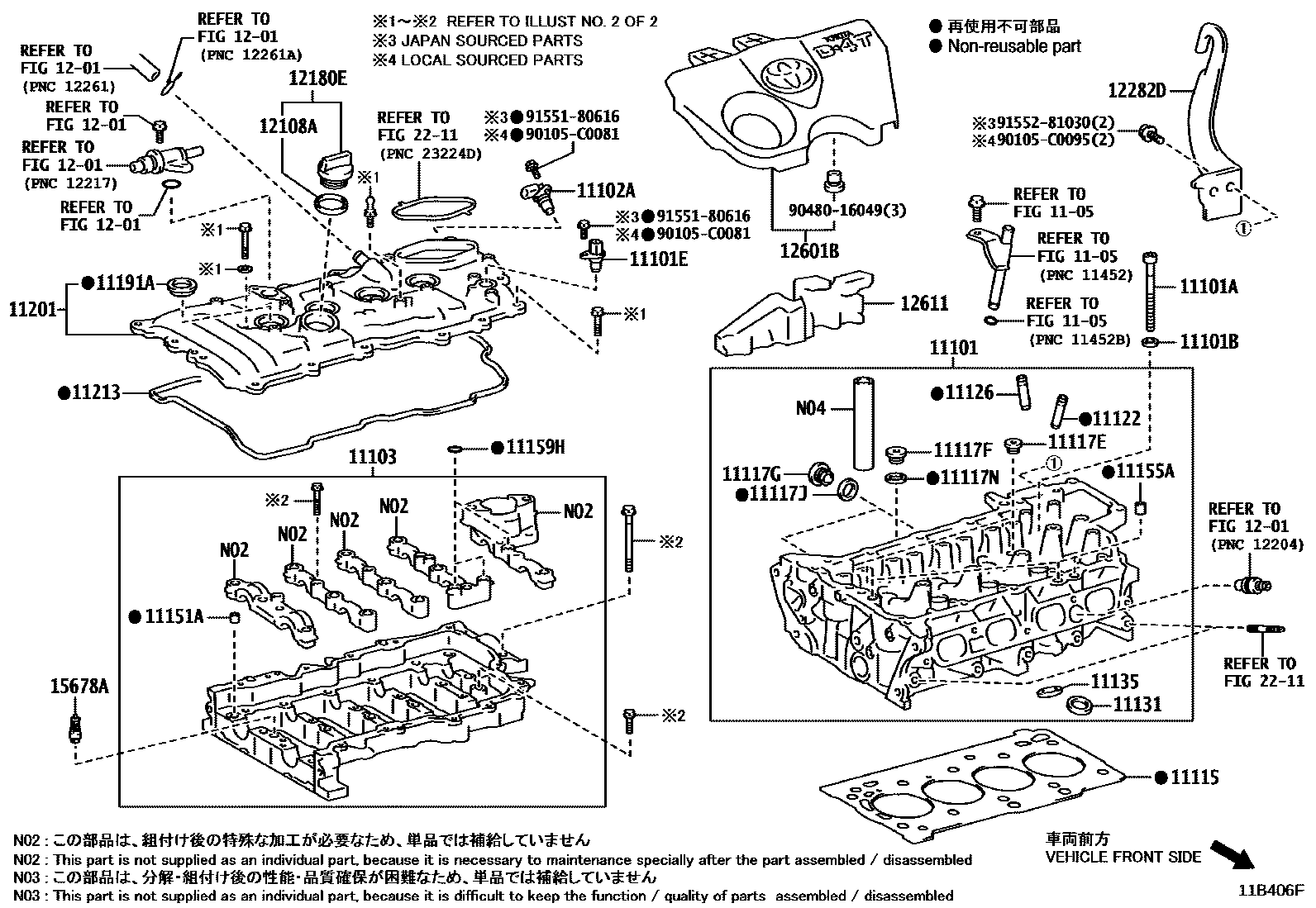

CYLINDER HEAD
1105
11101ABOLT(FOR CYLINDER HEAD SET)
*474
*475
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*474,*475
11101ESENSOR, CAM POSITION
*474
*475
11102ASENSOR, CAMSHAFT POSITION
*474
*475
11115GASKET, CYLINDER HEAD
*475
*474
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*474
*475
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
*474,*475
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
*474
*475
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
*474
*475
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
*474
*475
11122BUSH, INTAKE VALVE GUIDE
STD,(L)
STD,*474,*475
O/S 0.05,(J)
O/S 0.05,(L)
O/S 0.05,*474,*475
11126BUSH, EXHAUST VALVE GUIDE
STD,*474,*475
O/S 0.05,*474,*475
STD,(L)
O/S 0.05,(L)
11131SEAT, INTAKE VALVE
STD
STD
STD,*475
STD
STD,*474
O/S 0.03,(J),(L)
O/S 0.03
O/S 0.03,*474,*475
11135SEAT, EXHAUST VALVE
STD
STD
STD
STD,*475
STD,*474
STD,*474
O/S 0.03,(J),(L)
O/S 0.03
O/S 0.03,*475
O/S 0.03,*474
O/S 0.03,*474
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8,*474
L=12.5,OD=8
L=12.5,OD=8,*475
11155APIN, RING W/HEAD
*474
*475
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*474
*475
11191AGASKET(FOR SPARK PLUG TUBE)
*475
*474
11201COVER SUB-ASSY, CYLINDER HEAD
*475
*474
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
*474,*475
12180ECAP ASSY, OIL FILLER
*475
*474
12282DHANGER, ENGINE, NO.2
W(PAINTED)
*475
W/O(PAINTED)
*474
12601BCOVER SUB-ASSY, ENGINE, NO.1
12611COVER, ENGINE, NO.1
*474,*475
15678AFILTER, OIL CONTROL VALVE
*475
*474
2211
90105C0081
main90105-C0081
90105C0095
main90105-C0095
9048016049
9155180616
9155281030
37 parts on this diagram · 6 diagrams in section
