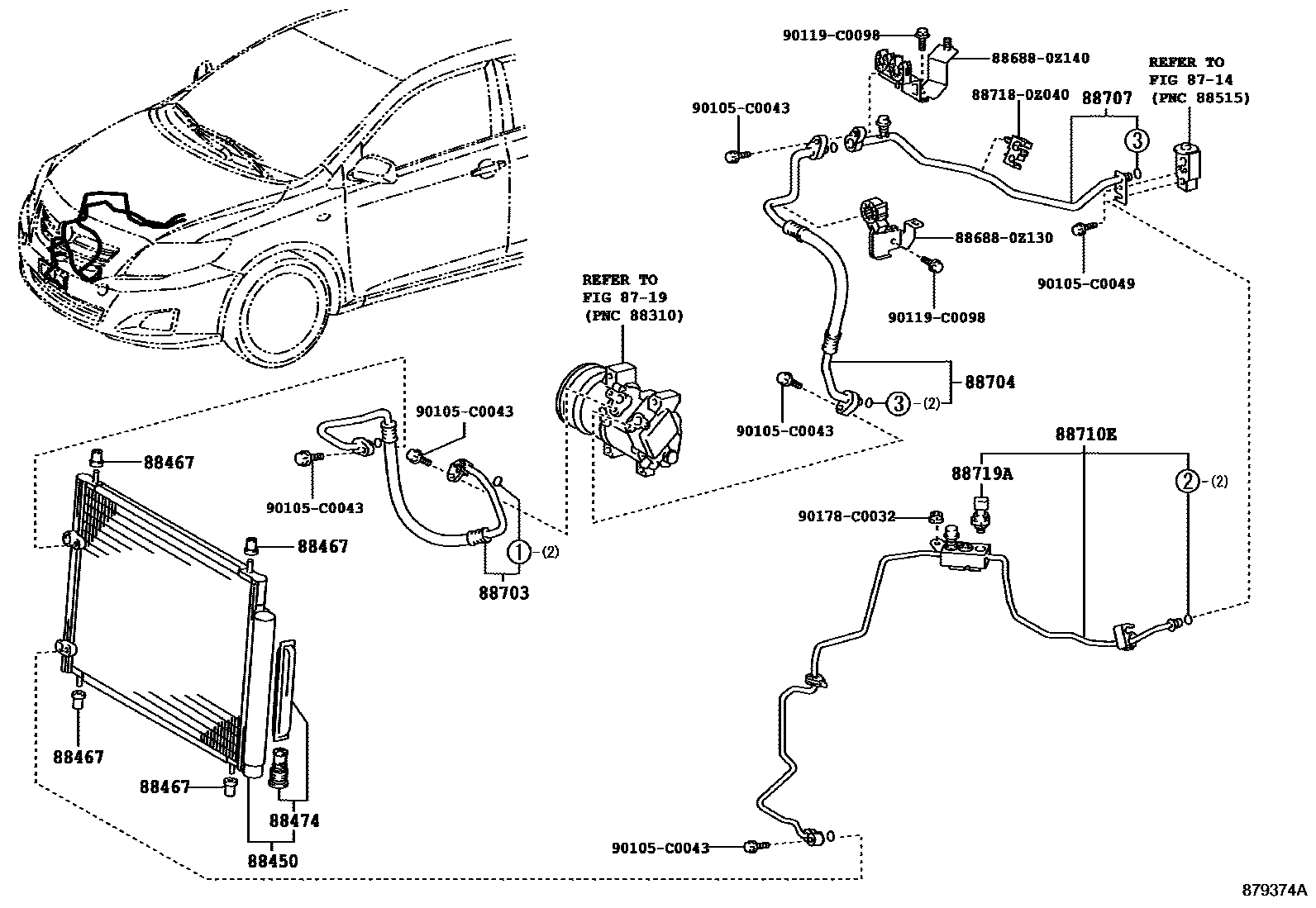

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714

8719

88450CONDENSER ASSY, W/RECEIVER

main88450-02320iZRE15#200705-201406

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iZRE15#200705-200811

main88467-02120iZRE15#200812-201406

88474DRYER, COOLER

main88474-17010iZRE15#200705-201203

88703HOSE SUB-ASSY, DISCHARGE

main88703-02450iZRE15#200705-201203

88704HOSE SUB-ASSY, SUCTION

main88704-02680iZRE15#200705-201203

88707PIPE SUB-ASSY, SUCTION

main88707-02050iZRE15#200705-201203

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0Z010iZRE15#200705-201203

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZRE15#200705-201203

886880Z130BRACKET, COOLER DIAPHRAGM

main88688-0Z130

886880Z140BRACKET, COOLER DIAPHRAGM

main88688-0Z140

887180Z040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0Z040

90105C0043

main90105-C0043

90105C0049

main90105-C0049

90119C0098

main90119-C0098

90178C0032

main90178-C0032

17 parts on this diagram · 2 diagrams in section
