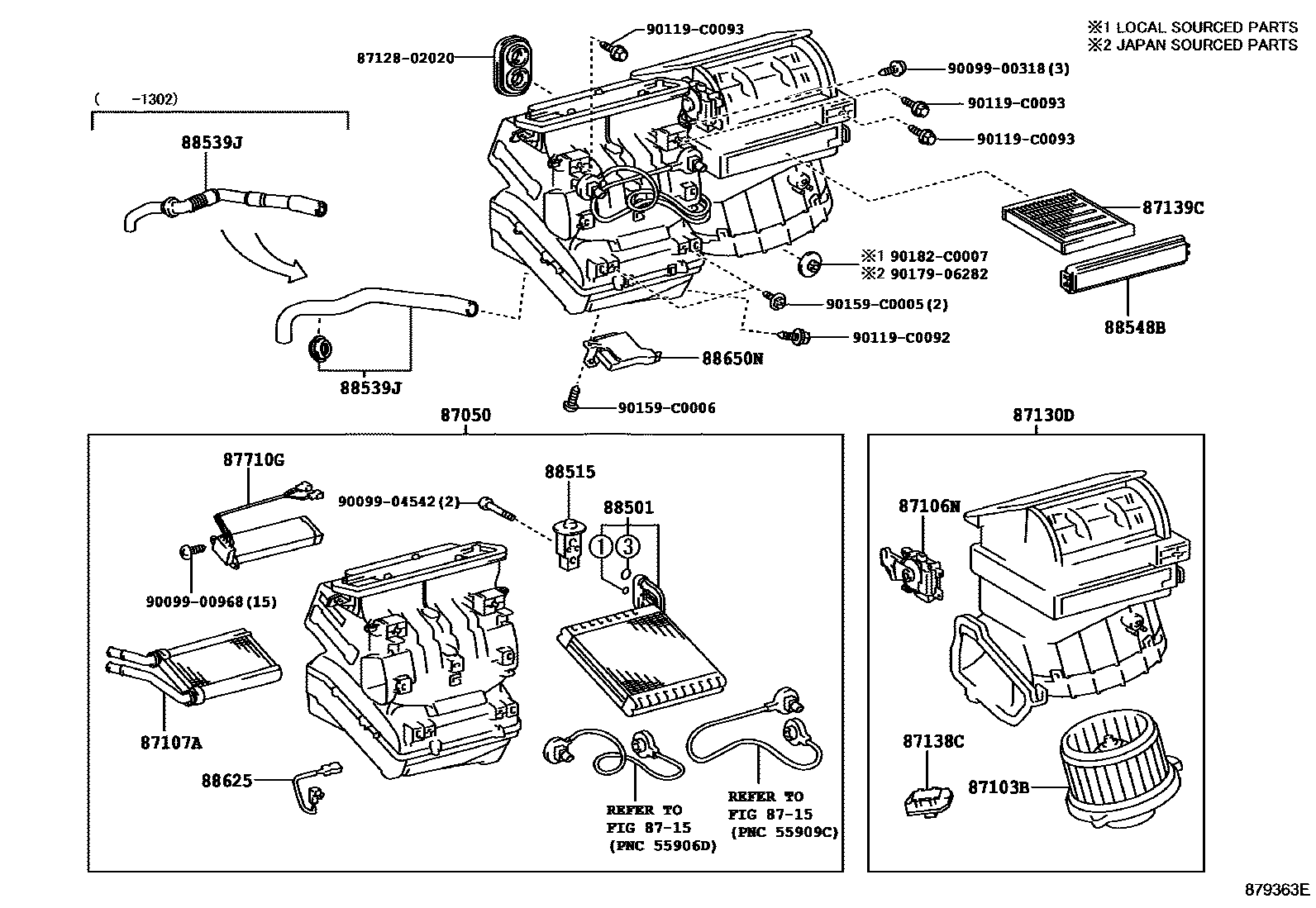

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02B60supersedes 87050-02B50iZRE152200705-201009

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02190supersedes 87103-02180iZRE152200705-201009

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-02340supersedes 87106-02330iZRE152200705-201009

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02220iZRE15#201009-201406

87130DBLOWER ASSY

main87130-02480supersedes 87130-02470iZRE152..GLS,GLXS201009-201203

87138CRESISTOR, BLOWER

main87138-02120iZRE151200705-201009

87139CFILTER, CLEAN AIR

main87139-06060iZRE15#200705-201009

STANDARD

main87139-50100iZRE151,152..GL,GLI,GLXI201009

*DPF

8715

87710GQUICK HEATER ASSY

main87710-12020iZRE15#200705-201009

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02210iZRE15#200705-200809

main88501-02211iZRE15#200810-201009

main88501-02212iZRE15#..GL,GLI,GLX,GLXI201205

88515VALVE, COOLER EXPANSION

main88515-02130iZRE15#200705-200905

main88515-0D100iZRE15#200905-201009

88539JHOSE, DRAIN COOLER

main88539-02150iZRE15#..GL,GLI,GLX,GLXI201009-201302

main88539-02420iZRE15#..GL,GLI,GLXI201302

88548BCASE, AIR FILTER

main88548-02100iZRE15#200705-201009

88625THERMISTOR, COOLER, NO.1

main88625-0D100iZRE152..GLS,GLXS201009-201203

main88625-26090iZRE15#200705-200809

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02480iZRE152200705-201009

main88650-02750supersedes 88650-02470iZRE152,153..GLI,GLX,GLXI201009

8712802020GROMMET, HEATER

main87128-02020

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

90119C0092

main90119-C0092

90119C0093

main90119-C0093

90159C0005

main90159-C0005

90159C0006

main90159-C0006

9017906282

main90179-06282

90182C0007

main90182-C0007

25 parts on this diagram · 3 diagrams in section
