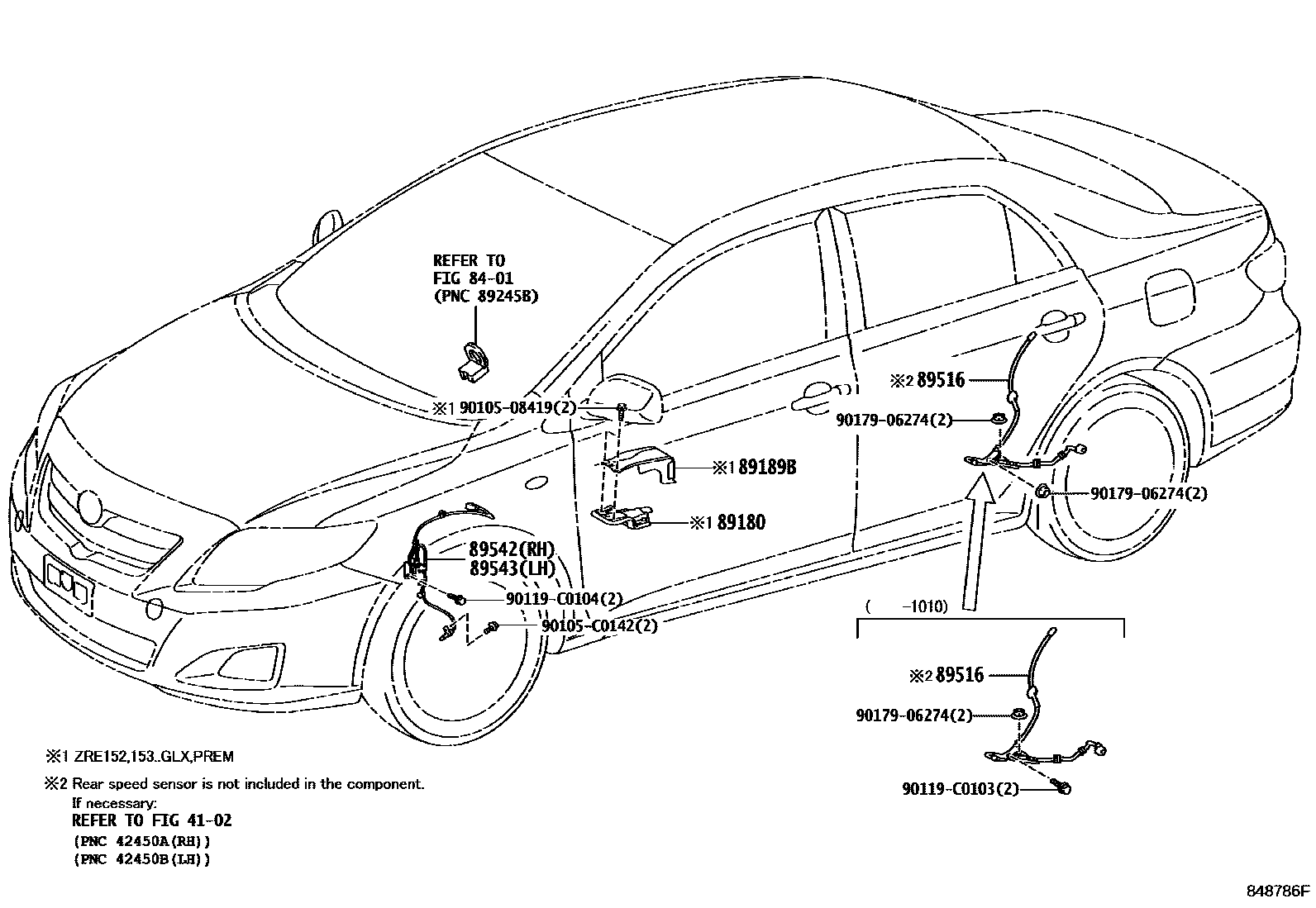

ABS & VSC

4102

8401

89180SENSOR ASSY, YAWRATE

main89180-12061iZRE152..PREM200705-201009

main89180-12140iZRE153201009-201210

89189BBRACKET, YAWRATE SENSOR

main89189-02040iZRE152..PREM200705-201009

89516WIRE, SKID CONTROL SENSOR

main89516-02111iZRE15#201009-201010

RH

main89516-02121iZRE15#200705-201009

LH

main89516-02250iZRE152..GLS,GLXS201010-201203

RH

main89516-02260iZRE152..GLS,GLXS201010-201203

LH

89542SENSOR, SPEED, FRONT RH

main89542-02080iZRE15#200705-201009

89543SENSOR, SPEED, FRONT LH

main89543-02080iZRE15#200705-201009

9010508419

main90105-08419

90105C0142

main90105-C0142

90119C0103

main90119-C0103

90119C0104

main90119-C0104

9017906274

main90179-06274

12 parts on this diagram · 1 diagram in section
