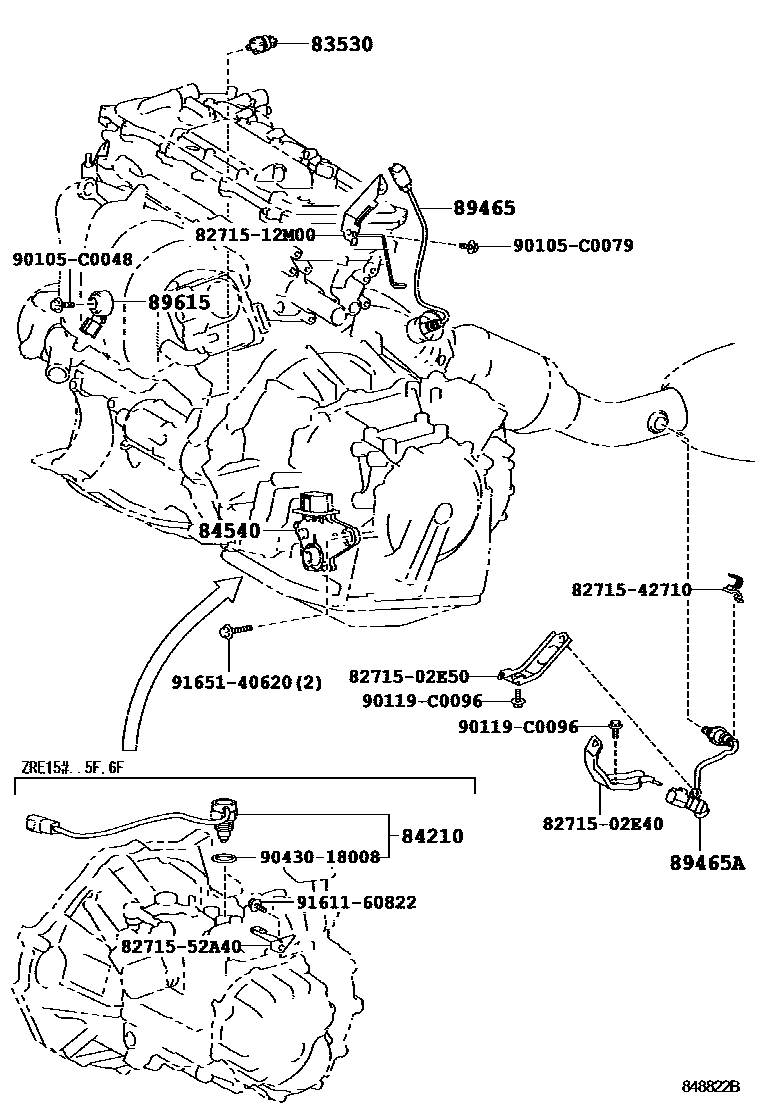

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1STEERING 0009 1DOOR,ROOF,FLOOR,SEAT & LUGGAG

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZRE15#200705-201009

DENSO

main83530-60020iZRE15#200705-201009

YAZAKI

main83530-60020iZRE152..GLS,GLXS201009-201203

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZRE153..6F201009-201206

sub84210-52050

main84210-52010iZRE151,152..5F,6F200705-201406

main84210-52050iZRE153..6F201206-201301

84540SWITCH ASSY, NEUTRAL START

main84540-46010iZRE15#..4FC200705-201406

main84540-52070iZRE152,153..CVFC201009-201406

89465SENSOR, OXYGEN

main89465-12880iZRE151200705-201009

main89467-02030iZRE152200705-201009

main89467-52060iZRE15#..GL,GLI,GLX,GLXI201009-201203

89465ASENSOR, OXYGEN NO.2

main89465-02300iZRE15#200705-201406

89615SENSOR, KNOCK CONTROL

main89615-02020iZRE15#..GL,GLI,GLX,GLXI201009-201203

MARK 89615-02020

main89615-20090iZRE152..GLS,GLXS201009-201203

MARK 89615-20090

main89615-20090iZRE15#200705-201009

8271502E40BRACKET,WIRING HARNESS CLAMP

main82715-02E40

8271502E50BRACKET,WIRING HARNESS CLAMP

main82715-02E50

8271512M00BRACKET,WIRING HARNESS CLAMP

main82715-12M00

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

90105C0048

main90105-C0048

90105C0079

main90105-C0079

90119C0096

main90119-C0096

9043018008

main90430-18008

9161160822

main91611-60822

9165140620

main91651-40620

17 parts on this diagram · 9 diagrams in section
