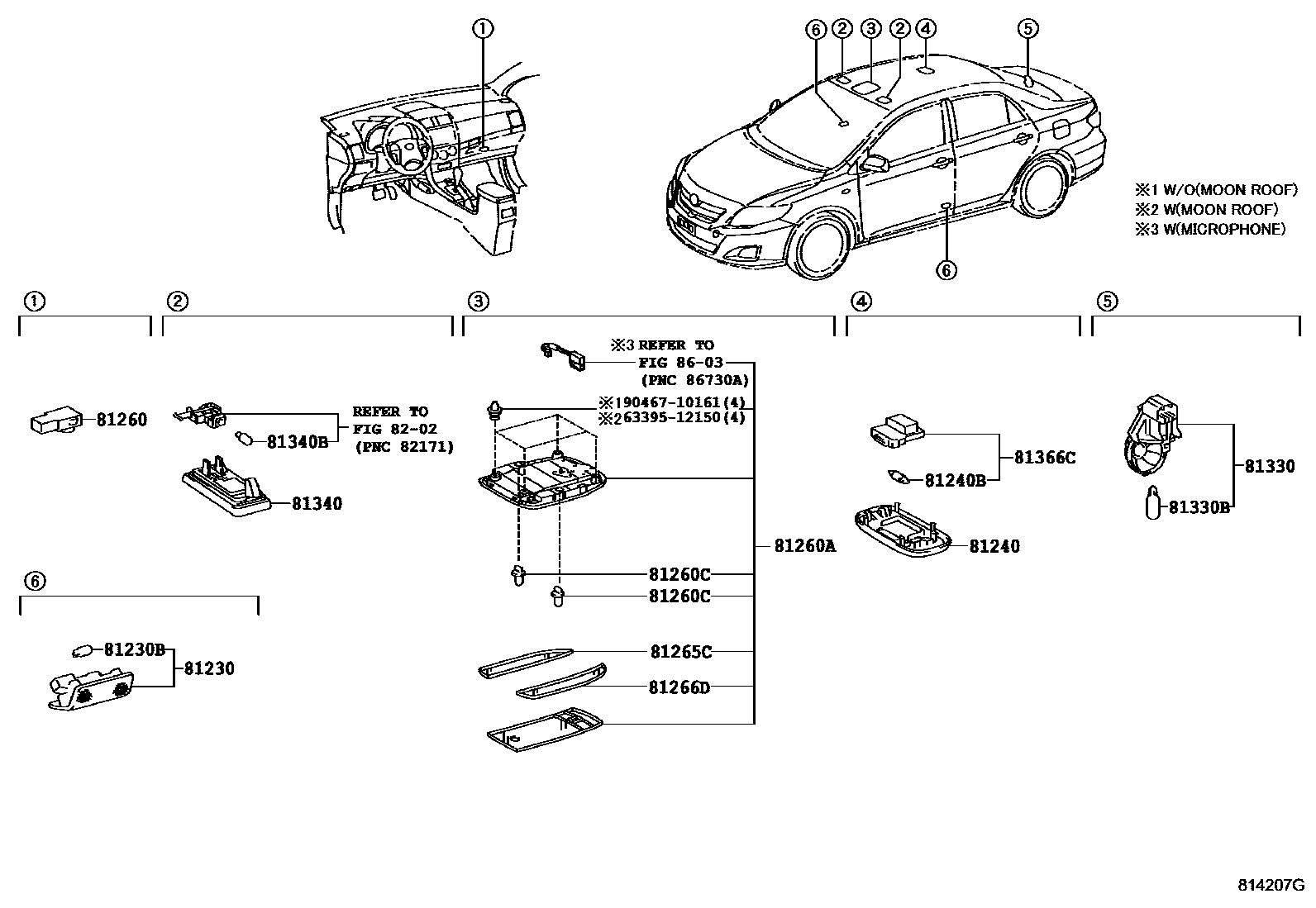

INTERIOR LAMP
81230LAMP ASSY, COURTESY
LIMITED'13(MANUAL AIR CONDITIONER)
LIMITED'13(LEATHER SEAT)
W(MOON ROOF)
MEMORIAL3
MEMORIAL3 PACKAGE
81230BBULB(FOR COURTESY LAMP)
12V 5W
12V 5W,LIMITED'13(LEATHER SEAT)
12V 5W,LIMITED'13(MANUAL AIR CONDITIONER)
12V 5W,W(MOON ROOF)
12V 5W,MEMORIAL3
12V 5W
12V 5W,MEMORIAL3 PACKAGE
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM1#
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81260ALAMP ASSY, MAP
LT.GRAY,TRIM1#
GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER,LT.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER,LT.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP,LT.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP,GREGE,TRIM4#
LT.GRAY,TRIM1#
MEMORIAL3,LT.GRAY,TRIM1#
W(MOON ROOF)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER,LT.GRAY,TRIM1#
LIMITED'13(LEATHER SEAT),LT.GRAY,TRIM1#
LIMITED'13(MANUAL AIR CONDITIONER),LT.GRAY,TRIM1#
LIMITED'13(MANUAL AIR CONDITIONER),GREGE,TRIM4#
W(MOON ROOF)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER,GREGE,TRIM4#
GREGE,TRIM4#
LIMITED'13(LEATHER SEAT),GREGE,TRIM4#
MEMORIAL PACKAGE&AUDIO (OVERSEAS MARKET)-AM/FM 6CD-CHANGER MP3 6SPEAKER,GREGE,TRIM4#
MEMORIAL3 PACKAGE,GREGE,TRIM4#
MEMORIAL3,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER,LT.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP,LT.GRAY,TRIM1#
W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR)&AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP,LT.GRAY,TRIM1#
A PACKAGE&AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER,LT.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER,LT.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER,GREGE,TRIM4#
A PACKAGE&AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER,GREGE,TRIM4#
W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR)&AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-AVN(MAP NAVI) 6SP,GREGE,TRIM4#
MEMORIAL3&AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER,GREGE,TRIM4#
LIMITED '11&AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER,GREGE,TRIM4#
81260CBULB(FOR MAP LAMP)
12V 8W
81265CLENS, MAP LAMP, NO.1
81266DLENS, MAP LAMP, NO.2
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
12V 3.8W
12V 5W
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81340LAMP ASSY, VANITY
LIMITED'13(MANUAL AIR CONDITIONER)&MOON ROOF-WITH
MEMORIAL3&MOON ROOF-WITH
W(MOON ROOF)&MOON ROOF-WITH
LIMITED'13(LEATHER SEAT)&MOON ROOF-WITH
MEMORIAL3&MOON ROOF-WITH,LT.GRAY,TRIM1#,4#
LT.GRAY,TRIM1#,4#
LT.GRAY,TRIM1#
MEMORIAL PACKAGE,LT.GRAY,TRIM4#
MEMORIAL3 PACKAGE,LT.GRAY,TRIM4#
LT.GRAY,TRIM4#
W(MOON ROOF)&MOON ROOF-WITH,LT.GRAY,TRIM1#,4#
81340BBULB (FOR VANITY LAMP)
12V 8W
12V 8W,MEMORIAL PACKAGE
12V 8W,MEMORIAL3 PACKAGE
12V 8W,MEMORIAL3&MOON ROOF-WITH
12V 8W,W(MOON ROOF)&MOON ROOF-WITH
12V 8W,LIMITED'13(LEATHER SEAT)&MOON ROOF-WITH
12V 8W,LIMITED'13(MANUAL AIR CONDITIONER)&MOON ROOF-WITH
81366CBASE, ROOM LAMP SWITCH
8202
8603
6339512150CLIP, ROOF HEADLINING TRIM
main63395-12150
9046710161
main90467-10161
18 parts on this diagram · 1 diagram in section
