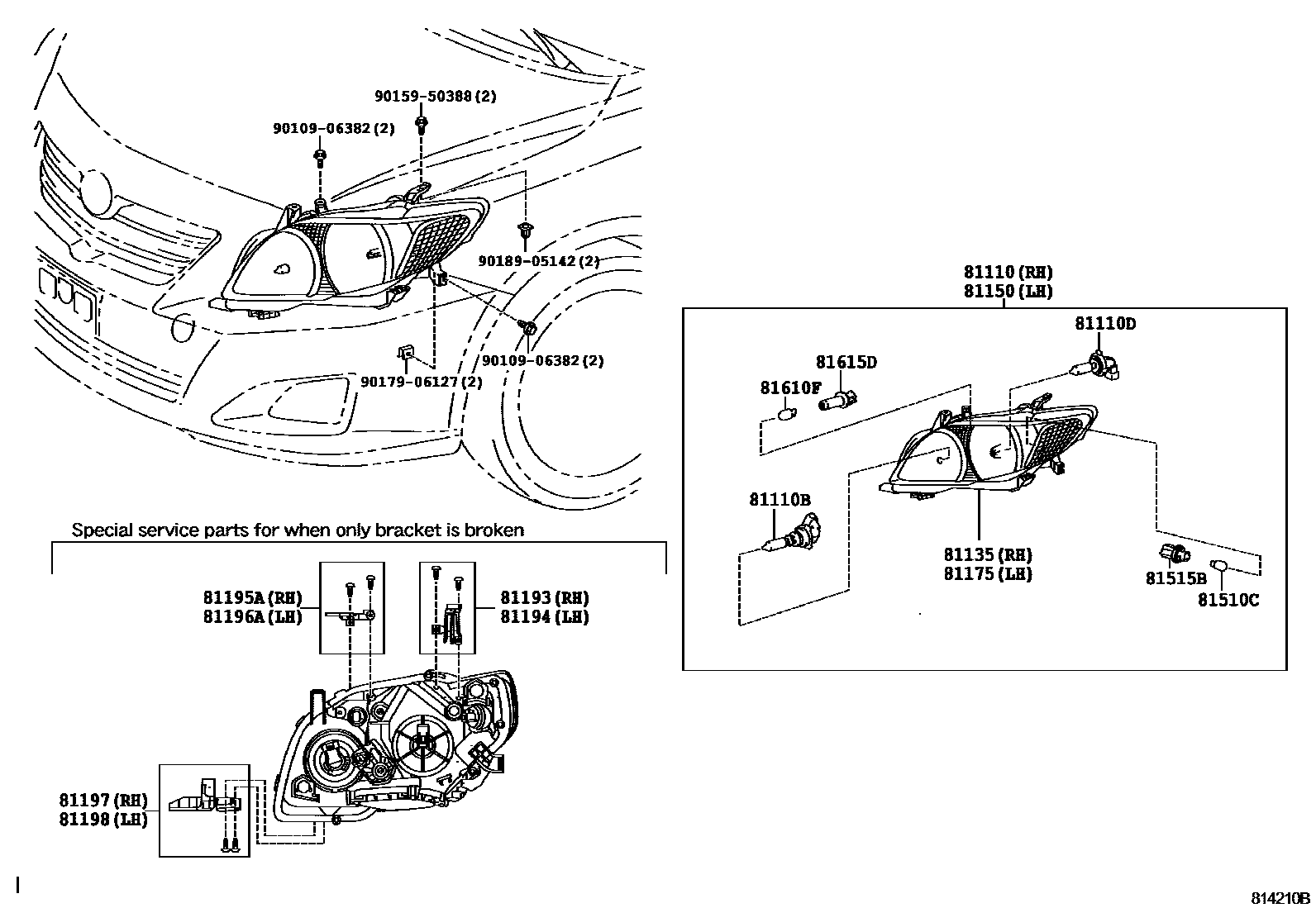

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1DISCHARGE HEADLAMP 0003 1HALOGEN HEADLAMP 0004 1DISCHARGE HEADLAMP

81110HEADLAMP ASSY, RH

main81110-02610iZRE15#..GL,GLI,GLS,GLXI,PREM200705-201009

main81110-02620iZRE152..GLXS200802-201009

main81110-02B30iZRE151,152..GL,GLI,GLXI201009-201301

main81110-02B31iZRE15#..GL,GLI,GLXI201301

main81110-02B40iZRE153201009-201301

sub81110-02B41

main81110-02F90iZRE152..GLI201203-201301

LIMITED '12

main81110-02F91iZRE152..GLI201303

LIMITED'13(1.8 LEATHER SEAT)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iZRE15#200705-201009

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2iZRE15#..GL,GLI,GLS,GLXI,PREM200705-201009

12V 51W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-02610iZRE15#..GL,GLI,GLS,GLXI,PREM200705-201009

main81130-02B30iZRE152..GLS,GLXS201009-201203

main81130-02B31iZRE15#..GL,GLI,GLXI201301

main81145-02620iZRE152..GLXS200802-201009

main81145-02B40iZRE153201009-201301

sub81145-02B41

main81130-02F90iZRE152..GLI201203-201301

LIMITED '12

main81130-02F91iZRE152..GLI201303

LIMITED'13(MANUAL AIR CONDITIONER)

81150HEADLAMP ASSY, LH

main81150-02610iZRE15#..GL,GLI,GLS,GLXI,PREM200705-201009

main81150-02620iZRE152..GLXS200802-201009

main81150-02B30iZRE151,152..GL,GLI,GLXI201009-201301

main81150-02B31iZRE15#..GL,GLI,GLXI201301

main81150-02B40iZRE153201009-201301

sub81150-02B41

main81150-02F90iZRE152..GLI201203-201301

LIMITED '12

main81150-02F91iZRE152..GLI201303

LIMITED'13(LEATHER SEAT)

81175UNIT ASSY, HEADLAMP, LH

main81170-02610iZRE15#..GL,GLI,GLS,GLXI,PREM200705-201009

main81170-02B30iZRE152..GLS,GLXS201009-201203

main81170-02B31iZRE15#..GL,GLI,GLXI201301

main81185-02620iZRE152..GLXS200802-201009

main81185-02B40iZRE153201009-201301

sub81185-02B41

main81170-02F90iZRE152..GLI201203-201301

LIMITED '12

main81170-02F91iZRE152..GLI201303

LIMITED'13(1.8 LEATHER SEAT)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12050iZRE15#200705-201009

main81193-12120iZRE152..GLS,GLXS201009-201203

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12050iZRE15#200705-201009

main81194-12110iZRE15#..GL,GLI,GLX,GLXI201009

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12050iZRE15#200705-201009

main81195-12140iZRE15#..GL,GLI,GLX,GLXI201009

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12050iZRE15#200705-201009

main81196-12140iZRE15#..GL,GLI,GLX,GLXI201009

81197BRACKET, HEADLAMP, LOWER RH

main81197-12050iZRE15#200705-201009

main81197-12100iZRE152..GLS,GLXS201009-201203

81198BRACKET, HEADLAMP, LWR LH

main81198-12050iZRE15#200705-201009

main81198-12110iZRE15#..GL,GLI,GLX,GLXI201009

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZRE15#200705-201009

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81074×2iZRE15#200705-201009

sub90069-81068

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iZRE15#200705-201009

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90069-81075×2iZRE15#200705-201009

9010906382

main90109-06382

9015950388

main90159-50388

9017906127

main90179-06127

9018905142

main90189-05142

20 parts on this diagram · 4 diagrams in section
