MUDGUARD & SPOILER

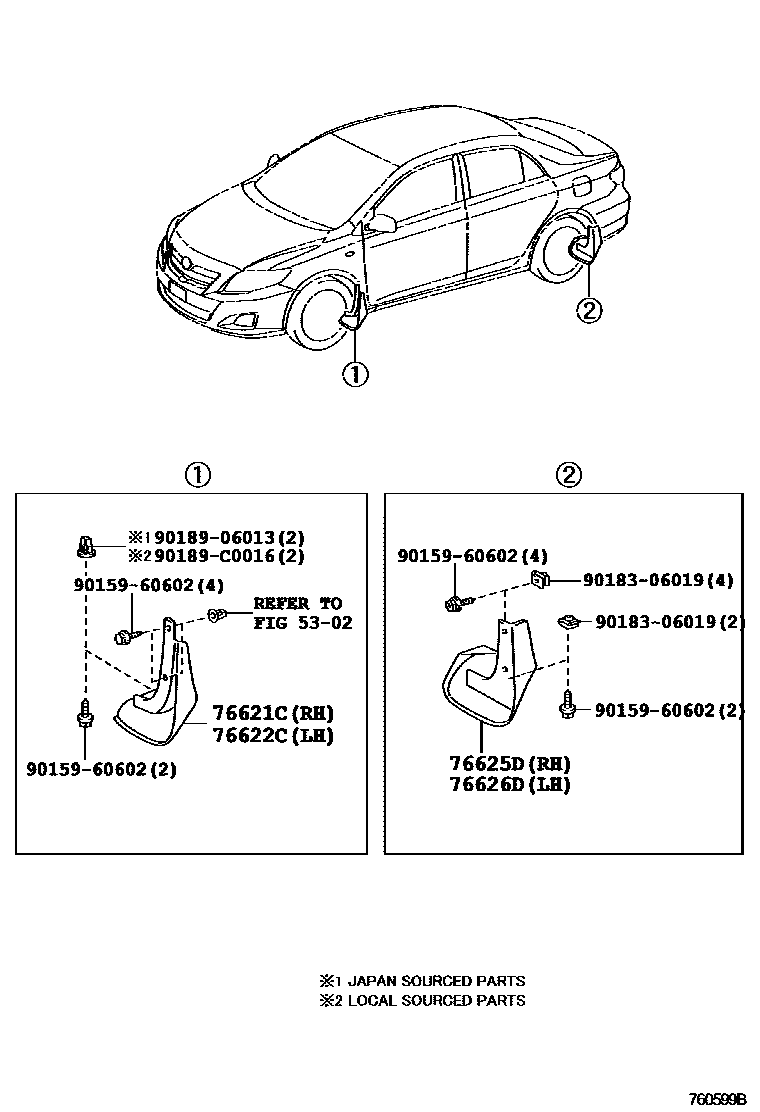

Parts diagram

5302

76621CMUDGUAD, FRONT FENDER, RH

main76621-02170-A0i200705-201301

SUPER WHITE 2,040

main76621-02170-B0i200705-201301

SILVER ME.,1F7

main76621-02170-B1i201009-201301

GRAY ME.,1G3

main76621-02170-C0i200705-201301

BLACK MC.,209

main76621-02170-D0i200705-201301

RED M.M.,3R3

main76621-02170-E0i200705-201009

BEIGE M. M.,4Q2

main76621-02170-E1i201203-201301

DK. BROWN M.M.,4U3

main76621-02170-J0i200705-201301

DK.BLUE MC.,8S6

76622CMUDGUARD, FRONT FENDER, LH

main76622-02170-A0i200705-201301

SUPER WHITE 2,040

main76622-02170-B0i200705-201301

SILVER ME.,1F7

main76622-02170-B1i201009-201301

GRAY ME.,1G3

main76622-02170-C0i200705-201301

BLACK MC.,209

main76622-02170-D0i200705-201301

RED M.M.,3R3

main76622-02170-E0i200705-201009

BEIGE M. M.,4Q2

main76622-02170-E1i201203-201301

DK. BROWN M.M.,4U3

main76622-02170-J0i200705-201301

DK.BLUE MC.,8S6

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-02200-A0i200705-201009

SUPER WHITE 2,040

main76625-02200-B0i200705-201009

SILVER ME.,1F7

main76625-02200-C0i200705-201009

BLACK MC.,209

main76625-02200-D0i200705-201009

RED M.M.,3R3

main76625-02200-E0i200705-201009

BEIGE M. M.,4Q2

main76625-02200-J0i200705-201009

DK.BLUE MC.,8S6

main76625-02210-A0i201009-201301

SUPER WHITE 2,040

main76625-02210-B0i201009-201301

SILVER ME.,1F7

main76625-02210-B1i201009-201301

GRAY ME.,1G3

main76625-02210-C0i201009-201301

BLACK MC.,209

main76625-02210-D0i201009-201301

RED M.M.,3R3

main76625-02210-E0i201203-201301

DK. BROWN M.M.,4U3

main76625-02210-J0i201009-201301

DK.BLUE MC.,8S6

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-02200-A0i200705-201009

SUPER WHITE 2,040

main76626-02200-B0i200705-201009

SILVER ME.,1F7

main76626-02200-C0i200705-201009

BLACK MC.,209

main76626-02200-D0i200705-201009

RED M.M.,3R3

main76626-02200-E0i200705-201009

BEIGE M. M.,4Q2

main76626-02200-J0i200705-201009

DK.BLUE MC.,8S6

main76626-02210-A0i201009-201301

SUPER WHITE 2,040

main76626-02210-B0i201009-201301

SILVER ME.,1F7

main76626-02210-B1i201009-201301

GRAY ME.,1G3

main76626-02210-C0i201009-201301

BLACK MC.,209

main76626-02210-D0i201009-201301

RED M.M.,3R3

main76626-02210-E0i201203-201301

DK. BROWN M.M.,4U3

main76626-02210-J0i201009-201301

DK.BLUE MC.,8S6

9015960602

main90159-60602

9018306019

main90183-06019

9018906013

main90189-06013

90189C0016

main90189-C0016

9 parts on this diagram · 3 diagrams in section
