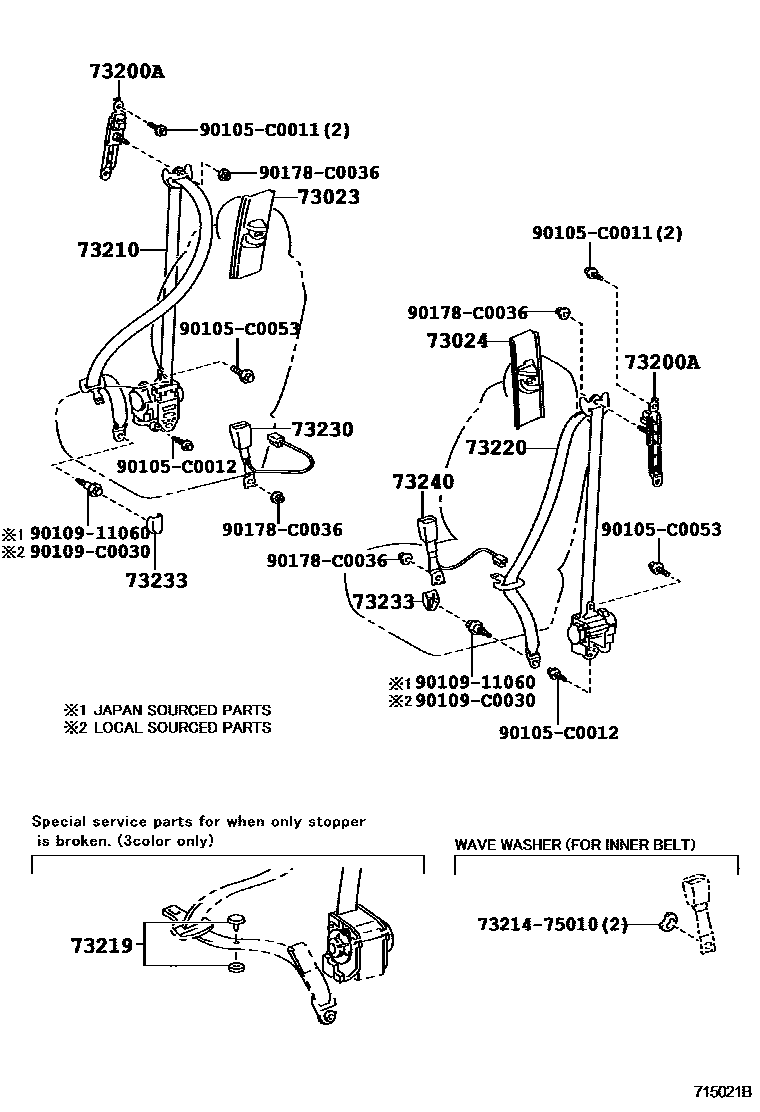

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06110-B1iZRE15#200802-201009

LT.GRAY,TRIM1#

main73023-06110-E0iZRE15#200705-201009

GREGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06090-B1iZRE15#..GL,GLI201303-201406

LT.GRAY,TRIM1#

main73024-06090-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06080×2iZRE15#200705-201009

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02330-B0iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

main73210-02330-B1iZRE152,153..GLS,GLX,GLXS201009-201203

DK.GRAY,TRIM1#

main73210-02330-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iZRE15#200705-201009

BLACK

main73219-33020iZRE15#200705-201009

GRAY

main73219-33030iZRE152..GLS,GLXS201009-201203

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02300-B0iZRE15#200802-201009

DK.GRAY,TRIM1#

main73220-02300-B1iZRE152,153..GLS,GLX,GLXS201009-201203

DK.GRAY,TRIM1#

main73220-02300-E0iZRE15#200705-201009

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02430-B0iZRE15#..GL,GLI,GLX201009-201203

DK.GRAY,TRIM1#

main73230-02430-E0iZRE15#200705-201009

GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-12050-B0×2iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

sub73233-60020

main73233-12050-E0×2iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

sub73233-60020

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02410-B0iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

main73230-02410-E0iZRE151,152..GL,GLI201009-201406

GREGE,TRIM4#

main73230-02420-B0iZRE152..GLXI,GLXS,PREM200802-201009

DK.GRAY,TRIM1#

main73230-02420-E0iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105C0011

main90105-C0011

90105C0012

main90105-C0012

90105C0053

main90105-C0053

9010911060

main90109-11060

90109C0030

main90109-C0030

90178C0036

main90178-C0036

16 parts on this diagram · 2 diagrams in section
