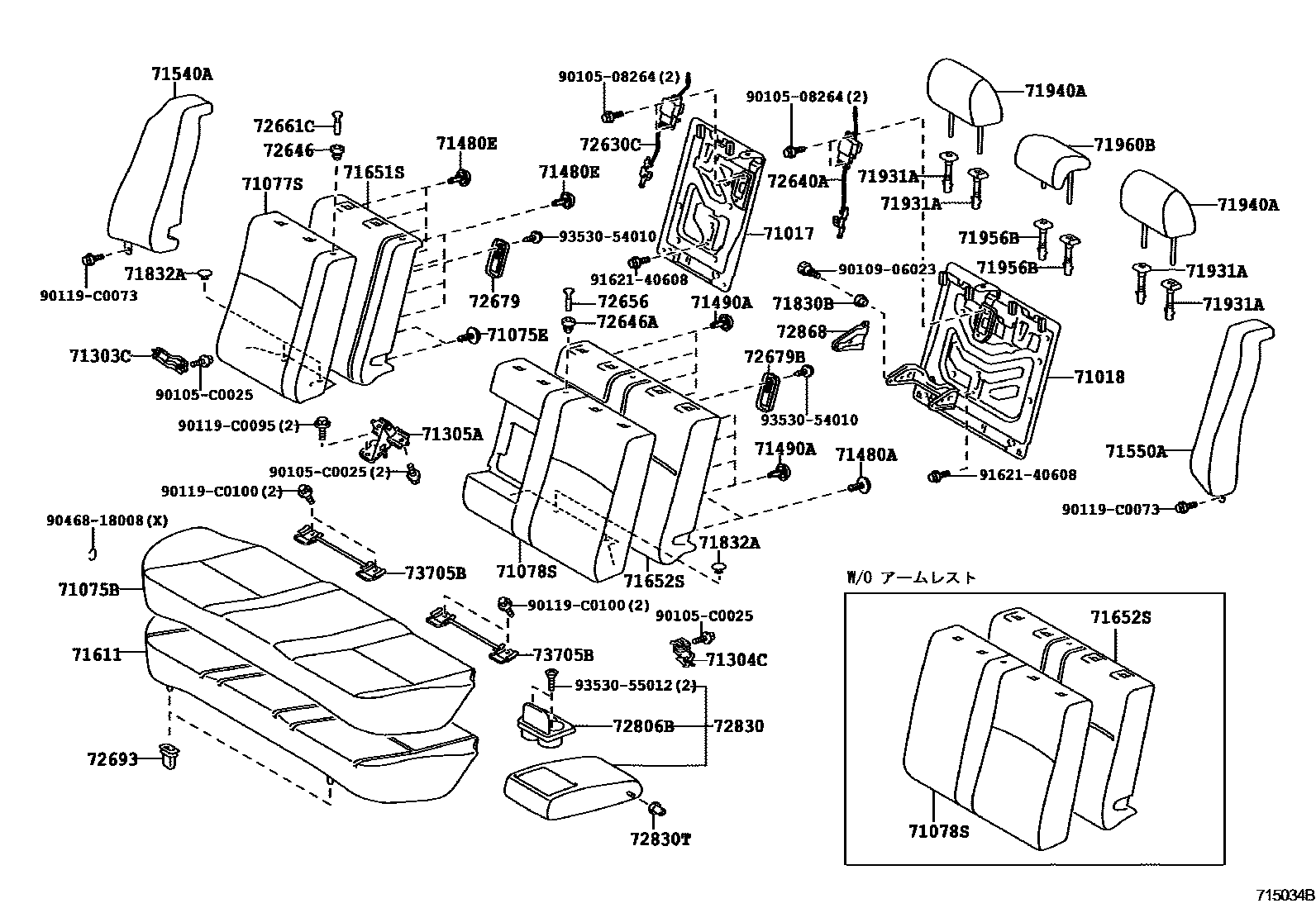

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-02280iZRE152..GLS,GLXS200705-201203

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-02160iZRE151200705-201009

main71018-02170iZRE151201303

LIMITED'13(LEATHER SEAT)

main71018-02170iZRE152200705-201203

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-02A90-B0iZRE152..GLS200802-201007

DK.GRAY,TRIM1#

sub71075-02A91

main71075-02A91-B0iZRE152..GLS201008-201009

DK.GRAY,TRIM1#

main71075-02D20-E3iZRE151200705-201007

GREGE,TRIM4#

sub71075-02D21

main71075-02D21-E3iZRE151201008-201009

GREGE,TRIM4#

main71075-02D30-E2iZRE152..GLI200705-201007

GREGE,TRIM4#

main71075-02D31-E2iZRE152..GLI201008-201009

GREGE,TRIM4#

sub71075-02D30

main71075-02D40-B3iZRE152..GLXI,GLXS,PREM200802-201009

DK.GRAY,TRIM1#

main71075-02D40-E2iZRE152..GLXI,GLXS,PREM200705-201009

GREGE,TRIM4#

main71075-02L70-E3iZRE152..GLI201009-201406

GREGE,TRIM4#

main71075-02N90-E0iZRE151201009-201406

GREGE,TRIM4#

main71075-02P90-B3iZRE152..GLS201009-201203

DK.GRAY,TRIM1#

main71075-02Q00-B0iZRE151201303-201406

LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

main71075-02Q00-B0iZRE152..GLXS201009-201203

DK.GRAY,TRIM1#

main71075-02Q00-B0iZRE151201303-201406

LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

main71075-02Q00-E0iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

main71075-02Q00-E0iZRE151201303-201406

LIMITED'13(LEATHER SEAT),GREGE,TRIM4#

main71075-02Q00-E0iZRE151201303-201406

LIMITED'13(1.8 LEATHER SEAT),GREGE,TRIM4#

71075ECLIP(FOR REAR SEAT)

main90467-07080-C0iZRE15#200705-201406

BLACK

sub90467-07080

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-02E90-E4iZRE151200705-201007

GREGE,TRIM4#

sub71077-02E91

main71077-02E91-E4iZRE151201008-201009

GREGE,TRIM4#

main71077-02F00-E3iZRE152..GLI200705-201007

GREGE,TRIM4#

main71077-02F01-E3iZRE152..GLI201008-201009

GREGE,TRIM4#

sub71077-02F00

main71077-02F10-B3iZRE152..GLXI,GLXS,PREM200802-201009

DK.GRAY,TRIM1#

main71077-02F10-E3iZRE152..GLXI,GLXS,PREM200705-201009

GREGE,TRIM4#

main71077-02J40-E3iZRE151201009-201406

GREGE,TRIM4#

main71077-02L30-B0iZRE152..GLS200802-201007

DK.GRAY,TRIM1#

sub71077-02L31

main71077-02L31-B0iZRE152..GLS201008-201009

DK.GRAY,TRIM1#

main71077-02P50-E6iZRE152..GLI201009-201406

GREGE,TRIM4#

main71077-02T30-B3iZRE152..GLS201009-201203

DK.GRAY,TRIM1#

main71077-02T50-B0iZRE152..GLXS201009-201203

DK.GRAY,TRIM1#

main71077-02T50-B1iZRE152..GLI201303-201406

LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

main71077-02T50-B1iZRE152..GLI201303-201406

LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

main71077-02T50-E1iZRE151201303-201406

LIMITED'13(1.8 LEATHER SEAT),GREGE,TRIM4#

main71077-02T50-E1iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

main71077-02T50-E1iZRE151201303-201406

LIMITED'13(LEATHER SEAT),GREGE,TRIM4#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-02800-B0iZRE152..GLS200802-201007

DK.GRAY,TRIM1#

sub71078-02801

main71078-02801-B0iZRE152..GLS201008-201009

DK.GRAY,TRIM1#

main71078-02B10-E4iZRE151200705-201007

GREGE,TRIM4#

sub71078-02B11

main71078-02B11-E4iZRE151201008-201009

GREGE,TRIM4#

main71078-02B20-E3iZRE152..GLI200705-201007

GREGE,TRIM4#

main71078-02B21-E3iZRE152..GLI201008-201009

GREGE,TRIM4#

sub71078-02B20

main71078-02B30-B3iZRE152..GLXI,GLXS,PREM200802-201009

DK.GRAY,TRIM1#

main71078-02B30-E3iZRE152..GLXI,GLXS,PREM200705-201009

GREGE,TRIM4#

main71078-02D30-E3iZRE151201009-201406

GREGE,TRIM4#

main71078-02J00-E5iZRE152..GLI201009-201406

GREGE,TRIM4#

main71078-02L00-B3iZRE152..GLS201009-201203

DK.GRAY,TRIM1#

main71078-02L10-B0iZRE152..GLXS201009-201203

DK.GRAY,TRIM1#

main71078-02L10-B1iZRE151201303-201406

LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

main71078-02L10-B1iZRE152..GLI201303-201406

LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

main71078-02L10-E1iZRE152..GLI201303-201406

LIMITED'13(LEATHER SEAT),GREGE,TRIM4#

main71078-02L10-E1iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

main71078-02L10-E1iZRE151201303-201406

LIMITED'13(1.8 LEATHER SEAT),GREGE,TRIM4#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-02100iZRE15#..GL,GLI,GLX,GLXI200705-201203

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71303-02100iZRE15#200705-201203

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-02100iZRE15#..GL,GLI,GLX,GLXI200705-201203

71480ACLIP (FOR REAR SEATBACK)

main90467-07080-C0iZRE15#200705-201406

BLACK

sub90467-07080

71480ECLIP, REAR SEATBACK, RH

main90467-05164iZRE152..GLS201009-201109

main90467-05164-C0iZRE15#200705-201109

BLACK

sub90467-05164

main90467-C0016-C0iZRE15#201109-201406

BLACK

71490ACLIP, REAR SEATBACK, LH

main90467-05164iZRE152..GLS201009-201109

main90467-05164-C0iZRE15#200705-201109

BLACK

sub90467-05164

main90467-C0016-C0iZRE15#201109-201406

BLACK

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-02470-B0iZRE152..GLS200802-201007

DK.GRAY,TRIM1#

sub71540-02471

main71540-02471-B0iZRE152..GLS201008-201009

DK.GRAY,TRIM1#

main71540-02501-B0iZRE152..GLXS200802-201009

DK.GRAY,TRIM1#

main71540-02501-E0iZRE152..GLXI,PREM200705-201009

GRAGE,TRIM4#

main71540-02511-E0iZRE151200705-201007

GRAGE,TRIM4#

sub71540-02512

main71540-02512-E0iZRE151201008-201009

GRAGE,TRIM4#

main71540-02521-E0iZRE152..GLI200705-201007

GRAGE,TRIM4#

main71540-02522-E0iZRE152..GLI201008-201009

GRAGE,TRIM4#

sub71540-02521

main71540-02680-B1iZRE152..GLS201009-201203

DK.GRAY,TRIM1#

main71540-02750-E3iZRE152..GLI201009-201406

GREGE,TRIM4#

main71540-02780-E1iZRE151201009-201406

GREGE,TRIM4#

main71540-02830-B0iZRE152..GLI201303-201406

LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

main71540-02830-B0iZRE152..GLXS201009-201203

DK.GRAY,TRIM1#

main71540-02830-B0iZRE151201303-201406

LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

main71540-02830-E0iZRE152..GLI201303-201406

LIMITED'13(1.8 LEATHER SEAT),GREGE,TRIM4#

main71540-02830-E0iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

main71540-02830-E0iZRE151201303-201406

LIMITED'13(LEATHER SEAT),GREGE,TRIM4#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-02471-B0iZRE152..GLXS200802-201009

DK.GRAY,TRIM1#

main71550-02471-E0iZRE152..GLXI,PREM200705-201009

GRAGE,TRIM4#

main71550-02481-E0iZRE152..GLI200705-201007

GRAGE,TRIM4#

main71550-02482-E0iZRE152..GLI201008-201009

GRAGE,TRIM4#

sub71550-02481

main71550-02491-E0iZRE151200705-201007

GRAGE,TRIM4#

sub71550-02492

main71550-02492-E0iZRE151201008-201009

GRAGE,TRIM4#

main71550-02670-B0iZRE152..GLS200802-201007

DK.GRAY,TRIM1#

sub71550-02671

main71550-02671-B0iZRE152..GLS201008-201009

CK.GRAY,TRIM1#

main71550-02750-E3iZRE152..GLI201009-201406

GREGE,TRIM4#

main71550-02770-E1iZRE151201009-201406

GREGE,TRIM4#

main71550-02790-B1iZRE152..GLS201009-201203

DK.GRAY,TRIM1#

main71550-02820-B0iZRE152..GLI201303-201406

LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

main71550-02820-B0iZRE152..GLXS201009-201203

DK.GRAY,TRIM1#

main71550-02820-B0iZRE151201303-201406

LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

main71550-02820-E0iZRE152..GLI201303-201406

LIMITED'13(1.8 LEATHER SEAT),GREGE,TRIM4#

main71550-02820-E0iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

main71550-02820-E0iZRE151201303-201406

LIMITED'13(LEATHER SEAT),GREGE,TRIM4#

71611PAD, REAR SEAT CUSHION

main71503-02140iZRE152..GLS,GLXS200705-201203

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-02280iZRE15#200705-201203

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-02270iZRE151200705-201009

main71652-02290iZRE152..GLS,GLXS200705-201203

main71652-02290iZRE151201303

LIMITED'13(LEATHER SEAT)

71830BBUSH(FOR REAR SEAT ARMREST)

main90386-08077iZRE152200705-201203

main90386-08077iZRE151201303

LIMITED'13(LEATHER SEAT)

71832ACLIP, REAR SEATBACK CARPET OR MAT

main90467-09156-C0iZRE15#200705-201406

BLACK

71931ASUPPORT, REAR SEAT HEADREST

main71956-47010-B2iZRE152..GLI201303-201406

W/O(LOCK),LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

sub71956-02040

sub71956-47010

main71956-47010-B2iZRE152..GLS,GLXI,GLXS,PREM200802-201203

W/O(LOCK),DK.GRAY,TRIM1#

sub71956-02040

sub71956-47010

main71956-47010-B2iZRE151201303-201406

W/O(LOCK),LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

sub71956-02040

sub71956-47010

main71956-47010-E2iZRE15#..GL,GLI,GLX,GLXI200705-201406

W/O(LOCK),GREGE,TRIM4#

sub71956-02040

sub71956-47010

main71970-47010-B2iZRE152..GLS200802-201203

W(LOCK),DK.GRAY,TRIM1#

sub71970-02040

sub71970-47010

main71970-47010-B2iZRE151201303-201406

W(LOCK),LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

sub71970-02040

sub71970-47010

main71970-47010-B2iZRE152..GLI201303-201406

W(LOCK),LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

sub71970-02040

sub71970-47010

main71970-47010-E2iZRE15#..GL,GLI,GLX,GLXI200705-201406

W(LOCK),GREGE,TRIM4#

sub71970-02040

sub71970-47010

71940AHEADREST ASSY, REAR SEAT

main71940-02850-E1iZRE151200705-201007

GREGE,TRIM4#

sub71940-02851

main71940-02851-E2iZRE151201008-201009

GREGE,TRIM4#

main71940-02860-E1iZRE152..GLI200705-201007

GREGE,TRIM4#

main71940-02861-E4iZRE152..GLI201008-201009

GREGE,TRIM4#

sub71940-02860

main71940-02870-B1iZRE152..GLXI,GLXS,PREM200802-201009

DK.GRAY,TRIM1#

sub71940-02870

main71940-02870-B2iZRE151201303-201406

LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

sub71940-02870

main71940-02870-B2iZRE152..GLI201303-201406

LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

sub71940-02870

main71940-02870-B2iZRE152..GLXS201009-201203

DK.GRAY,TRIM1#

sub71940-02870

main71940-02870-E0iZRE152..GLXI,GLXS,PREM200705-201009

GREGE,TRIM4#

sub71940-02870

main71940-02870-E1iZRE151201303-201406

LIMITED'13(1.8 LEATHER SEAT),GREGE,TRIM4#

sub71940-02870

main71940-02870-E1iZRE151201303-201406

LIMITED'13(LEATHER SEAT),GREGE,TRIM4#

sub71940-02870

main71940-02870-E1iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

sub71940-02870

main71940-02E00-B0iZRE152..GLS200802-201007

DARK GRAY,TRIM1#

sub71940-02E01

main71940-02E01-B2iZRE152..GLS201008-201009

DARK GRAY,TRIM1#

main71940-02E80-E1iZRE151201009-201406

GREGE,TRIM4#

main71940-02F20-E0iZRE152..GLI201009-201406

GREGE,TRIM4#

main71940-02F40-B0iZRE152..GLS201009-201203

DARK GRAY,TRIM1#

71956BSUPPORT, REAR SEAT HEADREST

main71956-47010-B2iZRE152..GLI201303-201406

W/O(LOCK),LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

sub71956-02040

sub71956-47010

main71956-47010-B2iZRE152..GLI201303-201406

W/O(LOCK),LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

sub71956-02040

sub71956-47010

main71956-47010-B2iZRE152..GLS,GLXI,GLXS,PREM200802-201203

W/O(LOCK),DK.GRAY,TRIM1#

sub71956-02040

sub71956-47010

main71956-47010-E2iZRE15#..GL,GLI,GLXI,GLXS,PREM200705-201406

W/O(LOCK),GREGE,TRIM4#

sub71956-02040

sub71956-47010

main71970-47010-B2iZRE151201303-201406

W(LOCK),LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

sub71970-02040

sub71970-47010

main71970-47010-B2iZRE152..GLS,GLXI,GLXS,PREM200802-201203

W(LOCK),DK.GRAY,TRIM1#

sub71970-02040

sub71970-47010

main71970-47010-B2iZRE151201303-201406

W(LOCK),LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

sub71970-02040

sub71970-47010

main71970-47010-E2iZRE15#..GL,GLI,GLX,GLXI200705-201406

W(LOCK),GREGE,TRIM4#

sub71970-02040

sub71970-47010

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-02320-B0iZRE152..GLS200802-201007

DARK GRAY,TRIM1#

sub71960-02321

main71960-02321-B2iZRE152..GLS201008-201009

DARK GRAY,TRIM1#

main71960-02420-E1iZRE151200705-201007

GREGE,TRIM4#

sub71960-02421

main71960-02421-E2iZRE151201008-201009

GREGE,TRIM4#

main71960-02430-E1iZRE152..GLI200705-201007

GREGE,TRIM4#

main71960-02431-E4iZRE152..GLI201008-201009

GREGE,TRIM4#

sub71960-02430

main71960-02440-B1iZRE152..GLXI,GLXS,PREM200802-201009

DK.GRAY,TRIM1#

sub71960-02440

main71960-02440-B2iZRE152..GLI201303-201406

LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

sub71960-02440

main71960-02440-B2iZRE152..GLXS201009-201203

DK.GRAY,TRIM1#

sub71960-02440

main71960-02440-B2iZRE152..GLI201303-201406

LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

sub71960-02440

main71960-02440-E0iZRE152..GLXI,GLXS,PREM200705-201009

GREGE,TRIM4#

sub71960-02440

main71960-02440-E1iZRE152..GLI201303-201406

LIMITED'13(1.8 LEATHER SEAT),GREGE,TRIM4#

sub71960-02440

main71960-02440-E1iZRE151201303-201406

LIMITED'13(LEATHER SEAT),GREGE,TRIM4#

sub71960-02440

main71960-02440-E1iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

sub71960-02440

main71960-02850-E1iZRE151201009-201406

GREGE,TRIM4#

main71960-02870-E0iZRE152..GLI201009-201406

GREGE,TRIM4#

main71960-02890-B0iZRE152..GLS201009-201203

DARK GRAY,TRIM1#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-12350iZRE15#200705-201203

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-12320iZRE15#..GL,GLI,GLX,GLXI200705-201203

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33010-B4iZRE15#..GL,GLI200802-201406

DK.GRAY,TRIM1#

sub72646-33010

main72646-33010-E3iZRE15#..GL,GLI,GLXI,GLXS,PREM200705-201406

GREGE,TRIM4#

sub72646-33010

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-33010-B4iZRE152..GLS,GLXI,GLXS,PREM200802-201406

DK.GRAY,TRIM1#

sub72646-33010

main72646-33010-E3iZRE15#..GL,GLI,GLX,GLXI200705-201406

GREGE,TRIM4#

sub72646-33010

72656BUTTON, REAR SEATBACK STOP RELEASE

main72661-02040-B0iZRE152..GLXI,PREM200705-200710

DK.GRAY,TRIM1#

sub72661-32030

main72661-02040-E0iZRE15#200705-200710

GREGE,TRIM4#

sub72661-32030

main72661-32030-B3iZRE153200711-201406

DK.GRAY,TRIM1#

sub72661-32030

main72661-32030-E2iZRE15#..GL,GLI,GLXI,GLXS,PREM200711-201406

GREGE,TRIM4#

sub72661-32030

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-02040-B0iZRE152..GLXI,PREM200705-200710

DK.GRAY,TRIM1#

sub72661-32030

main72661-02040-E0iZRE15#200705-200710

GREGE,TRIM4#

sub72661-32030

main72661-32030-B3iZRE153200711-201406

DK.GRAY,TRIM1#

sub72661-32030

main72661-32030-E2iZRE15#..GL,GLI,GLX,GLXI200711-201406

GREGE,TRIM4#

sub72661-32030

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-02010-B0iZRE15#..GL,GLI,GLX200705-201406

DK.GRAY,TRIM4#

main72679-02010-B0iZRE152200705-201406

DK.GRAY,TRIM1#,4#

main72679-02010-B0iZRE152..GLS,GLXS201009-201203

DK.GRAY,TRIM1#

72679BBEZEL, REAR SEATBACK LOCK CONTROL

main72679-02010-B0iZRE152200705-201406

DK.GRAY,TRIM1#,4#

main72679-02010-B0iZRE152200705-201406

DK.GRAY,TRIM4#

main72679-02010-B0iZRE152..GLS,GLXS201009-201203

DK.GRAY,TRIM1#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-02030iZRE15#200705-201203

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-02040-B0iZRE152..GLS,GLXS200802-201203

DK.GRAY,TRIM1#

main72806-02040-B0iZRE151201303-201406

LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

main72806-02040-B0iZRE151201303-201406

LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

main72806-02040-E0iZRE152..GLI,GLXI,PREM200705-201406

GREGE,TRIM4#

main72806-02040-E0iZRE151201303-201406

LIMITED'13(LEATHER SEAT),GREGE,TRIM4#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-02321-B0iZRE152..GLS200802-201007

DARK GRAY,TRIM1#

sub72830-02322

main72830-02322-B0iZRE152..GLS201008-201009

DARK GRAY,TRIM1#

main72830-02451-E1iZRE152..GLI200705-201007

GREGE,TRIM4#

main72830-02452-E1iZRE152..GLI201008-201009

GREGE,TRIM4#

sub72830-02451

main72830-02461-B1iZRE152..GLXS200802-201009

DK.GRAY,TRIM1#

main72830-02461-E0iZRE152..GLXI,PREM200705-201009

GREGE,TRIM4#

main72830-02720-B0iZRE151201303-201406

LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

main72830-02720-B0iZRE152..GLI201303-201406

LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

main72830-02720-B0iZRE152..GLXS201009-201203

DK.GRAY,TRIM1#

main72830-02720-E0iZRE151201303-201406

LIMITED'13(1.8 LEATHER SEAT),GREGE,TRIM4#

main72830-02720-E0iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

main72830-02720-E0iZRE151201303-201406

LIMITED'13(LEATHER SEAT),GREGE,TRIM4#

main72830-02880-E1iZRE152..GLI201009-201406

GREGE,TRIM4#

main72830-02A20-B0iZRE152..GLS201009-201203

DK.GRAY,TRIM1#

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main90386-06011iZRE152200705-201203

main90386-06011iZRE151201303

LIMITED'13(LEATHER SEAT)

72868COVER, CENTER ARMREST HINGE, RH

main72868-02020-B0iZRE152..GLI201303-201406

LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#

main72868-02020-B0iZRE152..GLI201303-201406

LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#

main72868-02020-B0iZRE152..GLS,GLXI,GLXS,PREM200802-201203

DK.GRAY,TRIM1#

main72868-02020-E0iZRE152..GLI,GLXI,GLXS,PREM200705-201406

GREGE,TRIM4#

main72868-02020-E0iZRE151201303-201406

LIMITED'13(LEATHER SEAT),GREGE,TRIM4#

73705BBRACKET SUB-ASSY, CROSS ANCHOR

main73705-12070iZRE152..GLS,GLXS200705-201203

9010508264

main90105-08264

90105C0025

main90105-C0025

9010906023

main90109-06023

90119C0073

main90119-C0073

90119C0095

main90119-C0095

90119C0100

main90119-C0100

9046818008

main90468-18008

9162140608

main91621-40608

9353054010

main93530-54010

9353055012

main93530-55012

47 parts on this diagram · 1 diagram in section
