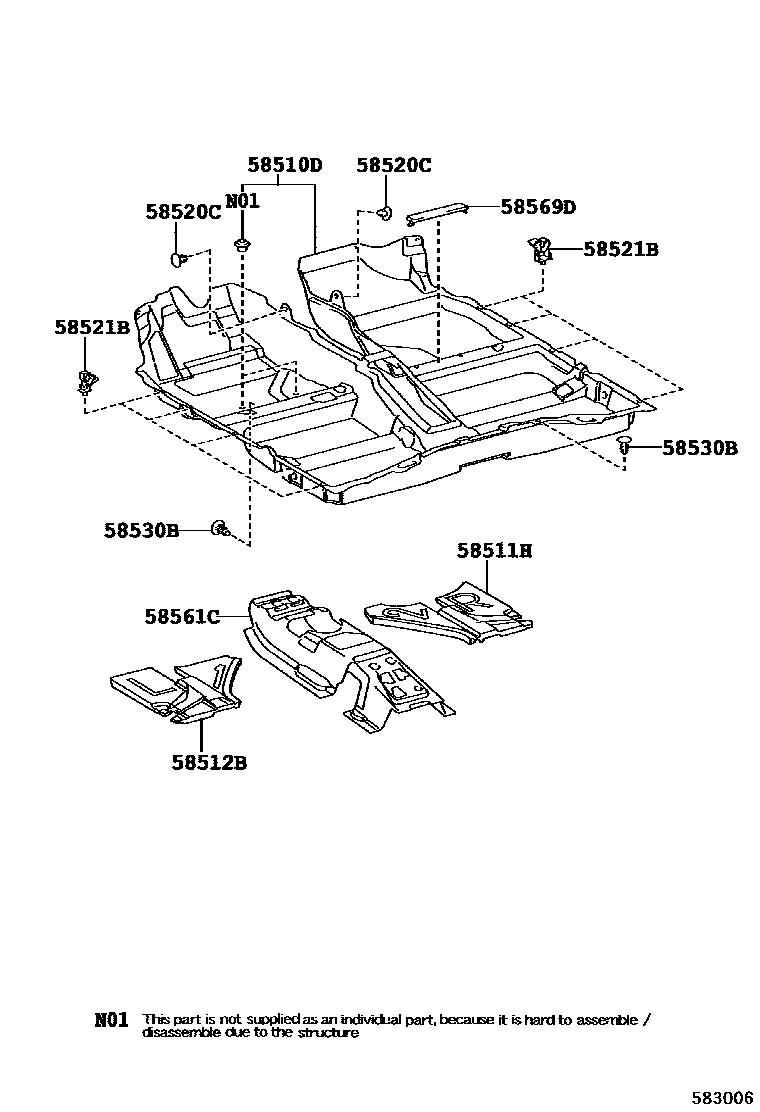

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR MAT

58510DCARPET ASSY, FLOOR, FRONT

main58510-02A81-B1iZRE152..GLS,GLXS200802-201304

DK. GREY,TRIM1#

sub58510-02A82

main58510-02A81-E0iZRE15#..GL,GLI,GLXI200705-201304

GREGE,TRIM4#

sub58510-02A82

main58510-02A82-B1iZRE15#..GL,GLI201304-201406

DK. GREY,TRIM1#

main58510-02A82-E0iZRE15#201304-201406

GREGE,TRIM4#

main58510-02B41-E0iZRE153200705-201301

GREGE,TRIM4#

58511HMAT, FLOOR, FRONT RH

main58512-02050iZRE15#200705-201203

sub58512-02051

58512BMAT, FLOOR, FRONT LH

main58511-02060iZRE152..GLS,GLXS200705-201203

sub58511-02061

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2iZRE15#200705-201107

DK.GRAY

sub90467-05164¥110

main90467-C0016-B2iZRE152..GLS,GLXS201107-201203

DK.GRAY,TRIM1#

main90467-C0016-B2iZRE151,152..GL,GLI201107-201406

DK.GRAY,TRIM1#,4#

main90467-C0016-B2iZRE151,152..GL,GLI201107-201406

DK.GRAY,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-02070iZRE15#200705-201203

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iZRE151,152..GL,GLI201009-201406

DK.GRAY,TRIM4#

sub90467-07049¥90

main90467-07049-B7iZRE15#..GL,GLI,GLXI,PREM200705-201406

DK.GRAY,TRIM1#,4#

sub90467-07049¥90

main90467-07049-B7iZRE152..GLS,GLXS200802-201203

DK.GRAY,TRIM1#

sub90467-07049¥90

main90467-07049-B7iZRE152..GLS,GLXS201009-201203

BACK MONITOR-WITH(GUIDE),DK.GRAY,TRIM1#,4#

sub90467-07049¥90

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02140iZRE15#200705-201203

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02020-B0iZRE15#..GL,GLI,GLXI,PREM200705-201406

DK.GRAY,TRIM1#,4#

sub58569-12010¥1,020

main58569-02020-B0iZRE152..GLS,GLXS200802-201203

DK.GRAY,TRIM1#

sub58569-12010¥1,020

main58569-02020-B0iZRE152..GLS,GLXS201009-201203

BACK MONITOR-WITH(GUIDE),DK.GRAY,TRIM1#,4#

sub58569-12010¥1,020

main58569-02020-B0iZRE151,152..GL,GLI201009-201406

DK.GRAY,TRIM4#

sub58569-12010¥1,020

8 parts on this diagram · 2 diagrams in section
