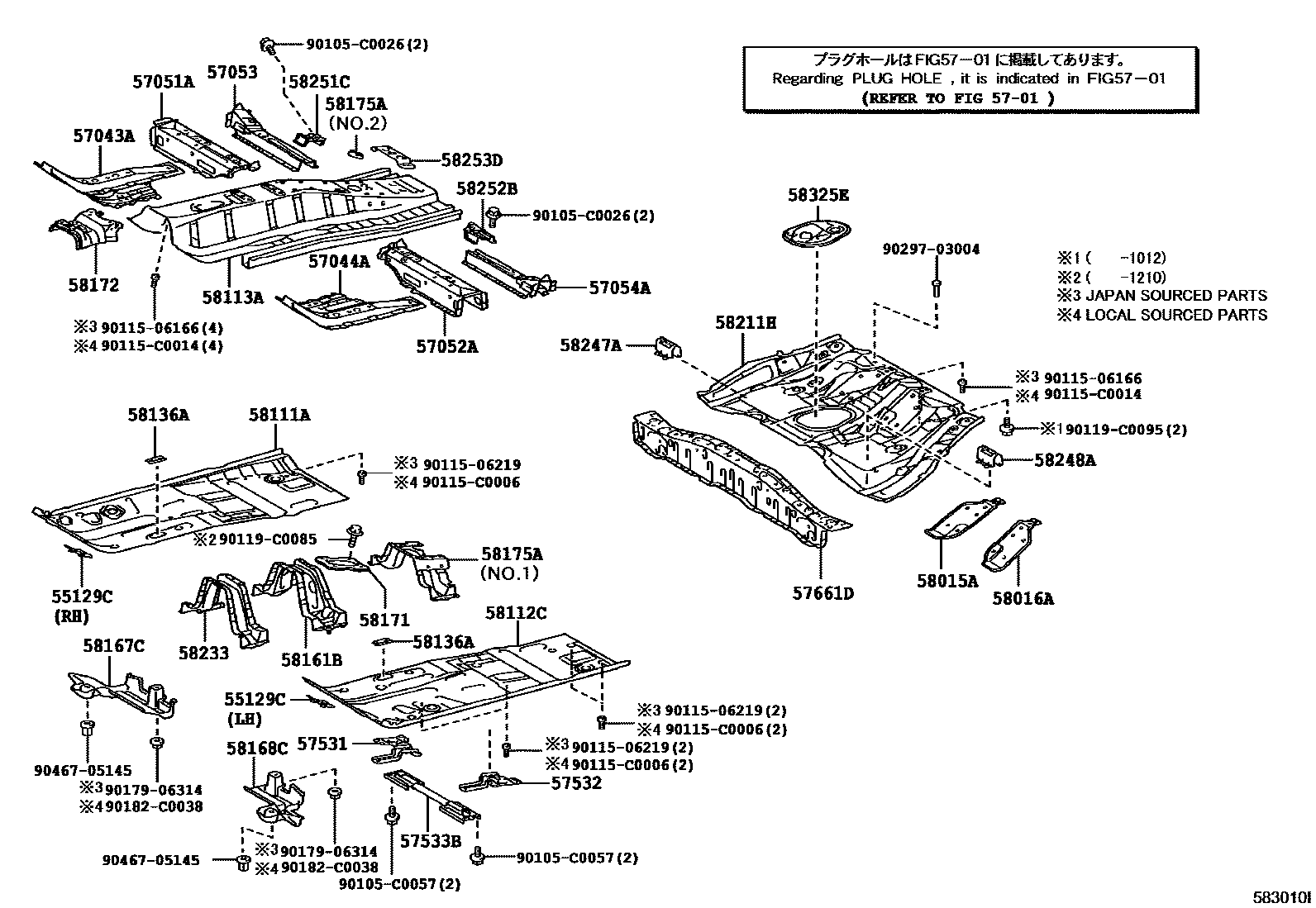

FLOOR PAN & LOWER BACK PANEL

0001 1FRONT FLOOR PANEL 0002 1REAR FLOOR PANEL

55129CCOVER, DASH PANEL HOLE

main55129-02040iZRE153200705-201301

RH

main55139-02030iZRE152..GLS,GLXS200705-201301

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-02020iZRE15#200705-201301

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-02020iZRE151,152..GL,GLI,GLXI200705-201301

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02040iZRE15#200705-201301

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02030iZRE15#200705-201301

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02040iZRE15#200705-201301

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02050iZRE15#200705-201301

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-02020iZRE15#200705-201301

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-02020iZRE151,152..GL,GLI,GLXI200705-201301

57533BBRACE, FRONT FLOOR, CENTER

main57501-02030iZRE15#..GL,GLI,GLXI201309

(L)

main57501-12020iZRE152..GLS,GLXS200705-201309

main57501-12020iZRE15#..GL,GLI,GLXI201309

(J)

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-02110iZRE153200705-201301

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02080iZRE15#200705-201305

main58015-02081iZRE15#201306-201312

sub58015-02082

main58015-02082iZRE15#201401-201406

sub58015-02083

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02090iZRE15#200705-201305

main58016-02091iZRE15#201306-201312

sub58016-02092

main58016-02092iZRE15#201401-201406

sub58016-02093

58111APAN, FRONT FLOOR, RH

main58111-02918iZRE151,152..GL,GLI,GLXI200705-201301

58112CPAN, FRONT FLOOR, LH

main58112-02902iZRE15#200705-201301

58113APANEL, FRONT FLOOR, CENTER

main58113-02901iZRE15#200705-201210

sub58113-02910

main58113-02910iZRE153201210-201301

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-02040iZRE15#200705-201301

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-02060iZRE15#200705-201301

58167CCOVER, FRONT FLOOR, CENTER RH

main58167-02020iZRE15#200705-201301

58168CCOVER, FRONT FLOOR, CENTER LH

main58168-02020iZRE153200705-201301

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-02070iZRE15#200705-201210

main58171-02071iZRE153201210-201301

58172BRACKET, COMPUTER MOUNTING, NO.3

main58173-02010iZRE151,152..GL,GLI,GLXI200705-201301

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main57805-02060iZRE15#200705-201301

NO.1

main58176-02030iZRE151,152..GL,GLI,GLXI200705-201301

NO.2

58211HPAN, CENTER FLOOR

main58211-02908iZRE151,152..GL,GLI,GLXI200705-201301

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-02030iZRE15#200705-201301

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-02040iZRE15#200705-201301

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-02040iZRE15#200705-201301

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-02040iZRE15#200705-201301

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-02020iZRE15#200705-201301

58253DBRACKET, PARKING BRAKE CABLE

main58253-02060iZRE151,152..GL,GLI,GLXI200705-201301

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02090iZRE15#200705-201301

90105C0026

main90105-C0026

90105C0057

main90105-C0057

9011506166

main90115-06166

9011506219

main90115-06219

90115C0006

main90115-C0006

90115C0014

main90115-C0014

90119C0085

main90119-C0085

90119C0095

main90119-C0095

9017906314

main90179-06314

90182C0038

main90182-C0038

9029703004

main90297-03004

9046705145

main90467-05145

44 parts on this diagram · 2 diagrams in section
