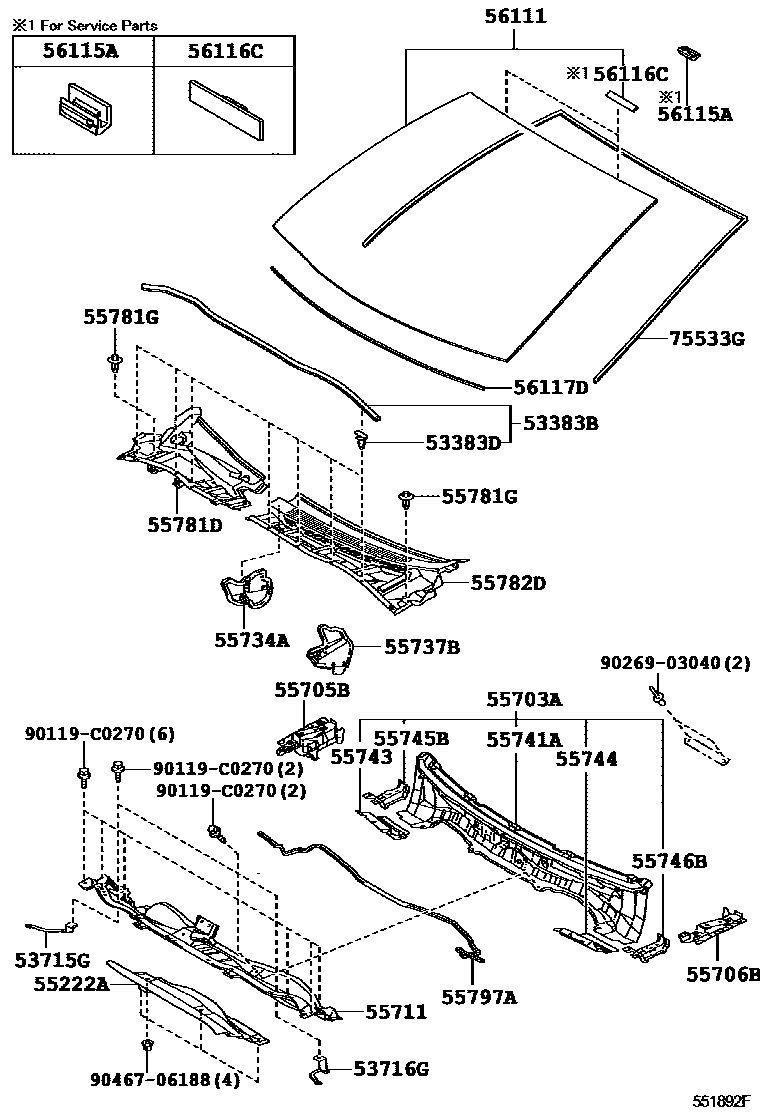

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53715GEXTENSION, FRONT FENDER APRON, REAR RH
53716GEXTENSION, FRONT FENDER APRON, REAR LH
55222AINSULATOR, DASH PANEL, OUTER CENTER
55703APANEL SUB-ASSY, COWL TOP, INNER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55734APLATE, WATER GUARD, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55741APANEL, COWL TOP, INNER
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55745BPANEL, COWL TOP INSIDE CORNER, RH
55746BPANEL, COWL TOP INSIDE CORNER, LH
55781DLOUVER, COWL TOP VENTILATOR, RH
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK
55782DLOUVER, COWL TOP VENTILATOR, LH
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN,MARK=TSG
*HSEAL,T=4.76,GREEN,MARK=TSG
*HSEAL,T=4.76,GREEN
*HSEAL,T=4.76,GREEN,MARK=TSG
*HSEAL,T=4.76,GREEN
*LAM,T=4.76,GREEN,MARK=FY
*HSEAL,T=4.76,GREEN,MARK=FY
*HSEAL,T=4.76,GREEN,MARK=FY
*HSEAL,T=4.76,GREEN,BACK MONITOR-WITH(IN INNER MIRROR),MARK=TSG
*HSEAL,T=4.76,GREEN,BACK MONITOR-WITH(IN INNER MIRROR),MARK=TSG
*HSEAL,T=4.76,GREEN,BACK MONITOR-WITH(IN INNER MIRROR),MARK=FY
*HSEAL,T=4.76,GREEN,BACK MONITOR-WITH(IN INNER MIRROR),MARK=FY
*LAM,T=4.76,GREEN,BACK MONITOR-WITH(IN INNER MIRROR),MARK=TSG
*LAM,T=4.76,GREEN,BACK MONITOR-WITH(IN INNER MIRROR),MARK=FY
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
L=1303
L=1303,BACK MONITOR-WITH(IN INNER MIRROR)
75533GMOULDING, WINDSHIELD, OUTSIDE
90119C0270
main90119-C0270
9026903040
main90269-03040
9046706188
main90467-06188
28 parts on this diagram · 1 diagram in section
