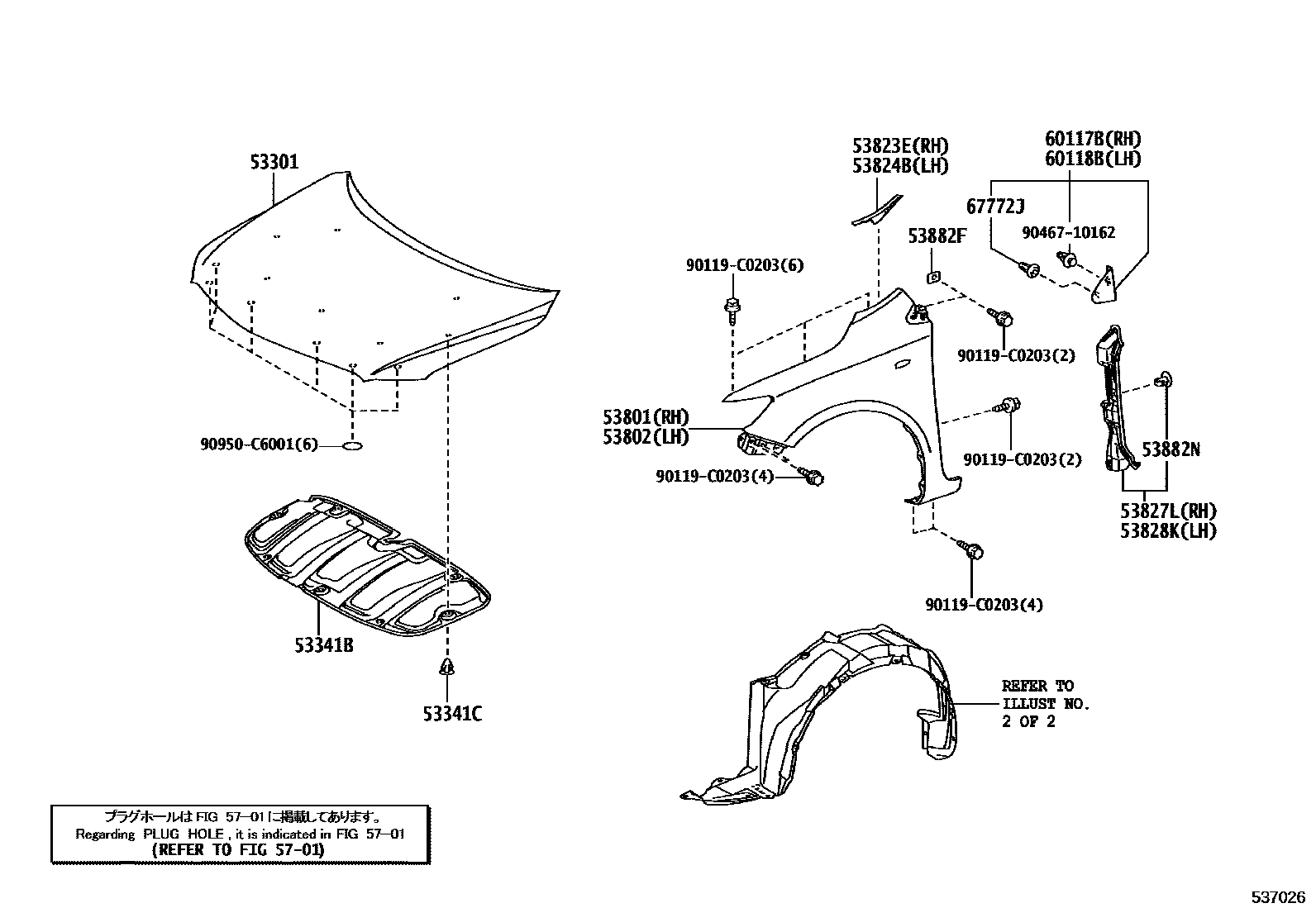

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-02180iZRE15#200705-201203

53341BINSULATOR, HOOD

main53341-02160iZRE152..GLS,GLXS200705-201203

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZRE152200705-201106

main90467-C0006iZRE152..GLS,GLXS201106-201205

main90467-C0025iZRE152,153..GLI,GLX,GLXI201205

53801FENDER SUB-ASSY, FRONT RH

main53811-02210iZRE151,152..GL,GLI,GLXI200705-201009

main53811-02220iZRE152..GLS,GLXS200802-201203

main53811-02320iZRE153201009-201301

main53811-02320iZRE152..GLXI201009

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

main53811-02330iZRE152..GLXS201009-201203

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

53802FENDER SUB-ASSY, FRONT LH

main53812-02210iZRE151,152..GL,GLI,GLXI200705-201009

main53812-02220iZRE152..GLS,GLXS200802-201203

main53812-02320iZRE152..GLXI201009

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

main53812-02320iZRE153201009-201301

main53812-02330iZRE152..GLXS201009-201203

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02020iZRE15#200705-201203

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02020iZRE15#200705-201203

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02090iZRE15#200705-201203

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02090iZRE15#200705-201203

53882FSEAL, FRONT FENDER

main53882-16030iZRE15#200705-201203

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-11050-E1iZRE15#200705-201406

SANDAL WOOD

sub90467-11050

5701

60117BCOVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02060iZRE15#200705-201203

60118BCOVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02060iZRE15#200705-201203

67772JCAP, FRONT PILLAR COVER RETAINER

main67772-95J03iZRE15#200705-201203

90119C0203

main90119-C0203

9046710162

main90467-10162

90950C6001

main90950-C6001

18 parts on this diagram · 2 diagrams in section
