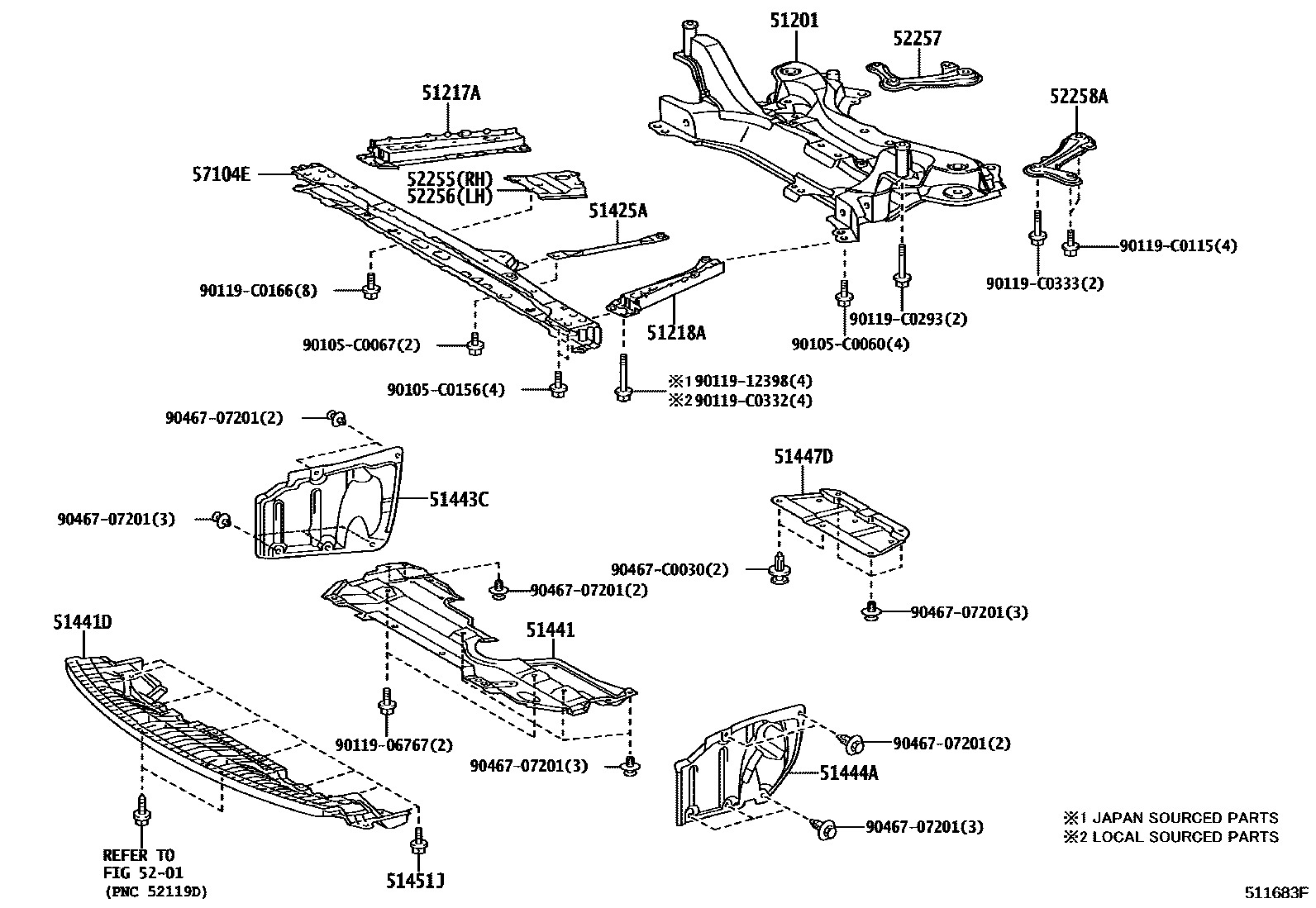

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02131iZRE152..GLS,GLXS200705-201305

sub51201-02132

main51201-02132iZRE15#..GL,GLI,GLXI201306

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-02030iZRE15#200705-201203

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-02030iZRE15#200705-201203

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02030iZRE15#200705-201002

sub51425-02040

main51425-02040iZRE15#..GL,GLI,GLX,GLXI201003-201203

51441COVER, ENGINE UNDER, NO.1

main51441-02300iZRE15#200710-201204

main51441-12270iZRE15#200705-200710

51441DCOVER, ENGINE UNDER

main52618-02030iZRE152..GLS,GLXS200705-201204

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02070iZRE15#200705-201204

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02060iZRE15#200705-201204

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02030iZRE15#200705-201204

51451JBOLT, NO.1

main90119-06767iZRE15#200705-201406

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02030iZRE15#200705-201203

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02030iZRE15#200705-201203

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02050iZRE15#200705-200803

sub52257-02051

main52257-02051iZRE15#200804-201203

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02050iZRE15#200705-200803

sub52258-02051

main52258-02051iZRE15#200804-201203

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02130iZRE15#200705-201204

90105C0060

main90105-C0060

90105C0067

main90105-C0067

90105C0156

main90105-C0156

9011906767

main90119-06767

9011912398

main90119-12398

90119C0115

main90119-C0115

90119C0166

main90119-C0166

90119C0293

main90119-C0293

90119C0332

main90119-C0332

90119C0333

main90119-C0333

9046707201

main90467-07201

90467C0030

main90467-C0030

28 parts on this diagram · 1 diagram in section
