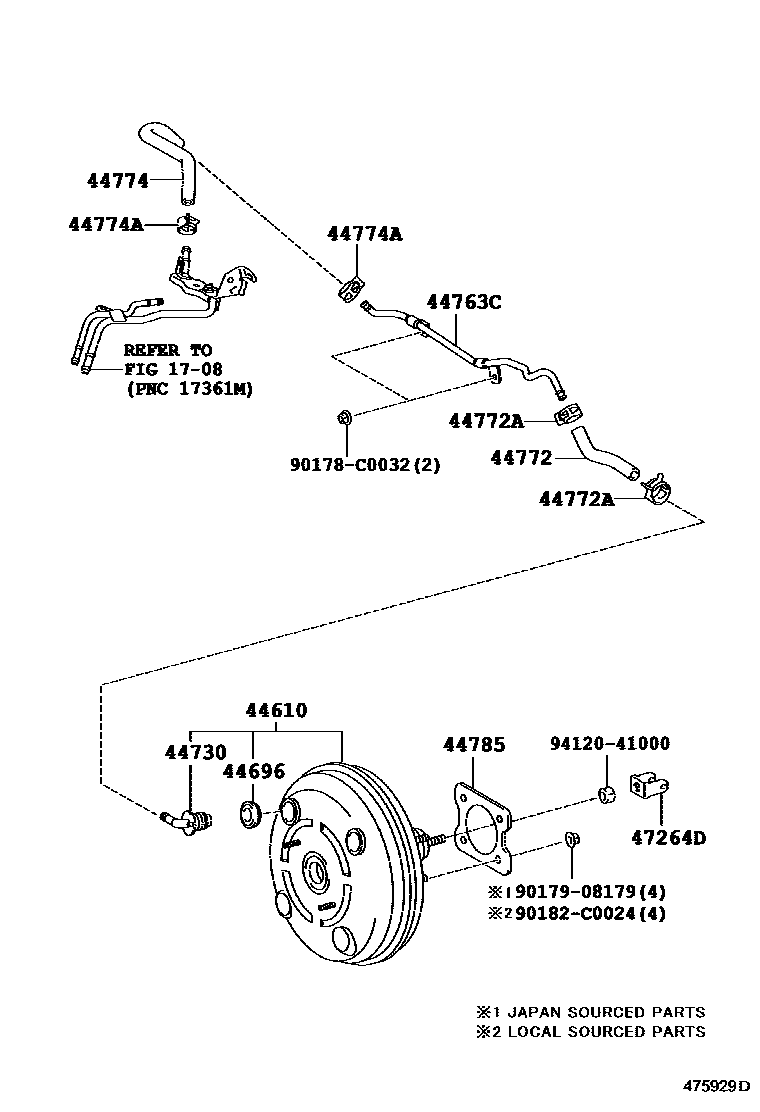

BRAKE BOOSTER & VACUUM TUBE

1708

44610BOOSTER ASSY, BRAKE

main44610-02420iZRE152..PREM200705-200804

sub44610-02421

main44610-02421iZRE153200804-201101

main44610-02422iZRE153201101-201301

main44610-02430iZRE15#..GL,GLI,GLXI200705-200803

sub44610-02431

main44610-02431iZRE15#..GL,GLI,GLS,GLXI,GLXS200803-200804

sub44610-02432

main44610-02432iZRE15#..GL,GLI,GLS,GLXI,GLXS200804-201101

main44610-02433iZRE152..GLS,GLXS201101-201203

44696GROMMET, CHECK VALVE

main90080-48071iZRE15#..GL,GLI,GLXI200705-201203

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iZRE15#..GL,GLI,GLXI200705-201103

main44730-20170iZRE152..GLS,GLXS201104-201203

44763CTUBE, HOSE TO HOSE, NO.2

main44763-02070iZRE152..GLS,GLXS200705-201203

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02030iZRE15#200705-200910

sub44772-02060

main44772-02060iZRE15#200910-201203

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500iZRE15#200705-201203

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02070iZRE15#200705-200910

sub47744-02240

main44774-02240iZRE15#200910-201203

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iZRE15#200705-201203

44785GASKET, BRAKE BOOSTER

main44785-02050iZRE15#200705-201203

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0P010iZRE15#..GL,GLI,GLXI200705-201203

90178C0032

main90178-C0032

9017908179

main90179-08179

90182C0024

main90182-C0024

9412041000

main94120-41000

15 parts on this diagram · 1 diagram in section
