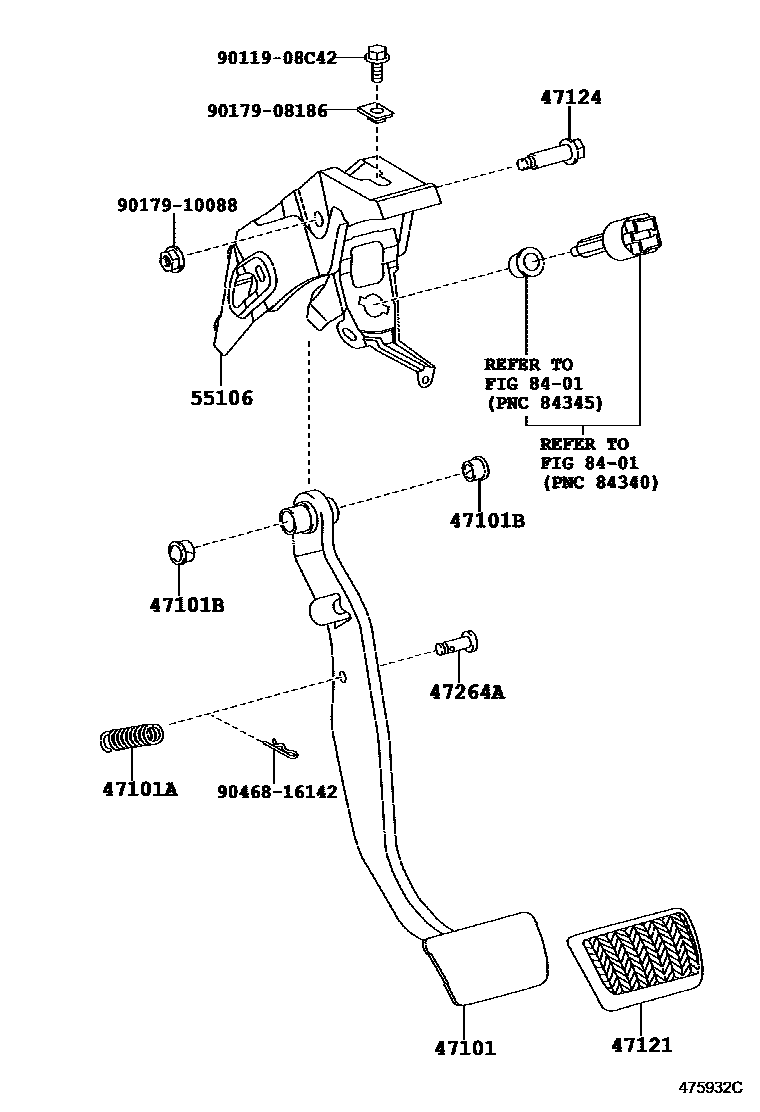

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-02280iZRE15#..5F,6F200705-201009

main47101-02290iZRE15#..4FC200705-201009

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13010iZRE152..GLS,GLXS201012-201203

main90507-15005iZRE15#200705-201011

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZRE15#200705-201009

47121PAD, BRAKE PEDAL

main31321-02100iZRE15#..(5F,6F)..(GL,GLI,GLXI)201302

(L)

main31321-42010iZRE152..6F..(GLS,GLXS)200705-201302

main31321-42010iZRE15#..(5F,6F)..(GL,GLI,GLXI)201302

(J)

main47121-02110iZRE15#..(4FC,CVFC)..(GL,GLI,GLXI)201302

(L)

main47121-42010iZRE15#..(4FC,CVFC)..(GL,GLI,GLX,GLXI)200705-201302

main47121-42010iZRE15#..(4FC,CVFC)..(GL,GLI,GLXI)201302

(J)

47124SHAFT, BRAKE PEDAL

main90109-10174iZRE15#200705-201009

47264APIN(FOR PUSH ROD)

main90249-08256iZRE15#200705-201203

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02140iZRE15#200705-201009

8401

9011908C42

main90119-08C42

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

12 parts on this diagram · 2 diagrams in section
