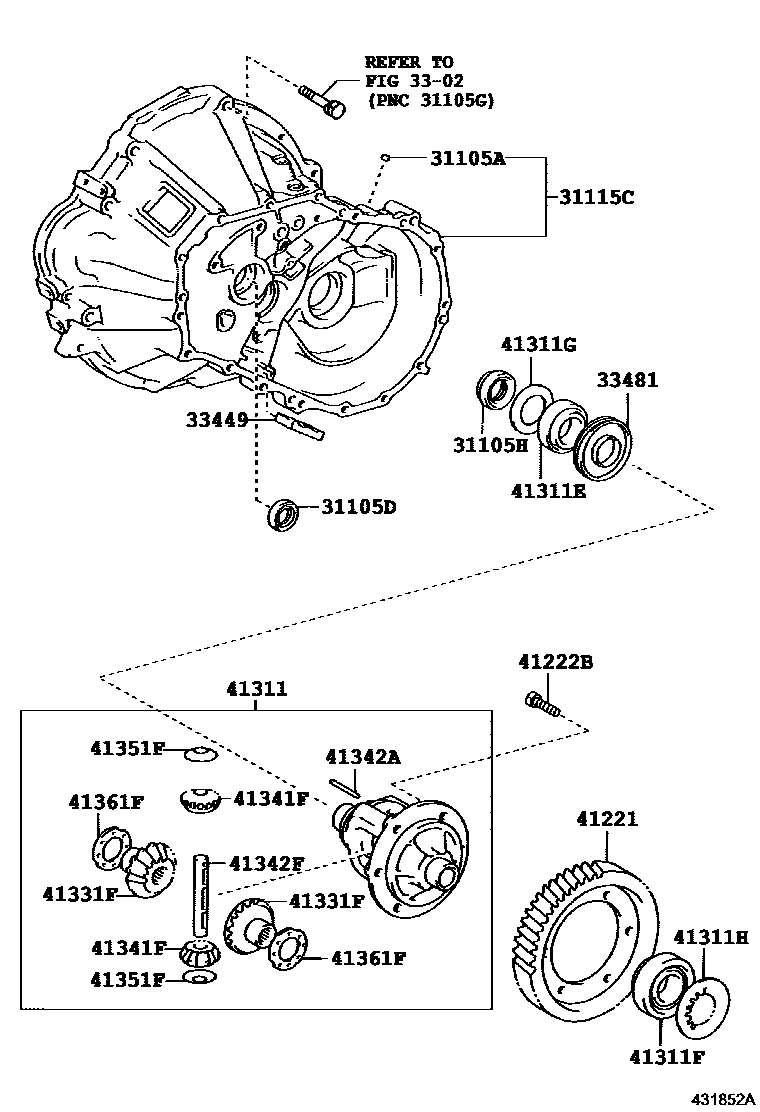

FRONT AXLE HOUSING & DIFFERENTIAL
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
sub90311-34044
sub90311-34039
sub90311-35068
sub90311-35065
sub90311-40036
sub90311-C0005
sub90311-C0014
3302
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=35,MARK 35X29-31
N=35
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
TOYOTA:REFER 34-01
41311CASE, FRONT DIFFERENTIAL
sub41301-0D030
sub41301-42190
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
sub90366-40129
TOYOTA:REFER 34-01
sub90366-C0013
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.1
T=1.73,MARK A,TOYOTA:REFER 34-01
T=1.76,MARK B,TOYOTA:REFER 34-01
T=1.79,MARK C,TOYOTA:REFER 34-01
T=1.82,MARK D,TOYOTA:REFER 34-01
T=1.85,MARK E,TOYOTA:REFER 34-01
T=1.88,MARK F,TOYOTA:REFER 34-01
T=1.91,MARK G,TOYOTA:REFER 34-01
T=1.94,MARK H,TOYOTA:REFER 34-01
T=1.97,MARK J,TOYOTA:REFER 34-01
T=2.00,MARK K,TOYOTA:REFER 34-01
T=2.03,MARK L,TOYOTA:REFER 34-01
T=2.06,MARK M,TOYOTA:REFER 34-01
T=2.09,MARK N,TOYOTA:REFER 34-01
T=2.12,MARK P,TOYOTA:REFER 34-01
T=2.15,MARK Q,TOYOTA:REFER 34-01
T=2.18,MARK S,TOYOTA:REFER 34-01
T=2.21,MARK T,TOYOTA:REFER 34-01
T=2.24,MARK U,TOYOTA:REFER 34-01
T=2.27,MARK V,TOYOTA:REFER 34-01
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10,MARK AA
T=2.15,MARK BB
T=2.20,MARK CC
T=2.25,MARK DD
T=2.30,MARK EE
T=2.35,MARK FF
T=2.40,MARK GG
T=2.45,MARK HH
T=2.50,MARK JJ
T=2.55,MARK KK
T=2.60,MARK LL
T=2.65,MARK MM
T=2.70,MARK NN
T=2.75,MARK PP
T=2.80,MARK QQ
T=2.85,MARK RR
T=2.90,MARK SS
T=2.95,MARK TT
T=3.00,MARK UU
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
20 parts on this diagram · 5 diagrams in section
