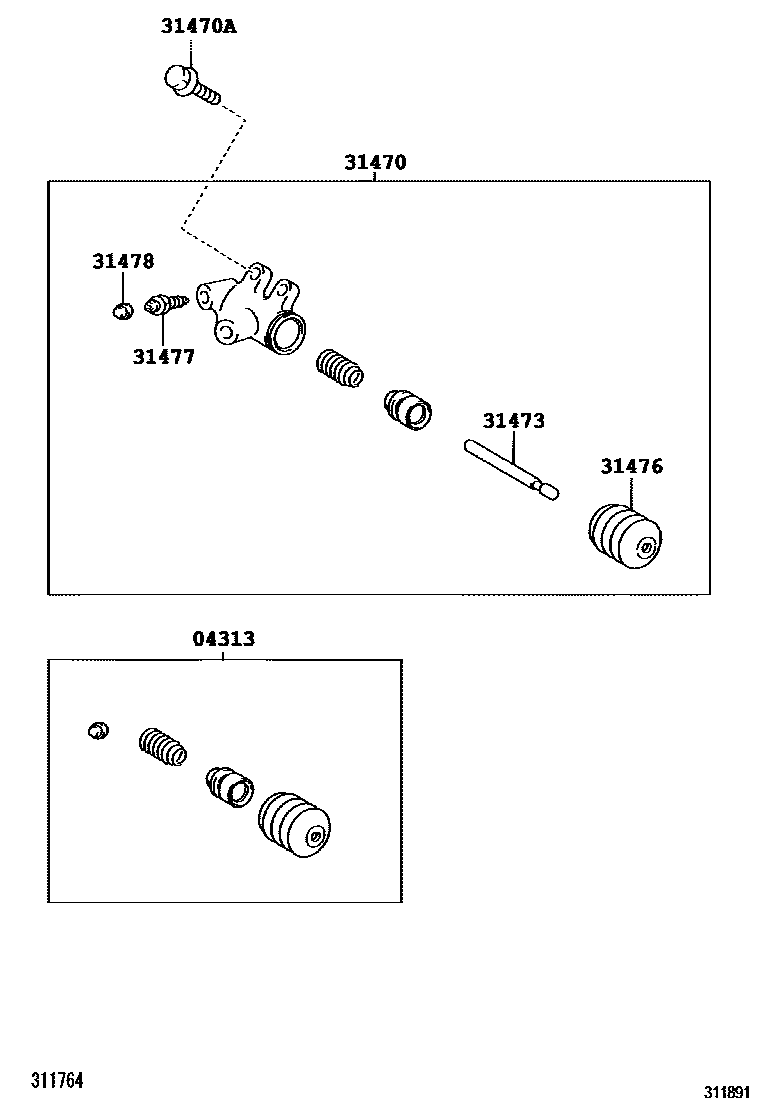

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-02010iZRE15#..5F,6F200705-201301

main04313-02011iZRE15#..(5F,6F)..(GL,GLI,GLXI)201301

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-02020iZRE15#..5F,6F200705-201301

sub31470-02021

main31470-02021iZRE15#..(5F,6F)..(GL,GLI,GLXI)201301

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iZRE152..6F200705-201406

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iZRE152..6F..(GLS,GLXS)200705-201203

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-02010iZRE15#..5F,6F200705-201203

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iZRE152..6F..(GLS,GLXS)200705-201203

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-0N010iZRE15#..5F,6F200705-201203

main31478-30010iZRE153..6F201009-201301

7 parts on this diagram · 2 diagrams in section
