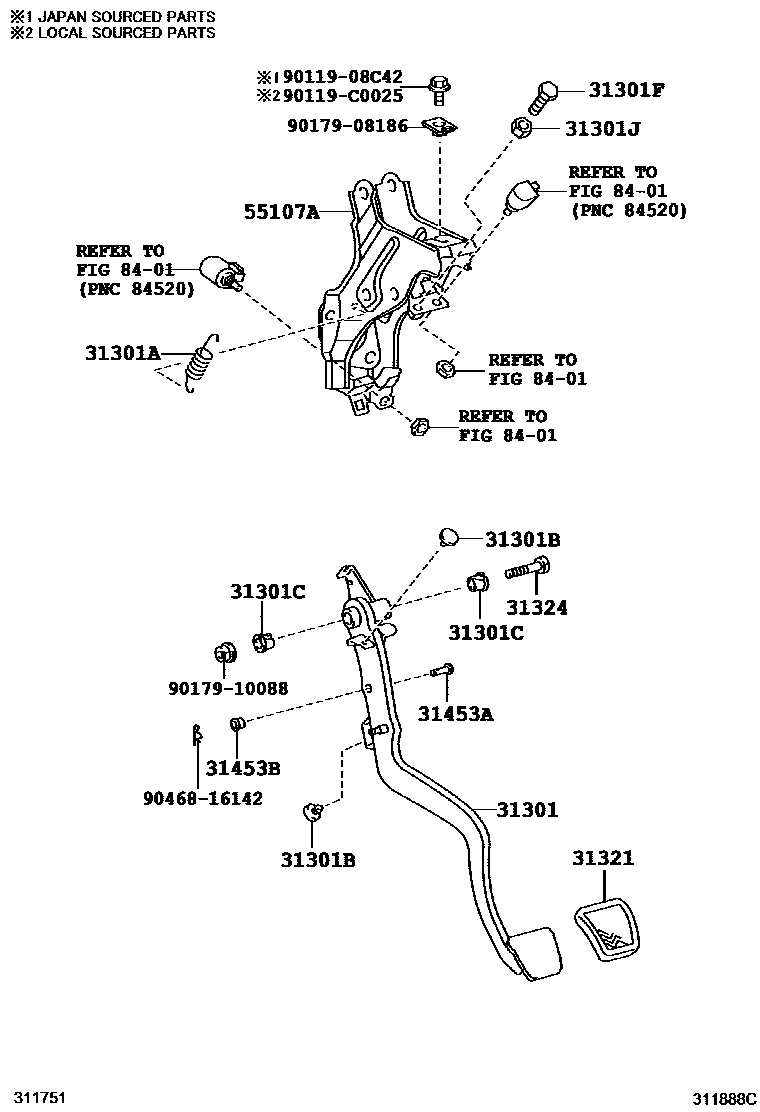

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02230iZRE152..6F200705-201010

sub31301-12H00

main31301-02231iZRE152..6F..(GLS,GLXS)201010-201203

main31301-02240iZRE151..5F200705-201010

sub31301-12H01

main31301-02241iZRE151..5F201010

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZRE151..5F¥100200705-201009

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZRE15#..5F,6F¥110200705-201203

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZRE15#..5F,6F¥120200705-201203

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iZRE152..6F..(GLS,GLXS)¥110201010-201203

main90101-10369iZRE15#..5F,6F¥110200705-201010

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iZRE15#..(5F,6F)..(GL,GLI,GLX,GLXI)201010-201203

main94130-61000iZRE15#..5F,6F¥70200705-201010

31321PAD, CLUTCH PEDAL

main31321-42010iZRE152..6F..(GLS,GLXS)¥230200705-201203

31324SHAFT, CLUTCH PEDAL

main90109-10167iZRE15#..5F,6F¥190200705-201203

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iZRE15#..5F,6F¥130200705-201203

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZRE15#..5F,6F¥110200705-201203

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02180iZRE152,153..6F200705-201010

sub31301-12H00

main55107-02181iZRE152..6F..(GLS,GLXS)201010-201203

main55107-02190iZRE151..5F200705-201010

sub31301-12H01

main55107-02191iZRE151..5F201010

8401

9011908C42

main90119-08C42¥80

90119C0025

main90119-C0025

9017908186

main90179-08186¥210

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

17 parts on this diagram · 5 diagrams in section
