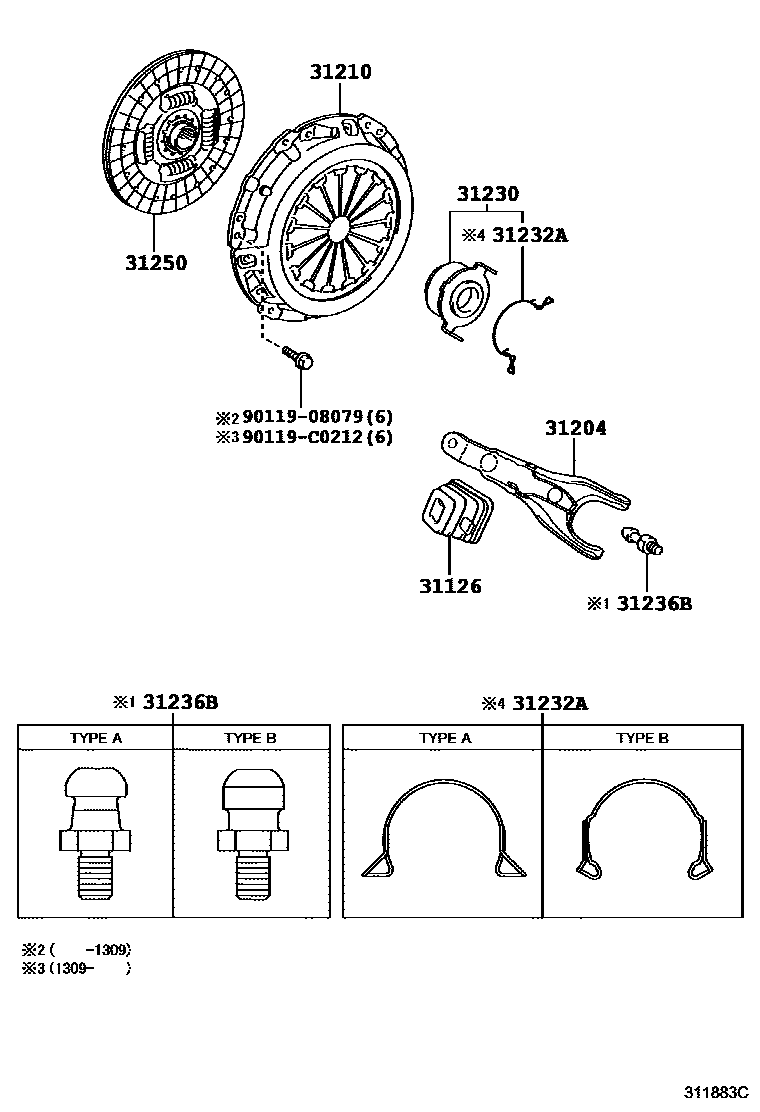

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0D040iZRE15#..(5F,6F)..(GL,GLI,GLXI)201401

main31126-12051iZRE152..6F..(GLS,GLXS)200705-201401

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0D030iZRE151..5F201401

PNC 31236B=TYPE B

main31204-52010iZRE152..6F..(GLI,GLXI)201009-201401

PNC 31236B=TYPE A

main31204-52010iZRE15#..5F,6F200705-201203

31210COVER ASSY, CLUTCH

main31210-02260iZRE151..5F200705-201009

sub31210-02340

main31210-02270iZRE152..6F..(GLS,GLXS)200705-201203

main31210-42030iZRE153..6F201009-201301

31230BEARING ASSY, CLUTCH RELEASE

main31230-0D010iZRE15#..(5F,6F)..(GL,GLI,GLXI)201401

sub31230-0D011

main31230-12180iZRE152..6F200705-200812

sub31230-12181

main31230-12181iZRE152..6F..(GLI,GLXI)200812-201312

main31230-12191iZRE151..5F200705-201401

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZRE151..5F200705-201009

main31232-12070iZRE152..6F..(GLI,GLXI)201401

TYPE B:REFER ILLUST.

main31232-12080iZRE152..6F200705-201203

main31232-12080iZRE152..6F..(GLI,GLXI)201009-201401

TYPE A:REFER ILLUST.

31236BSUPPORT, RELEASE FORK

main31236-0D010iZRE152..6F..(GLI,GLXI)201401

TYPE B:REFER ILLUST.

main31236-12020iZRE152..6F..(GLI,GLXI)201009-201401

TYPE A:REFER ILLUST.

main31236-12020iZRE15#..5F,6F200705-201203

31250DISC ASSY, CLUTCH

main31250-02150iZRE152..6F..(GLS,GLXS)201009-201203

main31250-02201iZRE15#..5F,6F200705-201009

sub31250-02300

main31250-42020iZRE153..6F201009-201107

sub31250-42021

main31250-42021iZRE153..6F201108-201301

sub31250-42022

9011908079

main90119-08079

90119C0212

main90119-C0212

9 parts on this diagram · 2 diagrams in section
