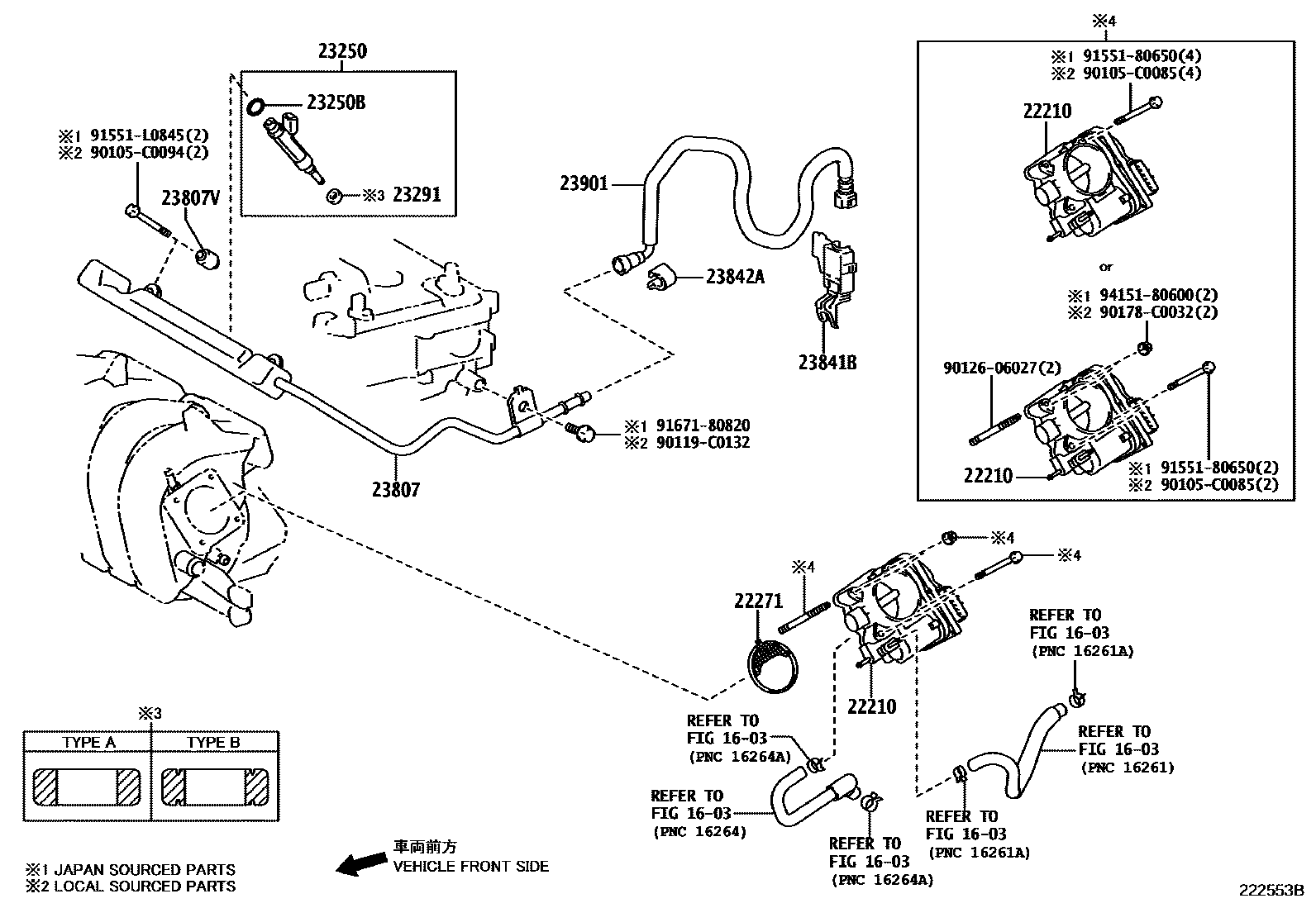

FUEL INJECTION SYSTEM

1603

22210BODY ASSY, THROTTLE

main22030-0T010i1ZRFE,2ZRFE..ZRE15#200705-201009

main22030-0T100i2ZRFE..ZRE152..GLS,GLXS201009-201203

(L)

sub22030-0T060

main22030-37050i2ZRFE..ZRE152..GLS,GLXS201009-201203

(J)

22271GASKET, THROTTLE BODY

main22271-0T010i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI201009

(L)

main22271-75031×2i2ZRFE..ZRE152..GLS,GLXS201009-201203

(J)

23250INJECTOR ASSY, FUEL

main23209-09120×4i2ZRFE..ZRE152..GLS,GLXS201009-201203

(L)

main23209-39145×4i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI201009

(J)

main23209-39146×4i3ZRFE..ZRE153201009-201301

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI201009

23291INSULATOR, INJECTOR VIBRATION

main23291-0P020×4i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI201107

(L),TYPE A

main23291-23010×4i1ZRFE,2ZRFE..ZRE151,152201009-201107

TYPE A:REFER ILLUST.

main23291-41010×4i1ZRFE,2ZRFE..ZRE15#200705-200806

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37050i1ZRFE,2ZRFE..ZRE15#200705-201009

main23814-37051i1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI201108

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i1ZRFE,2ZRFE..ZRE15#200705-201009

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI201009-201210

main23841-37090i1ZRFE,2ZRFE..ZRE151,152201211-201406

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI201009

23901TUBE SUB-ASSY, FUEL

main23901-0T010i1ZRFE,2ZRFE..ZRE151,152201009-201406

main23901-0T070i3ZRFE..ZRE153201009-201301

90105C0085

main90105-C0085

90105C0094

main90105-C0094

90119C0132

main90119-C0132

9012606027

main90126-06027

90178C0032

main90178-C0032

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180820

main91671-80820

9415180600

main94151-80600

20 parts on this diagram · 1 diagram in section
