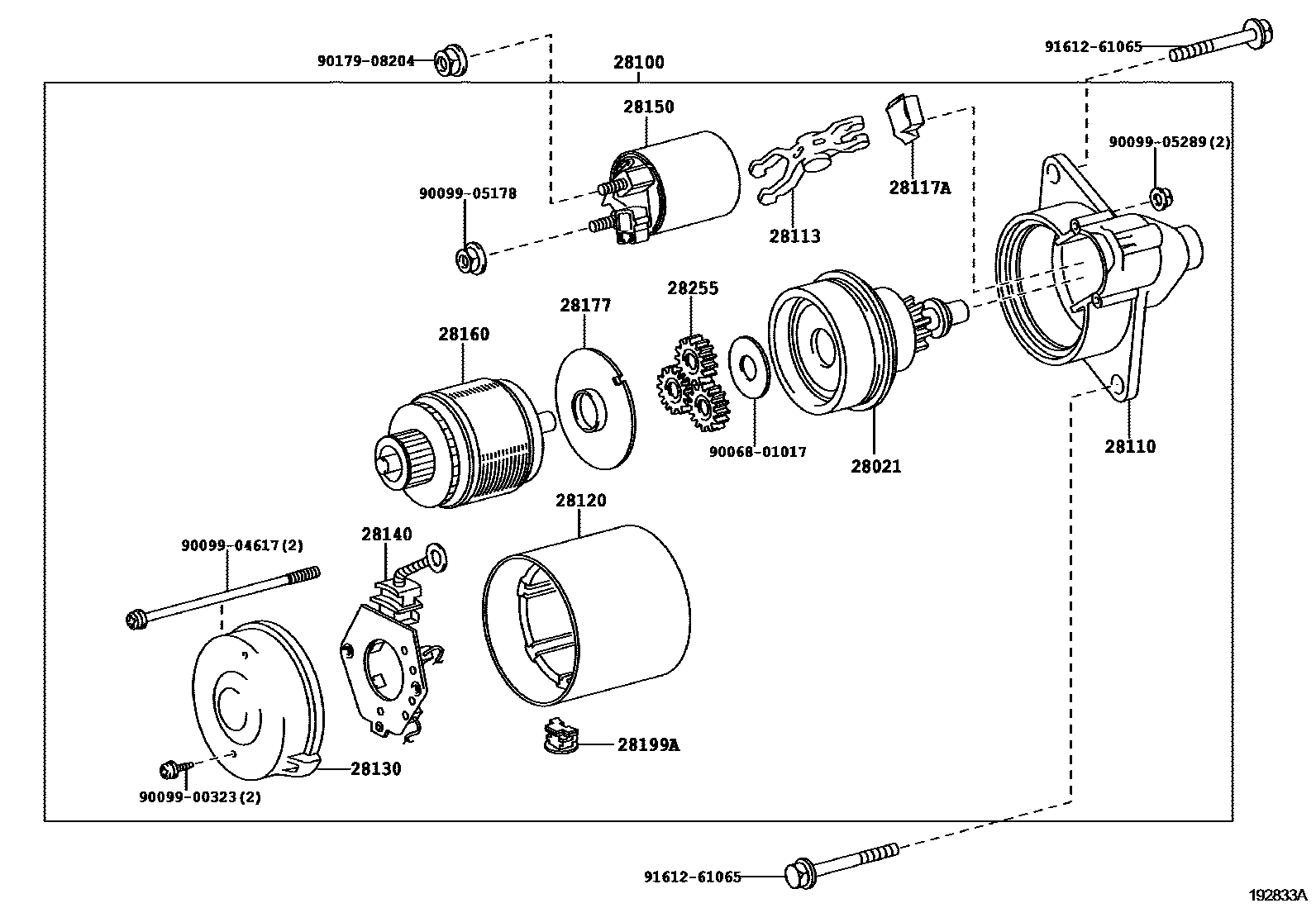

STARTER

0001 112V 1.6KW 0002 112V 1.6KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i1ZRFE,2ZRFE..ZRE15#..GL,GLI,GLXI201301

main28021-37050i2ZRFE..ZRE152..GLS,GLXS200705-201301

28100STARTER ASSY

main28100-0T020i2ZRFE..ZRE152..GLS,GLXS200705-201212

12V 1.6KW

sub28100-0T300

main28100-0T300i1ZRFE,2ZRFE..ZRE15#..GL,GLI,GLXI201301

12V 1.6KW

28110HOUSING ASSY, STARTER DRIVE

main28110-0T020i1ZRFE,2ZRFE..ZRE15#200705-201109

main28110-37040i1ZRFE,2ZRFE..ZRE15#..GL,GLI,GLXI201301

28113LEVER, STARTER PINION DRIVE

main28113-0T020i1ZRFE,2ZRFE..ZRE15#200705-201109

28117ASEAL, RUBBER

main28117-0T020i1ZRFE,2ZRFE..ZRE15#200705-201109

28120YOKE ASSY, STARTER

main28120-28060i1ZRFE,2ZRFE..ZRE15#..GL,GLI,GLXI201301

main28120-37050i2ZRFE..ZRE152..GLS,GLXS200705-201301

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0T020i1ZRFE,2ZRFE..ZRE15#200705-201109

main28130-37120i1ZRFE,2ZRFE..ZRE15#..GL,GLI,GLXI201301

28140HOLDER ASSY, STARTER BRUSH

main28140-0T020i1ZRFE,2ZRFE..ZRE15#200807-201301

main28140-37050i1ZRFE,2ZRFE..ZRE15#200705-200807

28150SWITCH ASSY, MAGNET STARTER

main28150-0T020i1ZRFE,2ZRFE..ZRE15#200705-201301

28160ARMATURE ASSY, STARTER

main28160-0T020i2ZRFE..ZRE152..GLS,GLXS200905-201301

main28160-21060i1ZRFE,2ZRFE..ZRE15#..GL,GLI,GLXI201301

main28160-37050i1ZRFE,2ZRFE..ZRE15#200705-200905

sub28160-75210

28177PLATE(FOR STARTER ARMATURE)

main28177-0T020i1ZRFE,2ZRFE..ZRE15#200705-201109

main28177-28040i1ZRFE,2ZRFE..ZRE15#..GL,GLI,GLXI201301

28199APROTECTOR, DUST STARTER

main28199-37050i1ZRFE,2ZRFE..ZRE15#200705-201109

28255GEAR, PLANET

main28255-28040i1ZRFE,2ZRFE..ZRE15#..GL,GLI,GLXI201301

main28255-37050i1ZRFE,2ZRFE..ZRE15#200705-201109

9006801017

main90068-01017

9009900323

main90099-00323

9009904617

main90099-04617

9009905178

main90099-05178

9009905289

main90099-05289

9017908204

main90179-08204

9161261065

main91612-61065

20 parts on this diagram · 2 diagrams in section
