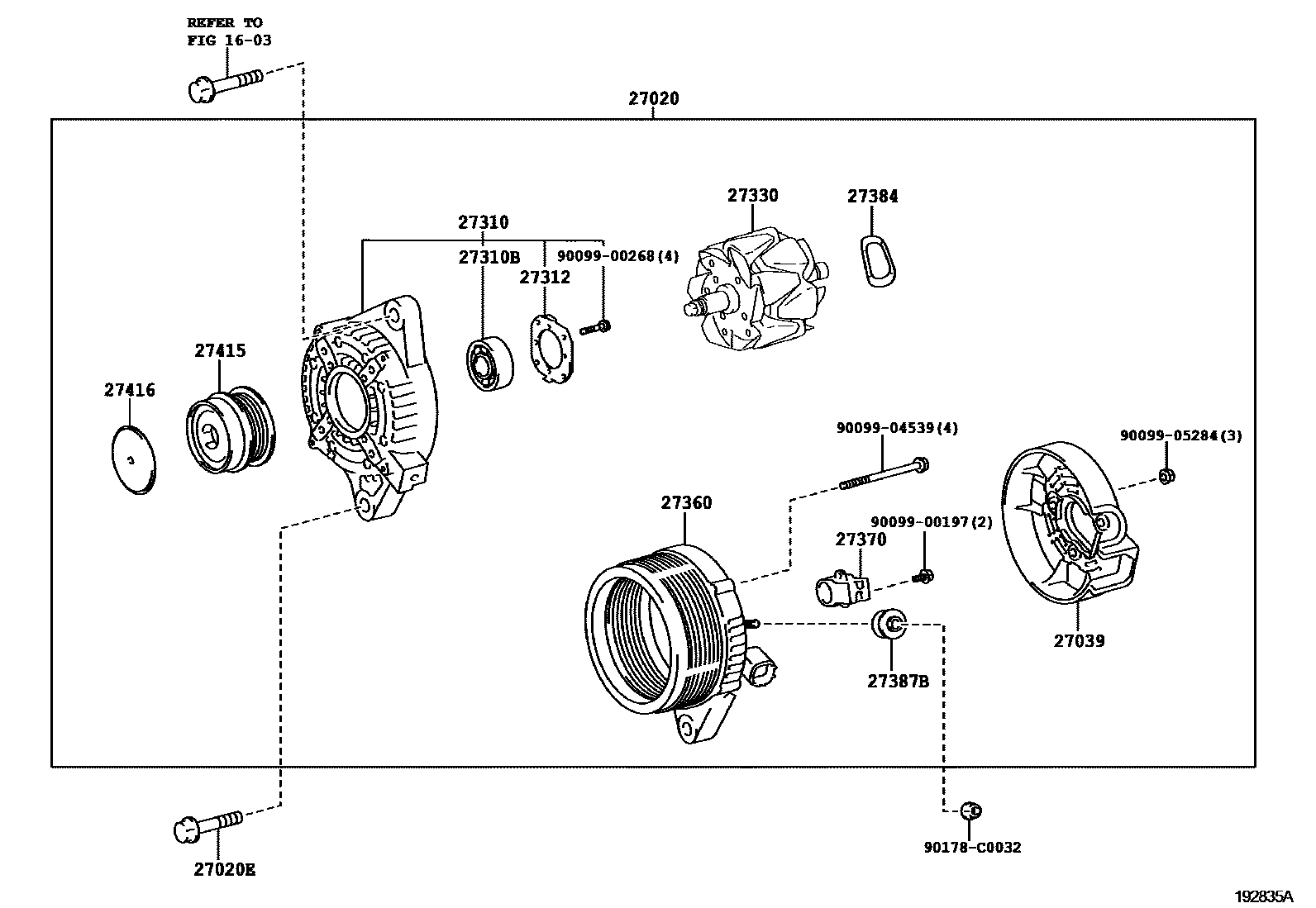

ALTERNATOR

1603

27020ALTERNATOR ASSY

main27060-0T030i1ZRFE,2ZRFE..ZRE15#200705-200901

12V 100A

main27060-0T031i1ZRFE,2ZRFE..ZRE15#200902-201009

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i2ZRFE..ZRE152..GLS,GLXS201009-201203

27039COVER, ALTERNATOR REAR END

main27039-0P070i2ZRFE..ZRE152..GLS,GLXS201009-201203

main27039-0T030i1ZRFE,2ZRFE..ZRE15#200705-201009

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0T030i2ZRFE..ZRE152..GLS,GLXS201009-201203

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i1ZRFE,2ZRFE..ZRE15#200705-201009

main90068-10042i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI201212

27312PLATE, RETAINER

main27312-0M070i1ZRFE,2ZRFE..ZRE15#..GL,GLI,GLXI201308

main27312-72100i2ZRFE..ZRE152..GLS,GLXS201009-201203

27330ROTOR ASSY, ALTERNATOR

main27330-0T030i3ZRFE..ZRE153201009-201210

27360COIL ASSY, ALTERNATOR

main27360-0T030i1ZRFE,2ZRFE..ZRE15#200705-201009

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0T030i1ZRFE,2ZRFE..ZRE15#200705-201009

27384WASHER

main27384-50030i1ZRFE,2ZRFE..ZRE15#200705-201009

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0H110i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI201212

main27387-0T030i2ZRFE..ZRE152..GLS,GLXS201009-201203

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T010i1ZRFE,2ZRFE..ZRE15#200705-200901

main27415-0T011i1ZRFE,2ZRFE..ZRE15#200902-201009

main27415-0T060i1ZRFE,2ZRFE..ZRE15#201309-201406

27416CAP, ALTERNATOR PULLEY

main27416-0W020i1ZRFE,2ZRFE..ZRE15#200705-201009

main27416-0W050i1ZRFE,2ZRFE..ZRE15#201309-201406

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

90178C0032

main90178-C0032

19 parts on this diagram · 1 diagram in section
