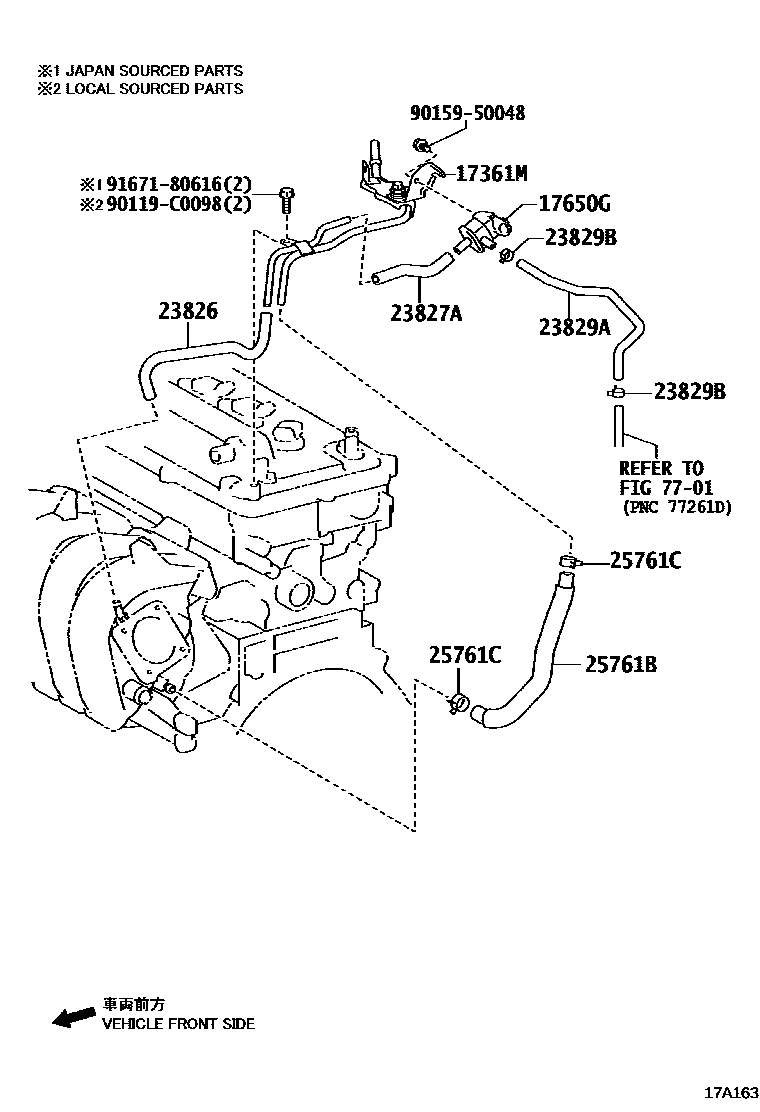

VACUUM PIPING

0001 1 0002 1 0004 1

17361MTUBE, AIR

main17361-37010i1ZRFE,2ZRFE..ZRE15#200705-200909

main17361-37011i1ZRFE,2ZRFE..ZRE15#200909-201009

main17361-37040i2ZRFE,3ZRFE..ZRE152,153201009-201311

main17361-37070i2ZRFE..ZRE152201311-201406

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i1ZRFE,2ZRFE..ZRE15#200705-201009

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0T040i1ZRFE,2ZRFE..ZRE15#200802-200909

(L)

main23826-0T041i1ZRFE..ZRE151201009

(L)

main23826-0T110i2ZRFE..ZRE152..GLI,GLXI201009

(L)

main23826-37020i1ZRFE,2ZRFE..ZRE15#200705-200909

(J)

main23826-37021i1ZRFE..ZRE151201009

(J)

main23826-37190i3ZRFE..ZRE153201009-201301

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37020i1ZRFE..ZRE151201009

main23827-37060i2ZRFE,3ZRFE..ZRE152,153..GLI,GLX,GLXI201009

23829AHOSE, FUEL VAPOR FEED

main23826-0T010i1ZRFE,2ZRFE..ZRE15#200705-201009

main23826-0T080i1ZRFE,2ZRFE,3ZRFE..ZRE15#201009-201406

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-C0002×2i1ZRFE,2ZRFE..ZRE15#201301-201406

(L)

main96132-51300×2i1ZRFE,2ZRFE,3ZRFE..ZRE15#201009-201301

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-0T010i1ZRFE..ZRE151201309

(L)

main25761-0T020i2ZRFE..ZRE152..GLI,GLXI201309

(L)

main25761-37010i1ZRFE,2ZRFE..ZRE15#200705-200909

main25761-37011i1ZRFE,2ZRFE..ZRE15#200909-201009

main25761-37080i2ZRFE,3ZRFE..ZRE152,153..GLI,GLX,GLXI201009-201309

25761CCLIP(VACCUM TRANSMITTING HOSE NO.1)

main96133-41500×2i1ZRFE,2ZRFE..ZRE15#200910-201009

main96136-41801×2i1ZRFE,2ZRFE..ZRE15#200705-200909

7701

90119C0098

main90119-C0098

9015950048

main90159-50048

9167180616

main91671-80616
