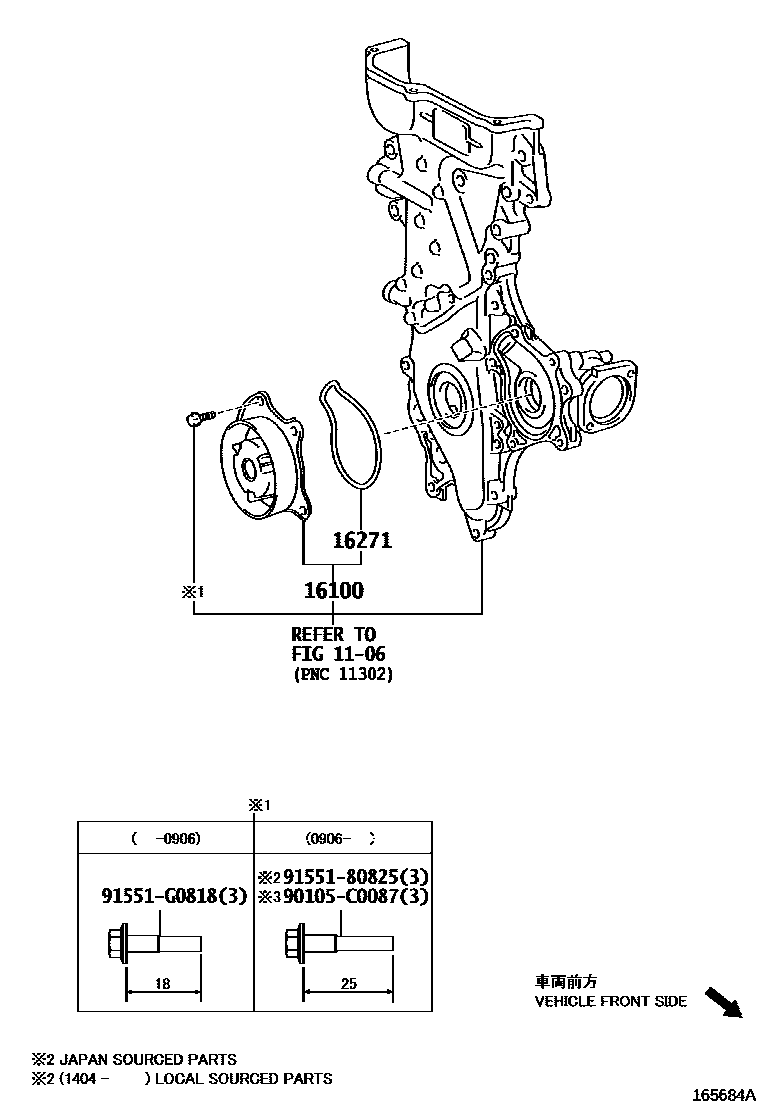

WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-09550i2ZRFE..ZRE152..GLS,GLXS200909-201203

(L)

main16100-39465i1ZRFE,2ZRFE..ZRE15#200705-200906

sub16100-39466

sub91551-80825

main16100-39466i3ZRFE..ZRE153200906-201301

16271GASKET, WATER PUMP

main16271-37010i1ZRFE,2ZRFE..ZRE15#200705-201211

90105C0087

main90105-C0087

9155180825

main91551-80825

91551G0818

main91551-G0818

6 parts on this diagram · 1 diagram in section
