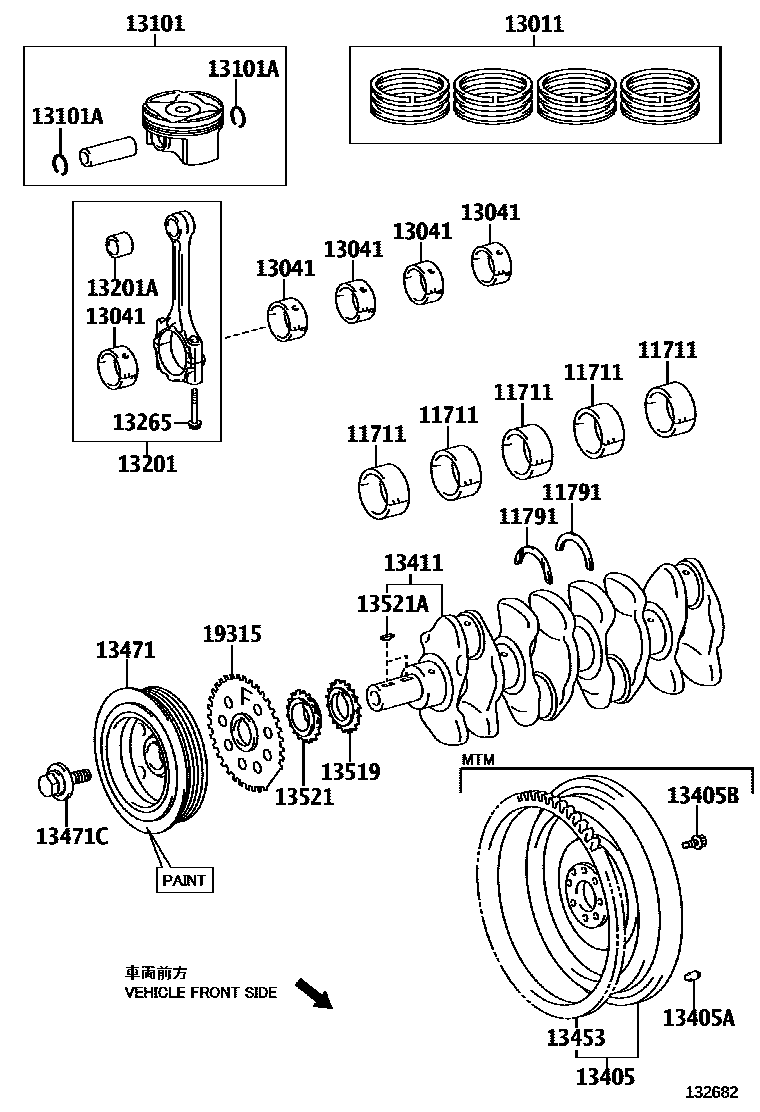

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK1
MARK2
MARK3
MARK4
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,(L)
STD
13011RING SET, PISTON
STD,(L)
STD,(J)
STD
13041BEARING, CONNECTING ROD
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK1,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
(J)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
sub13265-22040
13405FLYWHEEL SUB-ASSY
(L)
(J)
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
L=18,OD=8,(L)
13405BBOLT, FLYWHEEL SETTING
13453GEAR, FLYWHEEL RING
(L)
(J)
13471PULLEY, CRANKSHAFT
*119
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
13519GEAR, OIL PUMP DRIVE
(L)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
