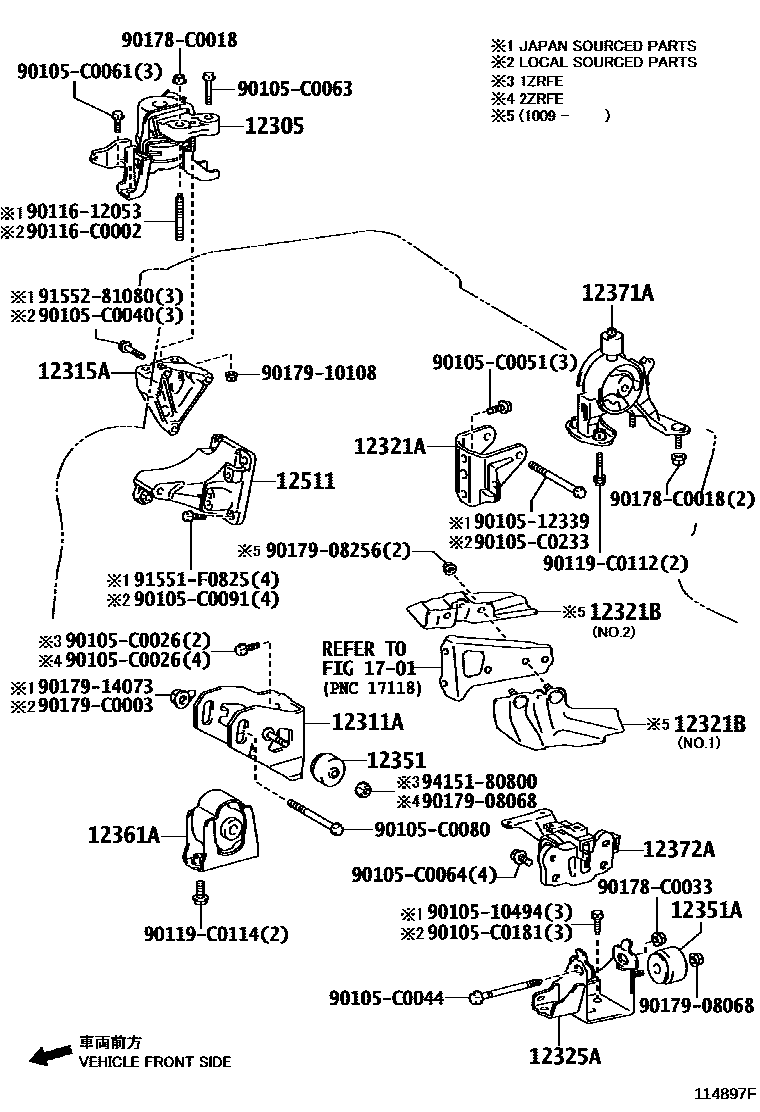

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0T010i1ZRFE,2ZRFE..ZRE15#200705-201009

main12305-0T100i3ZRFE..ZRE153201009-201301

main12305-0T110i2ZRFE..ZRE152..GLS,GLXS201009-201203

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0T010i1ZRFE,2ZRFE..ZRE151,152..(5F,6F)..(GL,GLI,GLXI)200705-201203

main12311-0T020i1ZRFE..ZRE151..4FC200705-201009

main12311-0T030i2ZRFE..ZRE152..4FC200705-201009

main12311-0T160i2ZRFE..ZRE152..CVFC..(GLS,GLXS)201009-201203

main12311-0T170i3ZRFE..ZRE153..6F201009-201301

main12311-0T180i3ZRFE..ZRE153..CVFC201009-201301

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0T010i2ZRFE..ZRE152..GLS,GLXS200705-201203

(L)

main12315-37030i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI200705-201203

(J)

main12315-37030i3ZRFE..ZRE153201009-201301

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0T010i1ZRFE,2ZRFE..ZRE151,152..(5F,6F)..(GL,GLI,GLXI)200705-201203

main12321-0T020i1ZRFE..ZRE151..4FC200705-201009

main12321-0T030i2ZRFE..ZRE152..4FC200705-201009

main12321-0T190i3ZRFE..ZRE153..6F201009-201301

main12321-0T200i3ZRFE..ZRE153..CVFC201009-201301

main12321-0T210i2ZRFE..ZRE152..CVFC..(GLS,GLXS)201009-201203

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-12060i2ZRFE..ZRE152..GLS,GLXS201009-201203

NO.1

main43498-12051i2ZRFE..ZRE152..GLS,GLXS201009-201203

NO.2

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0T010i1ZRFE,2ZRFE..ZRE151,152..(5F,6F)..(GL,GLI,GLXI)200705-201203

main12325-0T020i1ZRFE..ZRE151..4FC200705-201009

main12325-0T030i2ZRFE..ZRE152..4FC200705-201009

main12325-0T190i2ZRFE..ZRE152..CVFC..(GLS,GLXS)201009-201203

main12325-0T200i3ZRFE..ZRE153..6F201009-201301

main12325-0T210i3ZRFE..ZRE153..CVFC201009-201301

12351DAMPER, ENGINE MOUNTING

main12351-0T020i1ZRFE,2ZRFE..ZRE151,152..(5F,6F)..(GL,GLI,GLXI)200705-201203

main12351-0T030i1ZRFE..ZRE151..4FC200705-201009

(L)

main12351-0T040i2ZRFE..ZRE152..4FC200705-201009

(L)

main12351-0T150i2ZRFE,3ZRFE..ZRE152,153..CVFC..(GLI,GLX,GLXI)201009-201203

main12351-0T160i3ZRFE..ZRE153..6F201009-201301

main12351-28060i1ZRFE..ZRE151..4FC200705-201009

(J)

main12351-37020i2ZRFE..ZRE152..4FC200705-201009

(J)

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-0T020i1ZRFE,2ZRFE..ZRE15#..4FC200705-201009

main12351-0T130i3ZRFE..ZRE153..6F201009-201301

main12351-0T140i3ZRFE..ZRE153..CVFC201009-201301

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0T010i2ZRFE..ZRE152..6F..(GLS,GLXS)200705-201203

main12361-0T020i2ZRFE..ZRE152..CVFC..(GLS,GLXS)200705-201203

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0T010i1ZRFE,2ZRFE..ZRE151,152..(5F,6F)..(GL,GLI,GLXI)200705-201203

main12371-0T020i1ZRFE,2ZRFE..ZRE15#..4FC200705-201009

main12371-0T120i3ZRFE..ZRE153..6F201009-201301

main12371-0T130i2ZRFE..ZRE152..CVFC..(GLS,GLXS)201009-201203

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T010i1ZRFE,2ZRFE..ZRE151,152..(5F,6F)..(GL,GLI,GLXI)200705-201203

main12372-0T020i1ZRFE..ZRE151..4FC200705-201009

main12372-0T150i3ZRFE..ZRE153..6F201009-201301

main12372-0T160i3ZRFE..ZRE153..CVFC201009-201301

main12372-0T170i2ZRFE..ZRE152..CVFC..(GLS,GLXS)201009-201203

12511BRACKET, ALTERNATOR, NO.1

main12511-0T010i2ZRFE..ZRE152..GLS,GLXS200705-201203

(L)

main12511-37010i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI200705-201203

(J)

main12511-37010i3ZRFE..ZRE153201009-201301

1701

9010510494

main90105-10494

9010512339

main90105-12339

90105C0026

main90105-C0026

90105C0040

main90105-C0040

90105C0044

main90105-C0044

90105C0051

main90105-C0051

90105C0061

main90105-C0061

90105C0063

main90105-C0063

90105C0064

main90105-C0064

90105C0080

main90105-C0080

90105C0091

main90105-C0091

90105C0181

main90105-C0181

90105C0233

main90105-C0233

9011612053

main90116-12053

90116C0002

main90116-C0002

90119C0112

main90119-C0112

90119C0114

main90119-C0114

90178C0018

main90178-C0018

90178C0033

main90178-C0033

9017908068

main90179-08068

9017908256

main90179-08256

9017910108

main90179-10108

9017914073

main90179-14073

90179C0003

main90179-C0003

91551F0825

main91551-F0825

9155281080

main91552-81080

9415180800

main94151-80800

40 parts on this diagram · 5 diagrams in section
