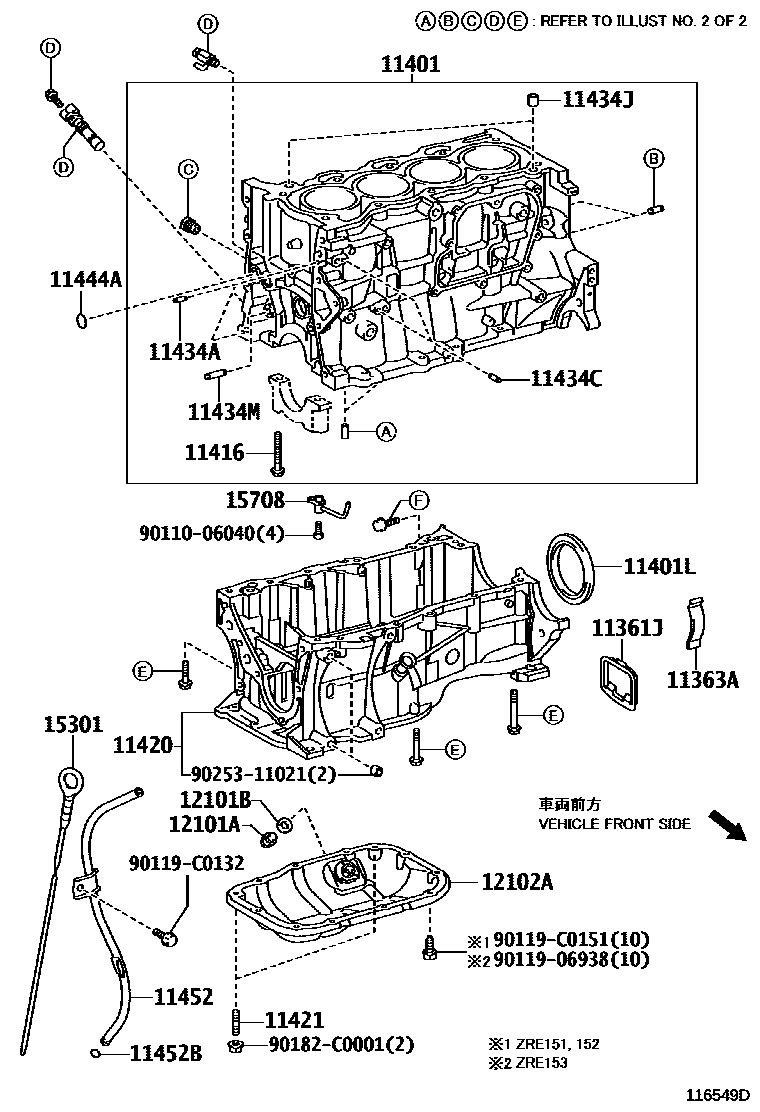

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
(J)
11363ACOVER, FLYWHEEL HOUSING SIDE
(L)
(J)
11401LSEAL, ENGINE REAR OIL
(J)
(L),NOK
(L)
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
(L)
(J)
11421BOLT, STUD(FOR OIL PAN)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0,(J)
L=12,OD=4.0
L=12,OD=4.0,(L)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=4.0
L=12,OD=4.0,(J)
L=12,OD=4.0,(L)
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J)
(L)
11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)
(J)
(L)
11444ARING, O
(L)
(J)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
(J)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J)
(L)
12102APAN SUB-ASSY, OIL, NO.2
(L)
(J)
9011006040
main90110-06040
9011906938
main90119-06938
90119C0132
main90119-C0132
90119C0151
main90119-C0151
90182C0001
main90182-C0001
9025311021
main90253-11021
25 parts on this diagram · 2 diagrams in section
