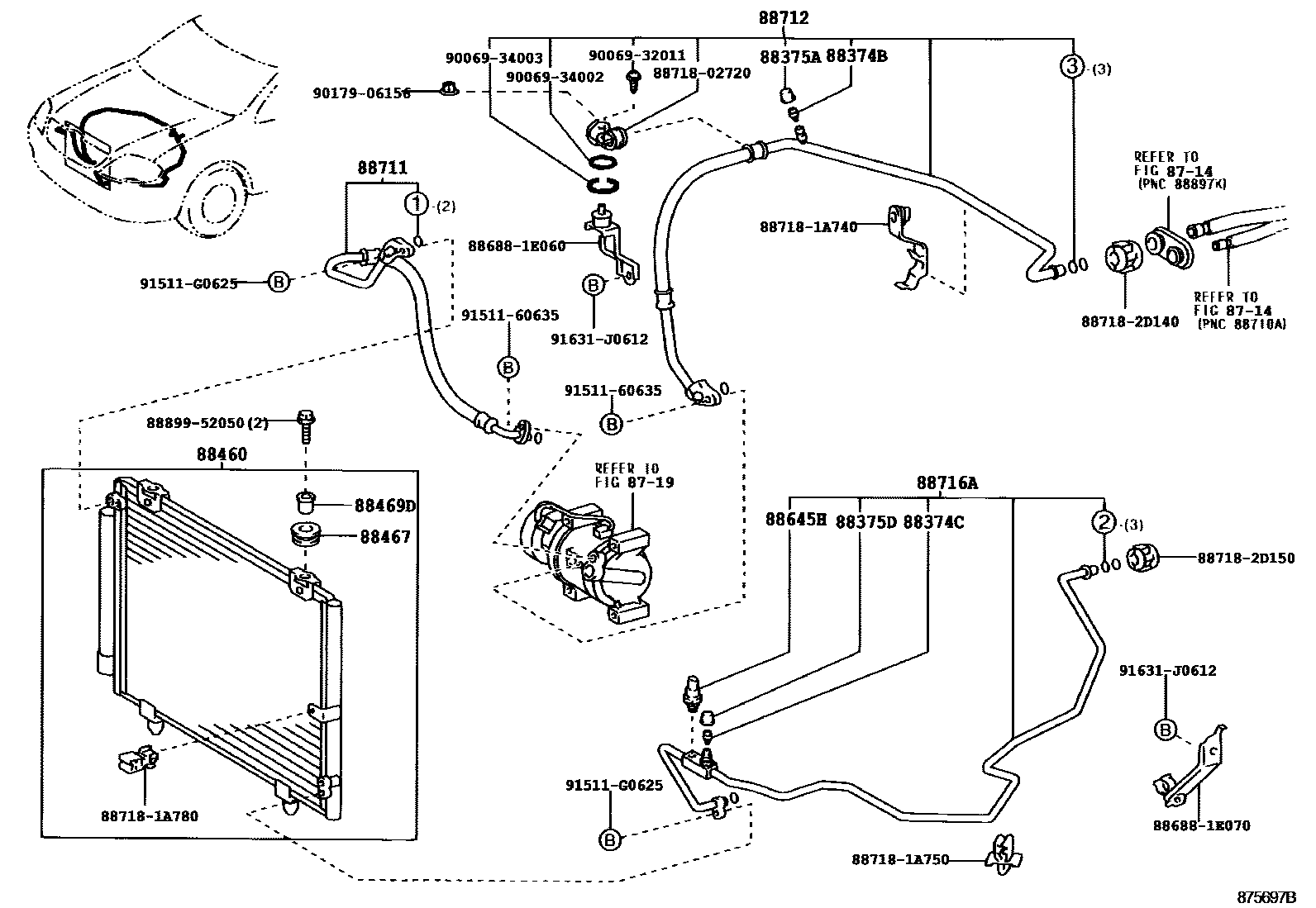

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1 0003 1DEALER OPTION 0004 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iZZE123;ZZE120,121,122..SA200208-200408

88374CVALVE, SERVICE, NO.2

main88374-02020iZZE123;ZZE120,121,122..SA200208-200408

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-02140iZZE123;ZZE120,121,122..SA200208-200408

88375DCAP, SERVICE VALVE, NO.2

main88375-02150iZZE123;ZZE120,121,122..SA200208-200408

88460CONDENSER ASSY, COOLER

main88450-02220iZZE123;ZZE120,121,122..SA200208-200408

main88460-12561iZZE122..ARL200303-200408

88467CUSHION, COOLER CONDENSER, NO.1

main88467-02110×2iZZE123;ZZE120,121,122..SA200208-200408

main88467-12180×2iZZE122..ARL200303-200408

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010×2iZZE12#200208-200408

88645HSWITCH, PRESSURE NO.1

main88645-60030iZZE12#200208-200408

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-02150iZZE123;ZZE120,121,122..SA200208-200408

main88703-02320iZZE122..SA..STD;ZZE120,121,123..5D200408-200707

main88703-12580iZZE122..ARL200310-200408

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-02320iZZE123;ZZE120,121,122..SA200208-200408

main88704-02380iZZE122..ARL200303-200310

DEALER OPITON

main88704-12810iZZE122..ARL200310-200408

DEALER OPITON

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-02420iZZE123;ZZE120,121,122..SA200208-200408

main88710-02750iZZE123;ZZE120,121,122..SA200408-200707

main88710-12570iZZE122..ARL200303-200408

886881E060BRACKET, COOLER DIAPHRAGM

main88688-1E060

886881E070BRACKET, COOLER DIAPHRAGM

main88688-1E070

8871802720PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02720

887181A740PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A740

887181A750PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A750

887181A780PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A780

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952050COVER, EVAPORATOR

main88899-52050

9006932011

main90069-32011

9006934002

main90069-34002

9006934003

main90069-34003

9017906156

main90179-06156

9151160635

main91511-60635

91511G0625

main91511-G0625

91631J0612

main91631-J0612

29 parts on this diagram · 4 diagrams in section
