HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0003 1CONTROL PANEL---AUTO AIR COND0005 1AIR DUCT 0007 1SENSOR

5501

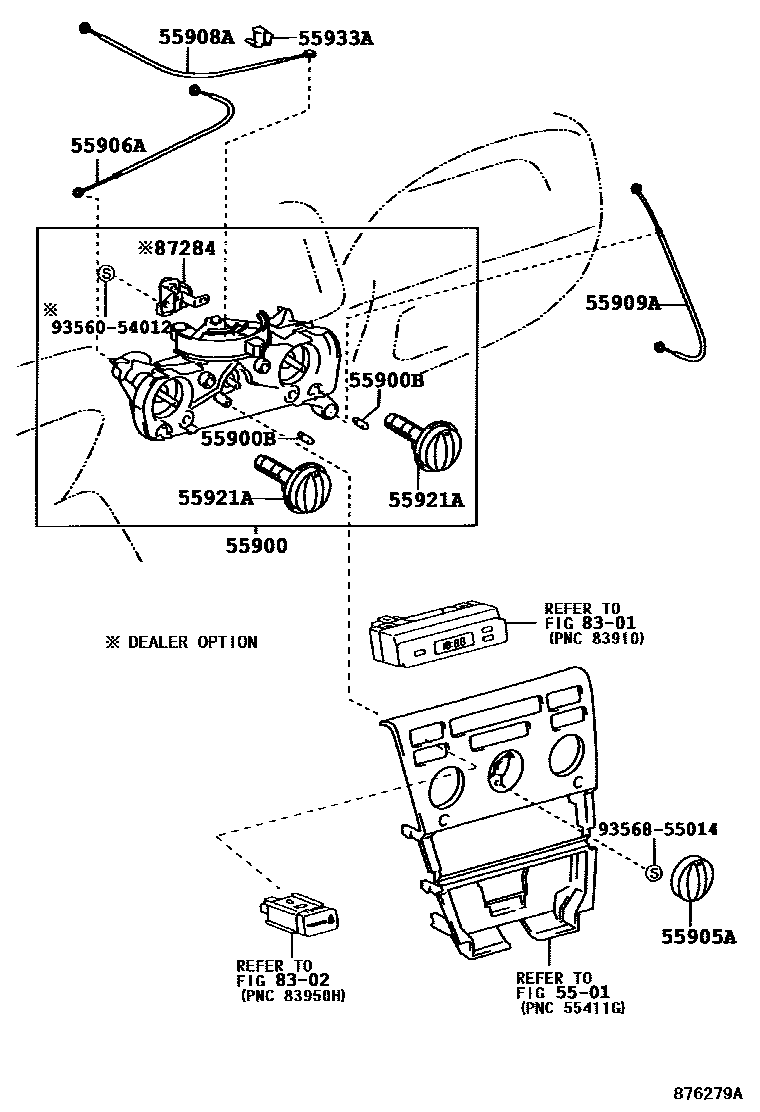

55900CONTROL ASSY, AIR CONDITIONER

main55900-1A030iZZE12#200208-200209

main55900-1A070iZZE120,121,122200209-200408

main55900-1A071iZZE122..ARL;ZZE122..GLS;ZZE120,121..GLE,GLS,RS,RT,STD200408-200707

55900BBULB, AIR CONDITIONER CONTROL

main90981-11040×2iZZE120,121,122200209-200408

12V 2W

55905AKNOB, HEATER CONTROL

main55905-12710iZZE12#200208-200209

main55905-12740iZZE120,121,122200209-200408

main55905-12741iZZE122..ARL;ZZE122..GLS;ZZE120,121..GLE,GLS,RS,RT,STD200408-200707

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12410iZZE120,121,122200208-200408

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12330iZZE120,121,122200208-200408

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12320iZZE120,121,122200208-200408

55921ARETAINER, HEATER CONTROL

main55921-12140iZZE122..SA..(GSX,STD);ZZE121,123..GSX,RX,STD200408-200707

main55921-12150×2iZZE12#200208-200209

main55921-12160×2iZZE120,121,122200209-200408

main55921-12161×2iZZE122..ARL;ZZE122..GLS;ZZE120,121..GLE,GLS,RS,RT,STD200408-200707

55933ACLAMP, HEATER CONTROL CABLE

main55933-52010×2iZZE120,121,122200208-200408

8301

8302

87284RESISTOR SUB-ASSY, VARIABLE

main88032-12190iZZE122..ARL200310-200408

9356054012

main93560-54012

9356855014

main93568-55014

14 parts on this diagram · 4 diagrams in section
