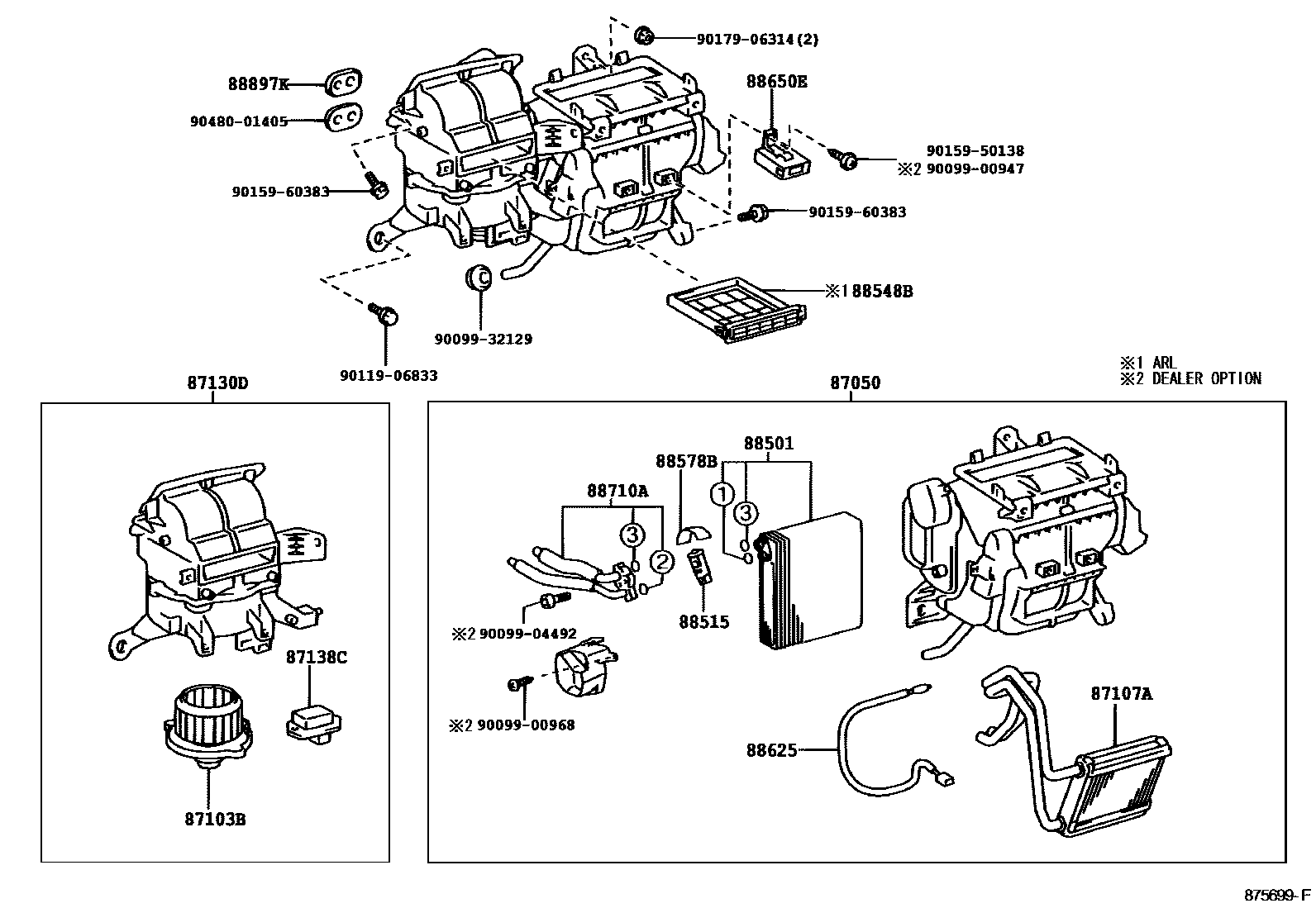

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02380iZZE120,121,122..SA200208-200408

MANUAL AIR CONDITIONER

main87050-02390iZZE122..ARL200303-200408

main87050-02400iZZE123200210-200408

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02060iZZE12#200208-200408

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02160iZZE12#200208-200408

87130DBLOWER ASSY

main87130-02060iZZE122..ARL;ZZE122..GLS;ZZE120,121..GLE,GLS,RS,RT,STD200408-200707

main87130-02160iZZE123200210-200408

87138CRESISTOR, BLOWER

main87138-20350iZZE120,121,122200208-200408

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02140iZZE122..ARL200303-200408

main88501-02160iZZE123;ZZE120,121,122..SA200208-200408

88515VALVE, COOLER EXPANSION

main88515-28160iZZE122..ARL200310-200408

main88515-48040iZZE122..ARL200303-200310

88548BCASE, AIR FILTER

main88548-52010iZZE122,123..ARL200303-200304

88578BPACKING, COOLING UNIT, NO.1

main88578-12520iZZE123;ZZE120,121,122..SA200411-200707

88625THERMISTOR, COOLER, NO.1

main88625-60140iZZE12#200208-200408

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-1E420iZZE120,121,122..SA200208-200408

88710ATUBE ASSY, AIR CONDITIONER

main88710-02460iZZE123;ZZE120,121,122..SA200208-200408

main88710-02510iZZE122..ARL200303-200408

88897KGROMMET, (FOR COOLER PIPE)

main88897-12240iZZE122..ARL200310-200408

main90480-01434iZZE122..ARL200303-200310

main90950-01559iZZE120..STD;ZZE122..ARL200408-200707

MANUAL AIR CONDITIONER & W/O(COOLER)

9009900947

main90099-00947

9009900968

main90099-00968

9009904492

main90099-04492

9009932129

main90099-32129

9011906833

main90119-06833

9015950138

main90159-50138

9015960383

main90159-60383

9017906314

main90179-06314

9048001405

main90480-01405

22 parts on this diagram · 3 diagrams in section
