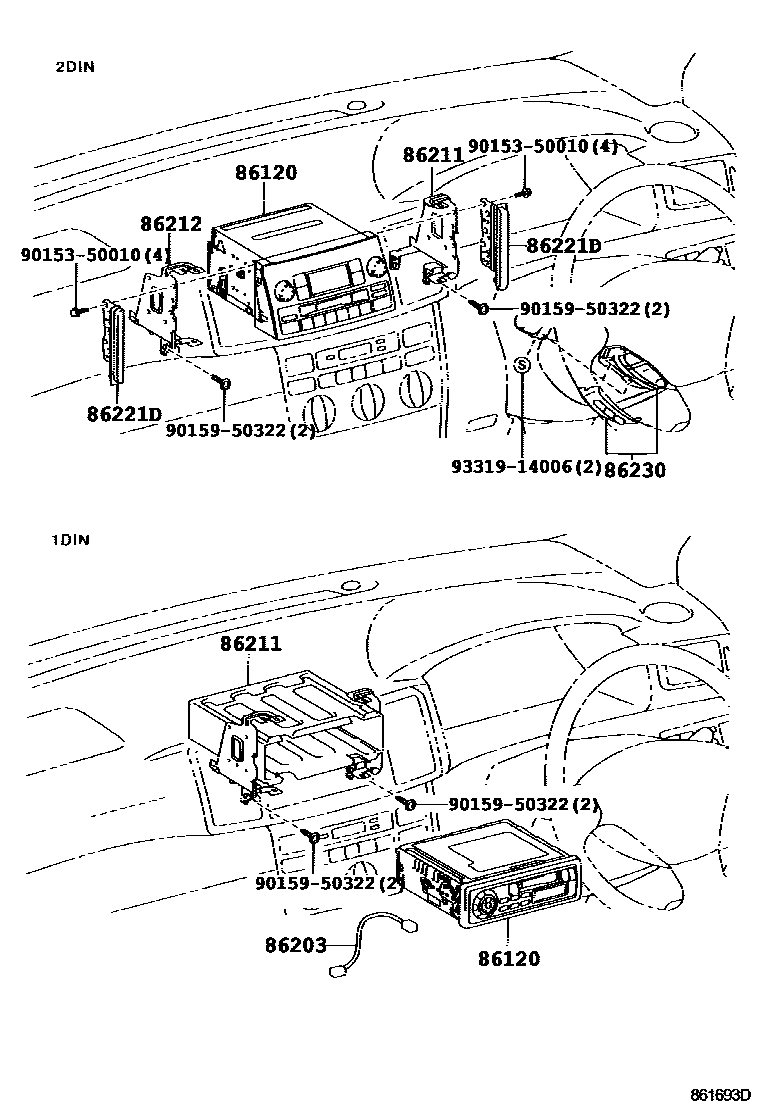

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-02260iZZE120,121,122..4D..SA200308-200408

MATSUSHITA,ID=W58802,TYPE A:REFER TO ILLUSTRATION

main86120-02290iZZE120;ZZE121..4D..STD200208-200311

PANASONIC,TYPE B:REFER TO ILLUSTRATION

main86120-02380iZZE120,121..GLE,RT200408-200707

MATSUSHITA,ID=W58814,TYPE C:REFER TO ILLUSTRATION

main86120-02390iZZE122,123..SA;ZZE120,121..GLS,GSX,RS,RX200408-200707

MATSUSHITA,ID=W58815,TYPE D:REFER TO ILLUSTRATION

main86120-1A180iZZE120,121,122..4D..SA200208-200308

MATSUSHITA,ID=58807,TYPE A:REFER TO ILLUSTRATION

86203WIRE, RADIO

main86203-02040iZZE120..RT,STD;ZZE121..4D..STD200208-200311

86211BRACKET, RADIO, NO.1

main86211-02140iZZE12#200402-200408

main86211-02150iZZE120..STD200408-200707

1DIN

main86211-12370iZZE122,123..ARL200303-200402

SAVP PART

86212BRACKET, RADIO, NO.2

main86212-02150iZZE12#200402-200408

main86212-12350iZZE12#200208-200402

SAVP PART

86221DPANEL, RADIO RECEIVER

main86221-52050iZZE122,123..ARL200303-200408

LH

main86221-52060iZZE122,123..ARL200303-200408

RH

86230CONTROLLER ASSY, STEREO COMPONENT

main86230-13010iZZE122,123..SA;ZZE120,121..GLS,GSX,RS,RX200408-200707

9015350010

main90153-50010

9015950322

main90159-50322

9331914006

main93319-14006

9 parts on this diagram · 3 diagrams in section
