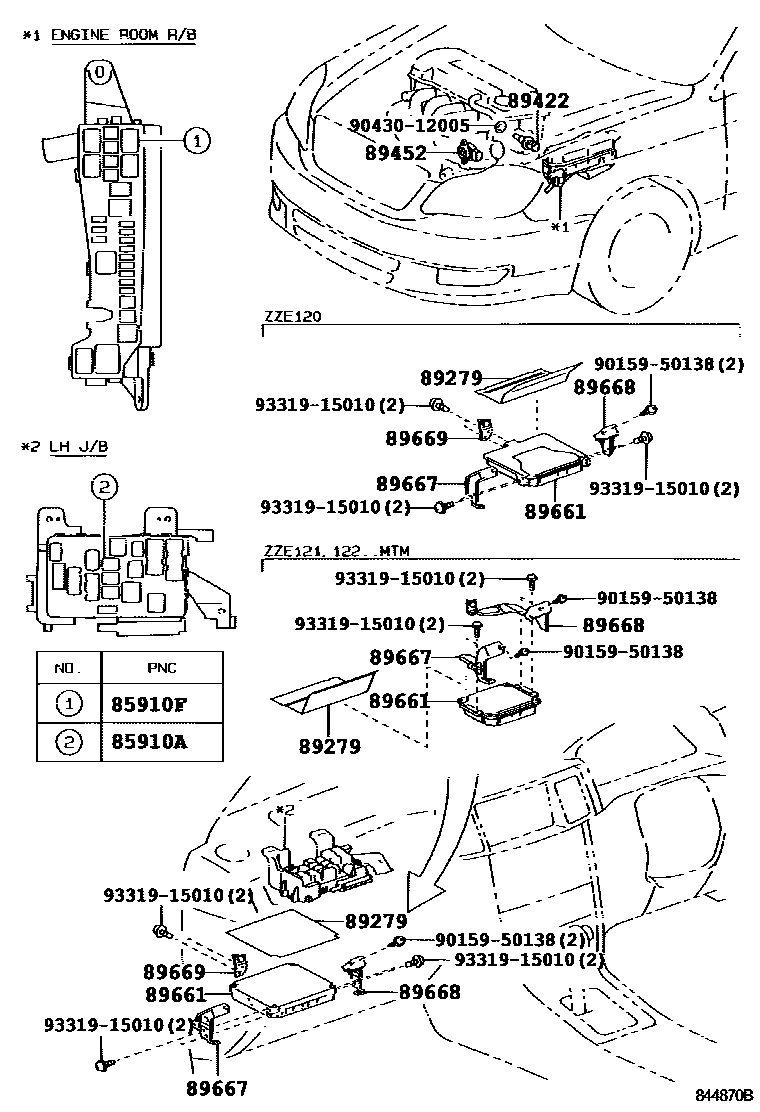

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
P/N LABEL=9008087008
85910FRELAY, COMPUTER (FOR EFI)
P/N LABEL=9008087008
89279COVER, ENGINE CONTROL COMPUTER
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
(L)
(J)
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9015950138
main90159-50138
9043012005
main90430-12005
9331915010
main93319-15010
12 parts on this diagram · 1 diagram in section
