WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1DOOR,ROOF & FLOOR 0006 1DOOR,ROOF & FLOOR 0007 1CLAMP & BRACKET 0008 1CABLE BOND 0009 1CONNECTOR

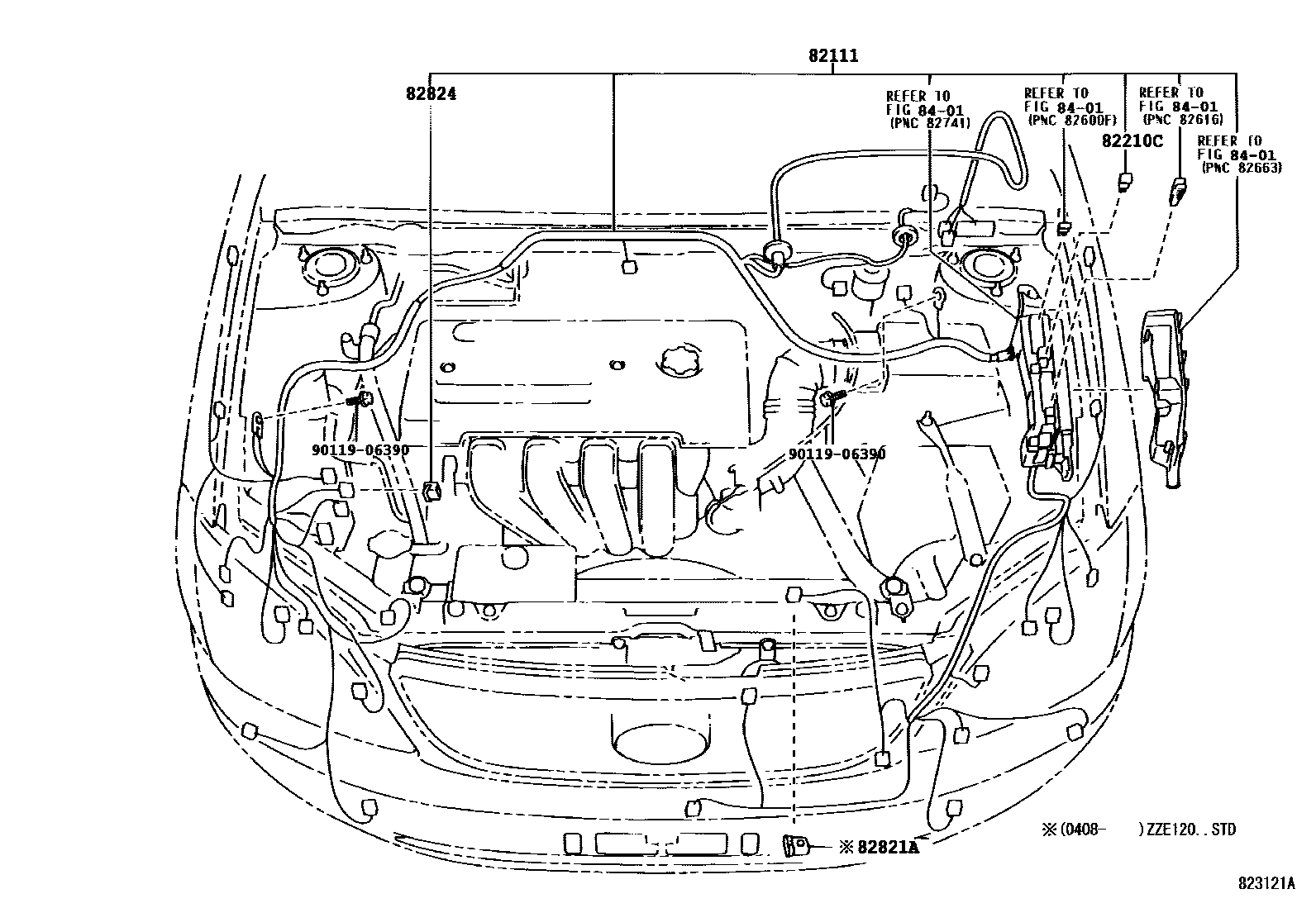

82111WIRE, ENGINE ROOM MAIN

main82111-02L10iZZE122..5D..ARL200408-200506

main82111-02R40iZZE123..ARL200408-200510

main82111-02R50iZZE123..SA200408-200707

main82111-02R60iZZE122..4D..STD200408-200506

main82111-02R70iZZE120,121..GLE,STD200408-200504

main82111-02R80iZZE120,121,122..GLS200408-200504

main82111-02R81iZZE120,121,122..4D..SA..(GLE,GLS,STD)200504-200707

main82111-02R90iZZE121,122..GSX200408-200707

main82111-02S10iZZE120..RT200408-200504

main82111-02S20iZZE120..RT200504-200707

main82111-02S30iZZE121,122..SA..(RX,STD)200408-200707

main82111-0Z010iZZE122..ARL200303-200311

main82111-0Z011iZZE122..ARL200311-200408

main82111-0Z030iZZE123..ARL200303-200408

main82111-0Z040iZZE120,121;ZZE122..MTM200208-200209

main82111-0Z041iZZE120,121;ZZE122..MTM..SA200209-200311

main82111-0Z042iZZE120,121;ZZE122..MTM..SA200311-200408

main82111-0Z060iZZE122..ATM;ZZE120,121..STD200208-200209

W(ABS)

main82111-0Z061iZZE120,121..STD;ZZE122..ATM..SA200209-200408

W(ABS)

main82111-0Z070iZZE121,122..MTM200208-200209

W(ABS & FOG LAMP)

main82111-0Z071iZZE121,122..MTM..SA200209-200408

W(ABS & FOG LAMP)

main82111-0Z081iZZE123..SA200210-200408

82210CFUSIBLE LINK

main90982-08246iZZE120,121;ZZE122..ARL;ZZE122..MTM..SA200208-200408

100A,TERM.:MALE,BLUE

main90982-08283iZZE120,121,122..SA200208-200408

30A,TERM.:FEMALE,PNK

main90982-08284iZZE120,121,122..SA200208-200408

40A,TERM.:FEMALE,GRN

82821ACOVER, CONNECTOR

main82821-10050iZZE120..STD200408-200707

82824CONNECTOR, WIRING HARNESS

main82824-12300iZZE123;ZZE120,121,122..SA..STD200209-200408

SAVP PART

8401

9011906390

main90119-06390

6 parts on this diagram · 9 diagrams in section
