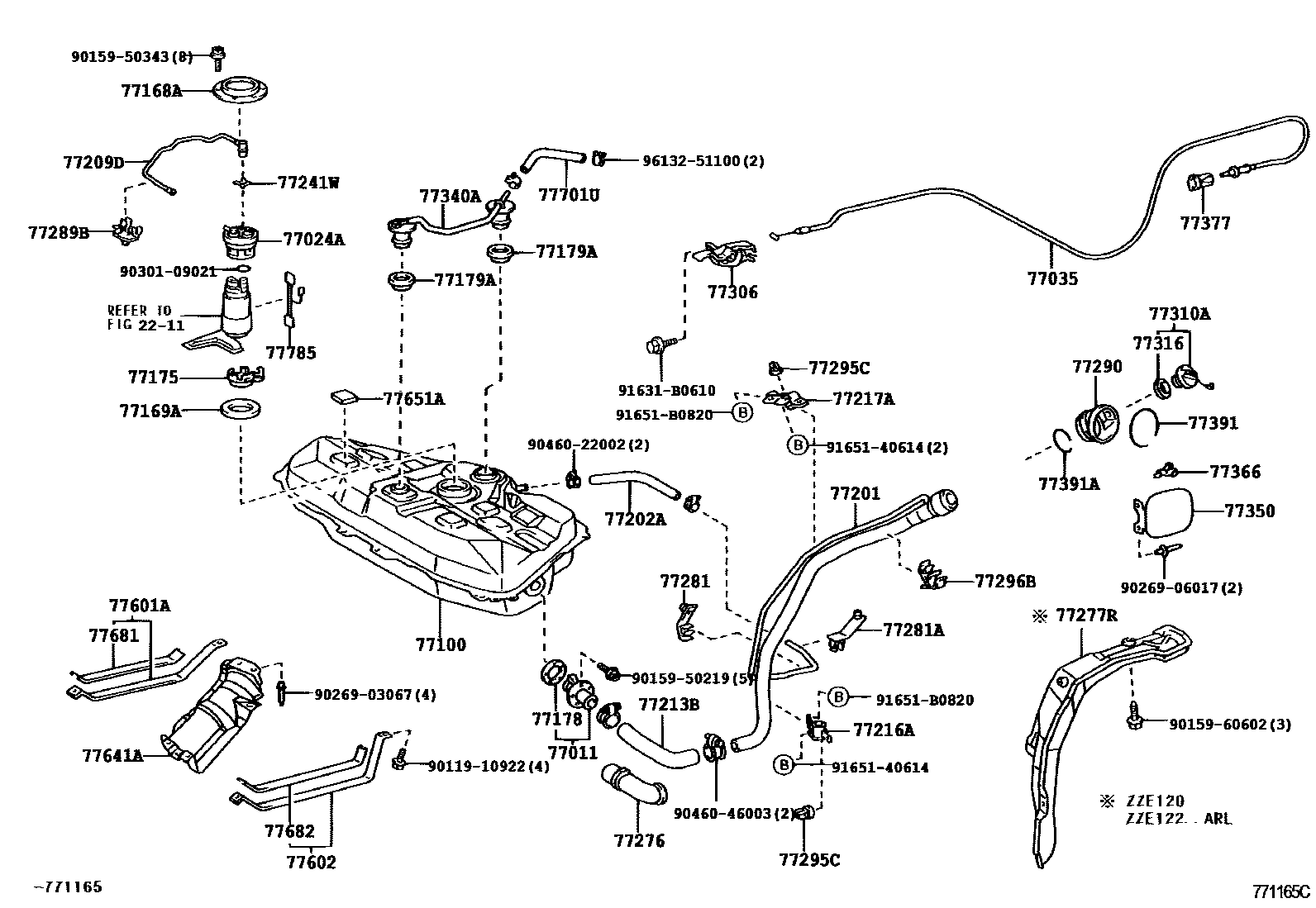

FUEL TANK & TUBE
2211
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=340
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
SAVP PART
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
SAVP PART
77241WCLIP, TUBE JOINT
77276PROTECTOR, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
SAVP PART
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77289BCLAMP, FUEL TUBE, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77295CGROMMET, FUEL TUBE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
SAVP PART
77602CASE SUB-ASSY, FUEL TANK, UPPER
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
SAVP PART
77682SEAT, FUEL TANK BAND, LH
SAVP PART
77701UHOSE, FUEL (FOR CHECK VALVE)
77785HARNESS, FUEL PUMP
9011910922
main90119-10922
9015950219
main90159-50219
9015950343
main90159-50343
9015960602
main90159-60602
9026903067
main90269-03067
9026906017
main90269-06017
9030109021
main90301-09021
9046022002
main90460-22002
9046046003
main90460-46003
91631B0610
main91631-B0610
9165140614
main91651-40614
91651B0820
main91651-B0820
9613251100
main96132-51100
55 parts on this diagram · 2 diagrams in section
