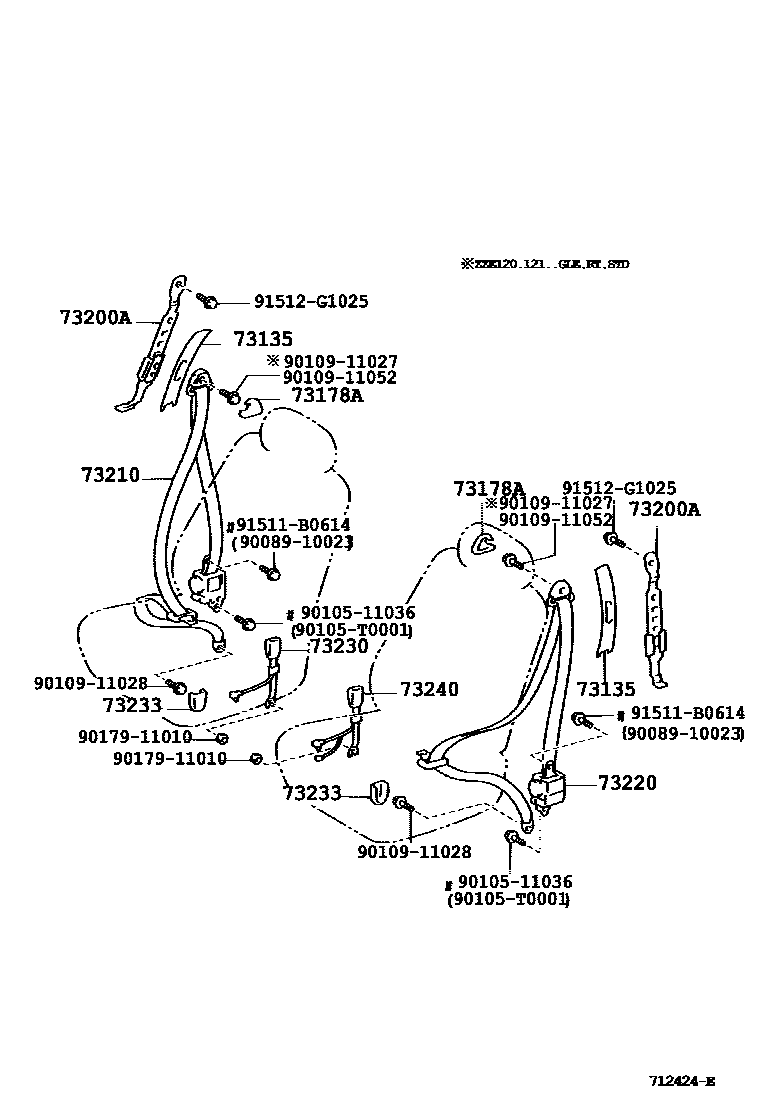

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR 0003 1REAR

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-12030-A0iZZE122..ARL;ZZE121,123..STD;ZZE122..MTM..SA200208-200408

IVORY,TRIM0#

sub73135-12030

main73135-12030-B9iZZE122..SA;ZZE122..5D;ZZE120,121,123200208-200707

LT.GRAY,TRIM1#

sub73135-12030

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-A1iZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA200208-200408

IVORY,TRIM0#

sub73178-33020

main73178-33020-B3iZZE120,121..GLE,RT,STD200208-200707

LT.GRAY,TRIM1#

sub73178-33020

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52040-A0iZZE122..ARL;ZZE121,123..STD;ZZE122..MTM..SA200208-200408

IVORY,TRIM0#

main73200-52040-B0iZZE122..SA;ZZE122..5D;ZZE120,121,123200208-200707

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02250-C0iZZE120,121;ZZE122..MTM..SA200308-200504

BLACK,TRIM1#

main73210-12A00-C0iZZE120,121;ZZE122..MTM..SA200304-200308

BLACK,TRIM1#

main73210-1A221-A0iZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA200208-200304

IVORY,TRIM0#

sub73210-1A222

main73210-1A221-C0iZZE12#..SA..STD200208-200304

W(PRETENSIONER SEAT BELT),BLACK,TRIM1#

sub73210-1A222

main73210-1A221-C0iZZE122,123..5D..ARL200303-200304

BLACK,TRIM1#

sub73210-1A222

main73210-1A330-C0iZZE121,122..MTM..SA200208-200304

BLACK,TRIM1#

sub73210-1A331

main73210-1A330-C0iZZE121,122..MTM..SA200208-200304

BLACK,TRIM0#,1#

sub73210-1A331

main73210-1A360-A0iZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA200304-200408

W(PRETENSIONER SEAT BELT),IVORY,TRIM0#

sub73210-1A360

main73210-1A360-C0iZZE122..SA;ZZE122..5D;ZZE120,121,123..STD200304-200408

W(PRETENSIONER SEAT BELT),BLACK,TRIM1#

sub73210-1A360

main73210-1A360-C0iZZE122,123;ZZE120,121..GLS,GSX,RS,RX200408-200707

BLACK,TRIM1#

sub73210-1A360

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02200-C0iZZE120,121;ZZE122..MTM..SA200308-200504

BLACK,TRIM1#

main73220-12A00-C0iZZE120,121;ZZE122..MTM..SA200304-200308

BLACK,TRIM1#

main73220-1A121-A0iZZE121,123..STD;ZZE122..MTM..SA200208-200304

IVORY,TRIM0#

sub73220-1A122

main73220-1A121-C0iZZE122..5D200303-200304

BLACK,TRIM1#

sub73220-1A122

main73220-1A121-C0iZZE121,122,123..MTM..SA200208-200304

SEAT = TYPE A-*104,BLACK,TRIM1#

sub73220-1A122

main73220-1A121-C0iZZE122..5D200303-200304

W(PRETENSIONER SEAT BELT),BLACK,TRIM1#

sub73220-1A122

main73220-1A141-A0iZZE122..4D..ARL200303-200304

IVORY,TRIM0#

sub73220-1A142

main73220-1A141-C0iZZE122..5D200303-200304

BLACK,TRIM1#

sub73220-1A142

main73220-1A141-C0iZZE120,121..STD;ZZE122..ATM..SA200208-200304

W(PRETENSIONER SEAT BELT),BLACK,TRIM1#

sub73220-1A142

main73220-1A190-C0iZZE121,122..MTM..SA200208-200304

BLACK,TRIM1#

sub73220-1A191

main73220-1A190-C0iZZE121,122..MTM..SA200208-200304

BLACK,TRIM0#,1#

sub73220-1A191

main73220-1A240-A0iZZE122..4D..ARL200304-200408

W(PRETENSIONER SEAT BELT),IVORY,TRIM0#

sub73220-1A240

main73220-1A240-C0iZZE122..5D;ZZE122..ATM..SA;ZZE120,121..STD200304-200408

W(PRETENSIONER SEAT BELT) & W/O(SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#

sub73220-1A240

main73220-1A240-C0iZZE122..ARL200408-200506

W(PRETENSIONER SEAT BELT),BLACK,TRIM1#

sub73220-1A240

main73220-1A250-A0iZZE121,123..STD;ZZE122..MTM..SA200304-200408

W(PRETENSIONER SEAT BELT),IVORY,TRIM0#

sub73220-1A250

main73220-1A250-C0iZZE120,121..GLE,RT,STD200504-200707

BLACK,TRIM1#

sub73220-1A250

main73220-1A250-C0iZZE123;ZZE122..SA;ZZE122..5D..ARL;ZZE120,121..GLS,GSX,RS,RX200408-200707

W(*80;DRIVER SIDE & PASSENGER SIDE);W(PRETENSIONER SEAT BELT),BLACK,TRIM1#

sub73220-1A250

main73220-1A250-C0iZZE122..5D;ZZE121,123..STD;ZZE122..MTM..SA200304-200408

W(PRETENSIONER SEAT BELT),BLACK,TRIM1#

sub73220-1A250

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02290-B0iZZE120,121..GLE,RT,STD200308-200504

DK.GRAY,TRIM1#

main73230-12670-A0iZZE121..5D;ZZE123..ARL;ZZE122..4D..ARL200210-200304

IVORY,TRIM0#

sub73230-12670

main73230-12670-A0iZZE121..4D..STD;ZZE122,123..MTM..SA200208-200304

W(SEAT BELT WARNING FOR PASSENGER SEAT),IVORY,TRIM0#

sub73230-12670

main73230-12670-B0iZZE122,123..5D..ARL200303-200304

DK.GRAY,TRIM1#

sub73230-12670

main73230-12670-B0iZZE12#..SA..STD200208-200304

W(SEAT BELT WARNING FOR PASSENGER SEAT),DK.GRAY,TRIM1#

sub73230-12670

main73230-12690-A0iZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA200304-200408

W(SEAT BELT WARNING SWITCH),IVORY,TRIM0#

sub73230-12690

main73230-12690-B0iZZE122..SA;ZZE122..5D;ZZE120,121,123..STD200304-200707

W(SEAT BELT WARNING SWITCH),DK.GRAY,TRIM1#

sub73230-12690

main73230-12690-B0iZZE120,121..GLE,RT,STD200504-200707

DK.GRAY,TRIM1#

sub73230-12690

main73230-12710-B0iZZE120,121;ZZE122..MTM..SA200304-200308

DK.GRAY,TRIM1#

sub73230-12710

main73230-32280-B4iZZE120,121;ZZE122..MTM..SA200208-200304

DK.GRAY,TRIM1#

sub73230-32280

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-A1iZZE122..4D..ARL200208-200408

IVORY,TRIM0#

sub73233-33010

main73233-33010-B8iZZE122..ATM..SA200208-200707

DK.GRAY,TRIM1#

sub73233-33010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02290-B0iZZE120,121..GLE,RT,STD200308-200504

DK.GRAY,TRIM1#

main73230-12681-A0iZZE121,123..STD;ZZE122..MTM..SA200208-200304

IVORY,TRIM0#

sub73230-12681

main73230-12681-B0iZZE122..5D;ZZE121,123..STD;ZZE122..MTM..SA200208-200304

W(SEAT BELT WARNING FOR PASSENGER SEAT),DK.GRAY,TRIM1#

sub73230-12681

main73230-12700-A0iZZE121,123..STD;ZZE122..MTM..SA200304-200408

W(SEAT BELT WARNING SWITCH),IVORY,TRIM0#

sub73230-12700

main73230-12700-B0iZZE120,121..GLE,RT,STD200504-200707

DK.GRAY,TRIM1#

sub73230-12700

main73230-12700-B0iZZE122..5D;ZZE121,123..STD;ZZE122..MTM..SA200304-200707

W(SEAT BELT WARNING SWITCH),DK.GRAY,TRIM1#

sub73230-12700

main73230-12710-A0iZZE122..4D..ARL200304-200408

IVORY,TRIM0#

sub73230-12710

main73230-12710-B0iZZE121..4D;ZZE120,122..MTM..SA200304-200506

DK.GRAY,TRIM1#

sub73230-12710

main73230-12710-B0iZZE120,121..STD200308-200408

W(SRS AIR BAG),DK.GRAY,TRIM1#

sub73230-12710

main73230-32280-A0iZZE122..4D..ARL200303-200304

IVORY,TRIM0#

sub73230-32280

main73230-32280-B4iZZE120,121,122..SA200208-200304

DK.GRAY,TRIM1#

sub73230-32280

9008910023

main90089-10023

9010511036

main90105-11036

90105T0001

main90105-T0001

9010911027

main90109-11027

9010911028

main90109-11028

9010911052

main90109-11052

9017911010

main90179-11010

91511B0614

main91511-B0614

91512G1025

main91512-G1025

17 parts on this diagram · 3 diagrams in section
