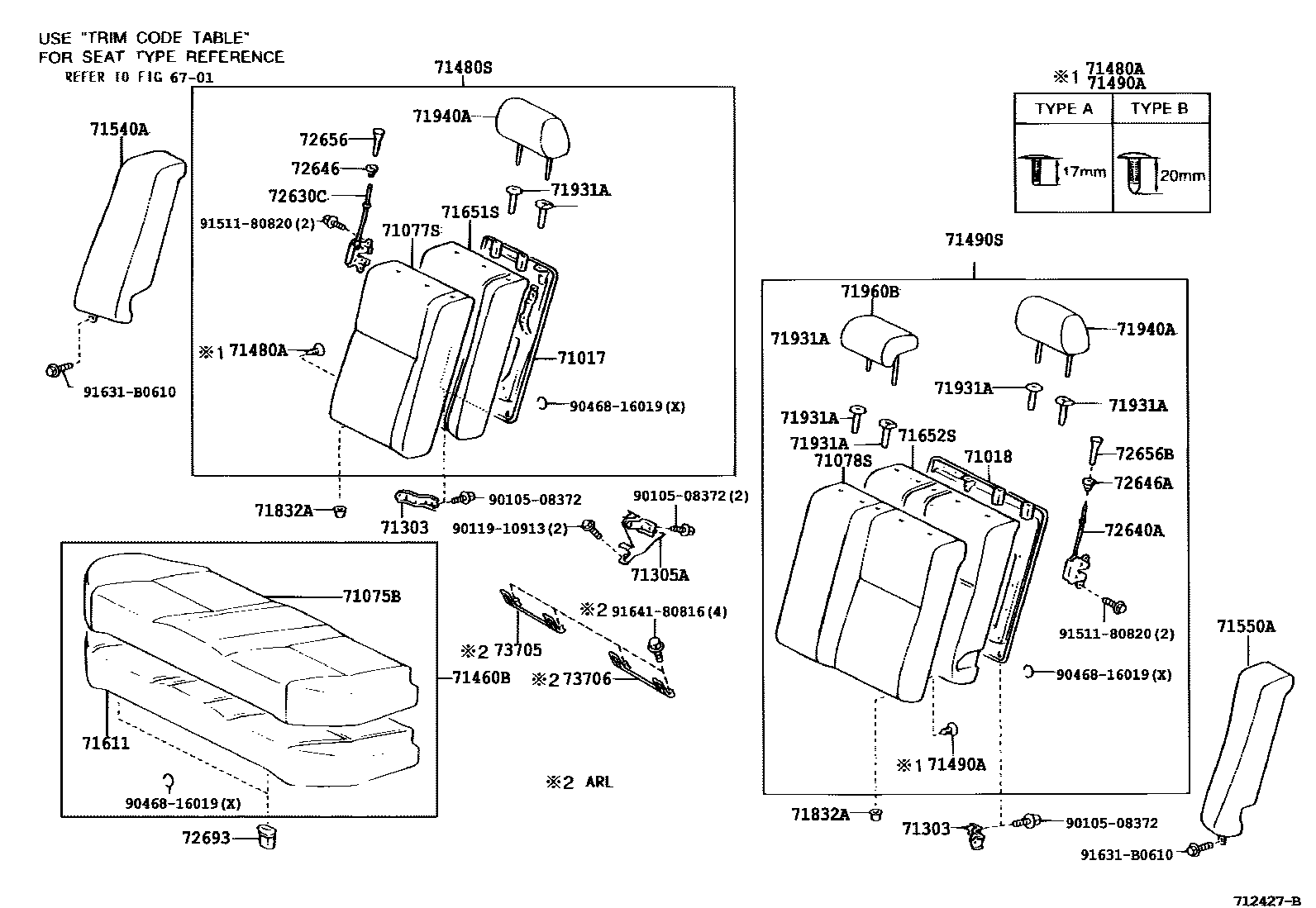

REAR SEAT & SEAT TRACK

0001 1 0002 1

6701

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-02160iZZE120,121,122..4D200408-200707

main71017-02170iZZE12#..5D200408-200707

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-02090iZZE120,121,122..4D200208-200408

main71018-02100iZZE12#..5D200210-200408

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-02600-A0iZZE122..4D..ARL200303-200408

SEAT = TYPE B-*104,IVORY,TRIM0#

main71075-02600-B0iZZE120,121..4D..STD200208-200408

SEAT = TYPE B-*104,DARK GRAY,TRIM1#

main71075-02610-B1iZZE120,121,122..4D200208-200212

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71075-02620-A1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71075-02620-B1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,DARK GRAY,TRIM1#

main71075-02620-B2iZZE121,122..GSX200408-200707

MD.GRAY,TRIM1#

main71075-02890iZZE120,121,122..4D..SA200308-200408

main71075-02A80-B0iZZE120,122..4D..STD200408-200707

MD.GRAY,TRIM1#

main71075-02B00-B0iZZE120,121,122..GLE,GLS200408-200707

MD.GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-02430-B0iZZE120,121..5D200210-200408

DARK GRAY,TRIM1#

main71077-02660-B0iZZE120,121..4D..STD200208-200408

DARK GRAY,TRIM1#

main71077-02670-B1iZZE120,121,122..4D200208-200212

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71077-02670-B2×2iZZE120,121,122..4D..SA200212-200308

DK.GRAY,TRIM10

main71077-02680-A1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71077-02680-B1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,DARK GRAY,TRIM1#

main71077-02680-B2iZZE121,122..GSX200408-200707

MD.GRAY,TRIM1#

main71077-02690-A0iZZE122..5D200303-200408

IVORY,TRIM0#

main71077-02690-B0iZZE122..5D200303-200408

DARK GRAY,TRIM10

main71077-02690-B1iZZE122..5D200303-200408

DK.GRAY,TRIM10

main71077-02700-A1iZZE122..5D200303-200408

SEAT = TYPE C-*104,IVORY,TRIM0#

main71077-02700-B4iZZE122..5D200303-200408

SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71077-02720-A1iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71077-02720-B1iZZE123..ARL200408-200510

DARK GRAY,TRIM1#

main71077-02760-A0iZZE122..4D..ARL200303-200408

SEAT = TYPE B-*104,IVORY,TRIM0#

main71077-02760-B0iZZE122..4D..ARL200303-200408

DARK GRAY,TRIM1#

main71077-02B10-B0iZZE120,121,122..4D..SA200308-200408

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71077-02C30-B0iZZE120..STD200408-200707

MD.GRAY,TRIM1#

main71077-02C40-B0iZZE122..4D..STD200408-200506

MD.GRAY,TRIM1#

main71077-02C50-B0iZZE120,121,122..GLE,GLS200408-200707

MD.GRAY,TRIM1#

main71077-02C60-B0iZZE122..5D..ARL200408-200506

DK.GRAY,TRIM1#

main71077-02C70-B0iZZE121,122,123..SA..(RX,STD)200408-200707

DARK GRAY,TRIM1#

main71077-02C80-B0iZZE122..5D..ARL200408-200506

W(*80,DRIVER SIDE & PASSENGER SIDE) E-TYPE,DK.GRAY,TRIM1#

main71077-02D00-B0iZZE120,121..RS,RT200408-200707

DK.GRAY,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-02260-B0iZZE120,121..5D200210-200408

SEAT = TYPE D-*104,DARK GRAY,TRIM1#

main71078-02440-B0iZZE120,121..4D..STD200208-200408

DARK GRAY,TRIM1#

main71078-02450-B1×2iZZE120,121,122..4D..SA200212-200308

DARK GRAY,TRIM10

main71078-02450-B2×2iZZE120,121,122..4D..SA200212-200308

DK.GRAY,TRIM10

main71078-02460-A1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71078-02460-B1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,DARK GRAY,TRIM1#

main71078-02460-B2iZZE121,122..GSX200408-200707

MD.GRAY,TRIM1#

main71078-02470-A0iZZE122..5D200303-200408

SEAT = TYPE B-*104,IVORY,TRIM0#

main71078-02470-B0iZZE122..5D200303-200408

SEAT = TYPE B-*104,DARK GRAY,TRIM1#

main71078-02480-A0iZZE122..5D200303-200408

SEAT = TYPE C-*104,IVORY,TRIM0#

main71078-02480-B4iZZE122..5D200303-200408

SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71078-02500-A1iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71078-02500-B1iZZE123..ARL200408-200510

DARK GRAY,TRIM1#

main71078-02540-A0iZZE122..4D..ARL200303-200408

SEAT = TYPE B-*104,IVORY,TRIM0#

main71078-02540-B0iZZE122..4D..ARL200303-200408

DARK GRAY,TRIM1#

main71078-02710-B0iZZE120,121,122..4D..SA200308-200408

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71078-02790-B0iZZE120..STD200408-200707

MD.GRAY,TRIM1#

main71078-02810-B0iZZE120,121,122..GLE,GLS200408-200707

MD.GRAY,TRIM1#

main71078-02830-B0iZZE122..4D..STD200408-200506

MD.GRAY,TRIM1#

main71078-02840-B0iZZE122..5D..ARL200408-200506

DK.GRAY,TRIM1#

main71078-02850-B0iZZE121,122,123..SA..(RX,STD)200408-200707

DARK GRAY,TRIM1#

main71078-02860-B0iZZE122..5D..ARL200408-200506

W(*80,DRIVER SIDE & PASSENGER SIDE) E-TYPE,DK.GRAY,TRIM1#

main71078-02870-B0iZZE120,121..RS,RT200408-200707

DK.GRAY,TRIM1#

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-33010×2iZZE120,121,122..4D200208-200408

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-12170iZZE120,121,122..4D200408-200707

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-02600-A1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71460-02600-B1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71460-02610-B1iZZE120,121,122..4D200208-200212

SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71460-02620-A0iZZE122..4D..ARL200303-200408

SEAT = TYPE B-*104,IVORY,TRIM0#

main71460-02620-B0iZZE120,121..4D..STD200208-200408

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71460-02A50-B0iZZE120,121,122..4D..SA200308-200408

SEAT = TYPE C-*104,DAQRK GRAY,TRIM1#

71480ACLIP (FOR REAR SEATBACK)

main90467-06048-C0×8iZZE12#200408-200707

BLACK,TYPE A:REFER ILLUST.

main90467-06048-P1×8iZZE120,121,122..4D..SA200208-200408

TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1#

main90467-07080-C0×2iZZE121,123..STD;ZZE122..MTM..SA200208-200408

TYPE B:REFER TO ILLUSTRATION,GRAPHITE,TRIM0#,1#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-02630-A1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71480-02630-B1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71480-02640-B0iZZE120,121..4D..STD200208-200408

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71480-02650-B1iZZE120,121,122..4D200208-200212

SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71480-02650-B2iZZE120,121,122..4D..SA200212-200308

***,SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71480-02660-B0iZZE122..5D200303-200408

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71480-02670-B3iZZE122..5D200303-200408

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71480-02690-A0iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71480-02690-B0iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71480-02780-A0iZZE122..4D..ARL200303-200408

SEAT = TYPE B-*104,IVORY,TRIM0#

main71480-02C10-B0iZZE120,121,122..4D..SA200308-200408

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71480-0Z010-B0iZZE120,121..5D200210-200408

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

71490ACLIP, REAR SEATBACK, LH

main90467-06048-C0×8iZZE12#200408-200707

BLACK,TYPE A:REFER ILLUST.

main90467-06048-P1×8iZZE121,123..STD;ZZE122..4D..MTM..SA..STD200208-200308

TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1#

main90467-07080-C0×2iZZE120;ZZE122..5D;ZZE121,122..ATM..SA200208-200408

TYPE B:REFER TO ILLUSTRATION,GRAPHITE,TRIM1#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-02410-A1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71490-02410-B1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71490-02420-B0iZZE120,121..4D..STD200208-200408

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71490-02430-B1iZZE120,121,122..4D..SA200212-200308

SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71490-02440-B0iZZE122..5D200303-200408

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71490-02470-A1iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71490-02470-B1iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71490-02540-A0iZZE122..4D..ARL200303-200408

SEAT = TYPE B-*104,IVORY,TRIM0#

main71490-02660-B1iZZE122..5D200303-200408

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71490-02670-B0iZZE120,121..5D200210-200408

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

main71490-02890-B0iZZE120,121,122..4D..SA200308-200408

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-02200-A0iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71540-02200-B0iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71540-02200-B1iZZE121,122..GSX200408-200707

MD.GRAY,TRIM1#

main71540-02220-A0iZZE122..4D..ARL200303-200408

SEAT = TYPE B-*104,IVORY,TRIM0#

main71540-02220-B0iZZE120,121..4D..STD200208-200408

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71540-02220-B1iZZE120,122..4D..STD200408-200707

MD.GRAY,TRIM1#

main71540-02230iZZE120,121..5D200210-200303

main71540-02230-B0iZZE121,122..5D200210-200408

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

main71540-02230-B1iZZE122..5D..ARL;ZZE120,121..RS,RT200408-200707

DK.GRAY,TRIM1#

main71540-02260-A0iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71540-02260-B0iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71540-02260-B1iZZE122..SA..STD;ZZE121,123..RX,STD200408-200707

DARK GRAY,TRIM1#

main71540-02430-B0iZZE120,121,122..4D..SA200308-200408

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71540-02430-B1iZZE120,121,122..GLE,GLS200408-200707

MD.GRAY,TRIM1#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-02200-A0iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71550-02200-B0iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71550-02200-B1iZZE121,122..GSX200408-200707

MD.GRAY,TRIM1#

main71550-02210-A0iZZE122..4D..ARL200303-200408

SEAT = TYPE B-*104,IVORY,TRIM0#

main71550-02210-B0iZZE122..SA;ZZE121..GLE200212-200308

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71550-02210-B1iZZE120,122..4D..STD200408-200707

MD.GRAY,TRIM1#

main71550-02220-B1iZZE120,121,122..4D200208-200212

SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71550-02230iZZE120,121..5D200210-200303

main71550-02230-B0iZZE121,122..5D200210-200408

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

main71550-02230-B1iZZE122..5D..ARL;ZZE120,121..RS,RT200408-200707

DK.GRAY,TRIM1#

main71550-02260-A0iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71550-02260-B0iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71550-02260-B1iZZE122..SA..STD;ZZE121,123..RX,STD200408-200707

DARK GRAY,TRIM1#

main71550-02420-B0iZZE120,121,122..4D..SA200308-200408

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71550-02420-B1iZZE120,121,122..GLE,GLS200408-200707

MD.GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71503-02110iZZE120,121,122..4D200208-200408

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-02120iZZE120,121,122..4D200208-200408

main71651-02140iZZE12#..5D200210-200408

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-02130iZZE12#..5D200210-200408

main71652-02140iZZE120,121,122..4D200208-200408

71832ACLIP, REAR SEATBACK CARPET OR MAT

main90467-09156-C0×4iZZE120..STD;ZZE121,122..ATM..SA200208-200408

BLACK,TRIM0#,1#

71931ASUPPORT, REAR SEAT HEADREST

main71930-02080-A0iZZE121,123..5D200210-200408

W(LOCK),IVORY,TRIM0#,CENTER

main71930-02080-B0iZZE120..RT200210-200408

W(LOCK),DK.GRAY,TRIM1#,CENTER

main71931-02060-A0iZZE121,123..5D200210-200408

W/O(LOCK),IVORY,TRIM0#,CENTER

main71931-02060-B0iZZE120..RT200210-200408

W/O(LOCK),DK.GRAY,TRIM1#,CENTER

main71956-02030-A0×2iZZE122..4D..ARL;ZZE121,122..4D..MTM..SA200208-200408

W/O(LOCK),IVORY,TRIM0#

main71956-02030-B0×2iZZE120,121..4D..STD200208-200408

W/O(LOCK),DK.GRAY,TRIM1#

main71956-02030-B1×3iZZE122..4D..STD200408-200506

W/O(LOCK),STONE,TRIM15

main71956-02030-B2×3iZZE122..4D..STD200408-200506

W/O(LOCK),MD.GRAY,TRIM15

main71970-02030-A0×2iZZE121,122,123..5D200210-200408

W(LOCK),IVORY,TRIM0#

main71970-02030-B0×3iZZE120,121,122..4D200208-200408

W(LOCK),DK.GRAY,TRIM1#

main71970-02030-B1×3iZZE120..STD200408-200504

W(LOCK),STONE,TRIM15

main71970-02030-B2×3iZZE122..4D..STD200408-200506

W(LOCK),MD.GRAY,TRIM15

71940AHEADREST ASSY, REAR SEAT

main71940-02320-B0×2iZZE120,121,122..4D200208-200212

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71940-02460-A0×2iZZE122..5D200303-200408

IVORY,TRIM0#

main71940-02460-B0×2iZZE122..5D..ARL;ZZE120,121..RS,RT200408-200707

DARK GRAY,TRIM1#

main71940-02460-B1×2iZZE120,121,122..4D..(GLE,GLS,STD)200408-200707

MD.GRAY,TRIM1#

main71940-02490-A1×2iZZE121,123..STD;ZZE122..MTM..SA200208-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71940-02490-B1×2iZZE122..SA..STD;ZZE121,123..RX,STD200408-200707

DARK GRAY,TRIM1#

main71940-02490-B2×2iZZE121,122..GSX200408-200707

MD.GRAY,TRIM1#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-02130-A0iZZE122..4D..ARL200303-200408

SEAT = TYPE B-*104,IVORY,TRIM0#

main71960-02130-B0iZZE120,121..4D..STD200208-200408

SEAT = TYPE B OR TYPE C-*104,DARK GRAY,TRIM1#

main71960-02130-B1iZZE120,121,122..4D..(GLE,GLS,STD)200408-200707

MD.GRAY,TRIM1#

main71960-02150-A1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71960-02150-B1iZZE121,122..4D..MTM..SA200208-200408

SEAT = TYPE A-*104,DARK GRAY,TRIM1#

main71960-02150-B2iZZE121,122..GSX200408-200707

MD.GRAY,TRIM1#

main71960-02160-B0iZZE120..RT200210-200408

SEAT = TYPE D-*104,DARK GRAY,TRIM1#

main71960-02190-A0iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,IVORY,TRIM0#

main71960-02190-B0iZZE121,123..5D200210-200408

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71960-02220-B0iZZE120,121,122..4D200208-200212

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47010iZZE120,121,122..4D200208-200408

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47010iZZE120,121,122..4D200208-200408

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33010-A0iZZE122..4D..ARL;ZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

main72646-33010-B4iZZE120,121,122..4D..SA200208-200408

DK.GRAY,TRIM1#

main72646-33010-B7iZZE122..4D..STD200408-200506

MD.GRAY,TRIM1#

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-33010-A0iZZE122..4D..ARL;ZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

main72646-33010-B4iZZE120,121,122..4D..SA200208-200408

DK.GRAY,TRIM1#

main72646-33010-B7iZZE120,121,122..GLS,GSX200408-200707

MD.GRAY,TRIM1#

72656BUTTON, REAR SEATBACK STOP RELEASE

main72661-32030-A0iZZE122..4D..ARL;ZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

main72661-32030-B2iZZE120..STD200408-200504

STONE,TRIM15

main72661-32030-B3iZZE120,121,122..4D..SA200208-200408

DK.GRAY,TRIM1#

main72661-32030-B7iZZE120..STD200408-200504

MD.GRAY,TRIM15

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72661-32030-A0iZZE122..4D..ARL;ZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

main72661-32030-B2iZZE122..4D..STD200408-200506

STONE,TRIM15

main72661-32030-B3iZZE120,121,122..4D..SA200208-200408

DK.GRAY,TRIM1#

main72661-32030-B7iZZE120,121,122..GLE,GLS,GSX200408-200707

MD.GRAY,TRIM1#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iZZE120,121,122..4D200208-200408

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-12030iZZE122..4D..STD200408-200506

main73705-13010iZZE12#..5D200210-200408

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-12030iZZE122..4D..ARL200303-200408

main73706-13010iZZE122,123..5D..ARL200408-200510

9010508372

main90105-08372

9011910913

main90119-10913

9046816019

main90468-16019

9151180820

main91511-80820

91631B0610

main91631-B0610

9164180816

main91641-80816

37 parts on this diagram · 2 diagrams in section
