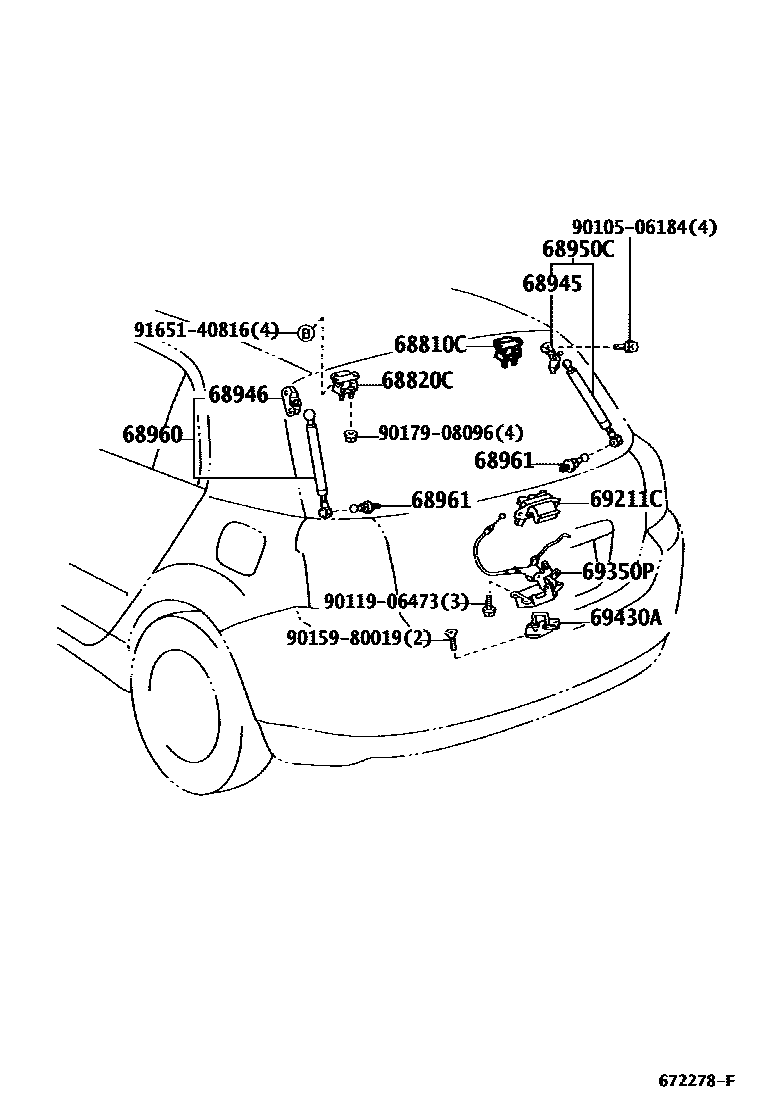

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iZZE12#..5D200210-200408

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iZZE12#..5D200210-200408

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-13050iZZE12#..5D200210-200408

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-13050iZZE12#..5D200210-200408

68950CSTAY ASSY, BACK DOOR, RH

main68950-02070iZZE12#..5D200210-200408

68960STAY ASSY, BACK DOOR, LH

main68960-02060iZZE12#..5D200210-200408

68961BOLT, BACK DOOR STAY

main68961-10030×2iZZE12#..5D200210-200408

69211CHANDLE, BACK DOOR OUTSIDE

main69023-02010iZZE12#..5D200210-200408

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-13300iZZE12#..5D200210-200408

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-52020iZZE12#..5D200210-200408

9010506184

main90105-06184

9011906473

main90119-06473

9015980019

main90159-80019

9017908096

main90179-08096

9165140816

main91651-40816

15 parts on this diagram · 1 diagram in section
