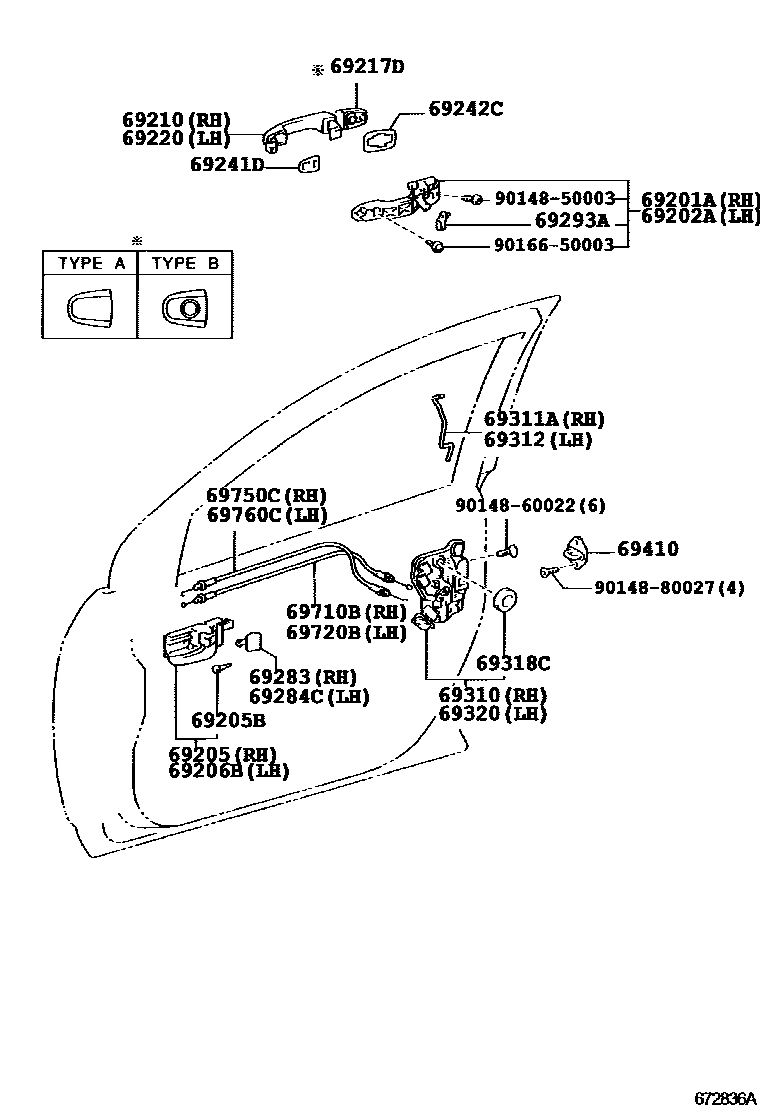

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BLACK,TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION,BLACK
BLACK,TYPE B:REFER TO ILLUSTRATION & W/O(KEY LESS ENTRY)
BLACK,TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION & W/O(KEY LESS ENTRY)
TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY)
TYPE A:REFER TO ILLUSTRATION
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
PAINT REQ.
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
sub69283-30040
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
SAVP PART,RH
SAVP PART,LH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
W(MANUAL DOOR LOCK)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
W(KEY LESS ENTRY & POWER DOOR LOCK)
W(MANUAL DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9016650003
main90166-50003
27 parts on this diagram · 1 diagram in section
